Kicker Q-Class 41L784 L7 Series 8" Subwoofer

Truly Huge Bass

Kicker's updated L7 Series subwoofers are designed for one purpose: to deliver truly huge, supremely accurate bass. The 41L782 8" component subwoofer handles up to 500 watts RMS, so you can count on major-league performance. Its innovative square cone moves much more air than a conventional 8" round cone, and this sub's made to take anything you can dish out. The two 2-ohm voice coils give you extra flexibility in incorporating this sub into your system.

Built-In Toughness

The woofer's forged aluminum frame and Santoprene rubber surround handle high-level playback, while keeping the cone on track. The injection-molded SoloKon™ polypropylene cone features special back bracing for strength and responsiveness. And the UniPlate back plate and pole piece are made as a single, solid unit to allow heat to escape the motor. Translation? Kicker designed this sub to take some serious punishment.

Top of The Line

Kicker Q-Class products incorporate cutting-edge technologies and superb construction to deliver an extraordinary musical experience in your vehicle. These products are only sold by select dealers chosen by Kicker.

To drive this single subwoofer, we recommend a mono amplifier rated between 375 and 750 watts RMS at 1 or 4 ohms.

Product Highlights:

• 8" subwoofer with dual 2-ohm voice coils
• Square SoloKon™ polypropylene cone with Santoprene rubber surround
• Cast aluminum basket
• Power handling: 500 watts RMS (250 watts per voice coil)
• Peak power: 1000 watts
• Frequency response: 28-100 Hz
• Sensitivity: 82.4 dB

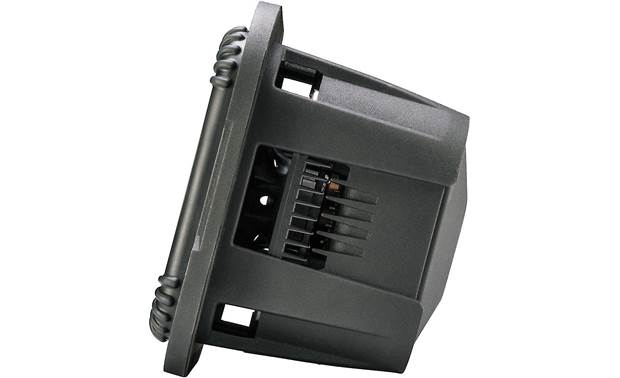

• Mounting depth: 5-7/16"
• Sealed box volume: 0.4-0.75 cubic feet
• Ported box volume: 0.66-1.0 cu. ft.
• Grille not included
• Warranty: 3 years

What's In The Box:

• One 8" Square dual 2-ohm voice coil woofer
• Kicker logo
• 4 Hardware covers
• Owner's manual (English/ Spanish/ German/ French)
• Template

Features:

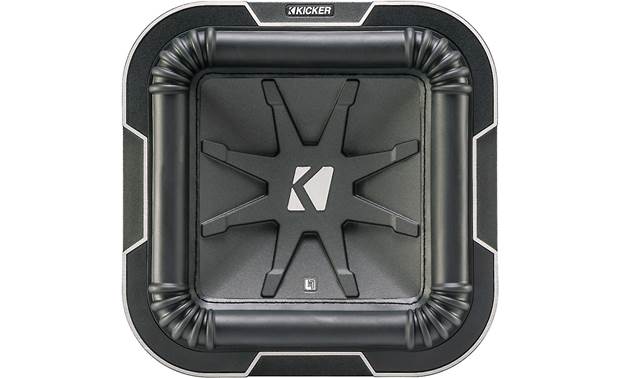

Square Design: By making the cone square, Kicker is giving you the most possible cone area (Sd) for a given size baffle, 16% to 20% more area than a conventional round subwoofer. More cone area means the cone moves more air, resulting in louder, deeper bass.

Dual Voice Coils: For increased system flexibility, the woofer has two 2Ω voice coils. When the voice coils are wired in parallel, the woofer presents a 1Ω load; when wired in series, the woofer presents a 4Ω load.

Terminals: The spring post terminals will accept pin connectors, single banana plugs (but not dual), and bare wire up to 8 gauge.

Break-in Period: Due to the complex nature of Kicker L7 woofers, they require a break-in period in order to produce optimum bass response. The high-performance suspension system makes the speakers very stiff out-of-the-box. Approximately two weeks of daily playing will allow the suspension to break-in and reach its optimum equilibrium. A broken-in subwoofer will exhibit stronger bass performance, smoother response, and greater low-bass extension.

Sealed Enclosure: A sealed enclosure design gives the smoothest response with increased energy at the lowest frequencies (between 20 and 3 0 Hz).

• Minimum Volume: 0.4 ft³

• Maximum Volume: 0.75 ft³

Vented Enclosure: A vented enclosure design increases efficiency relative to sealed enclosures.

• Minimum Volume: 0.66 ft³ with a 1½" x 9½" x 19¼" slot port
• Maximum Volume: 1 ft³ with a 2" x 9½" x 21¼" slot port
