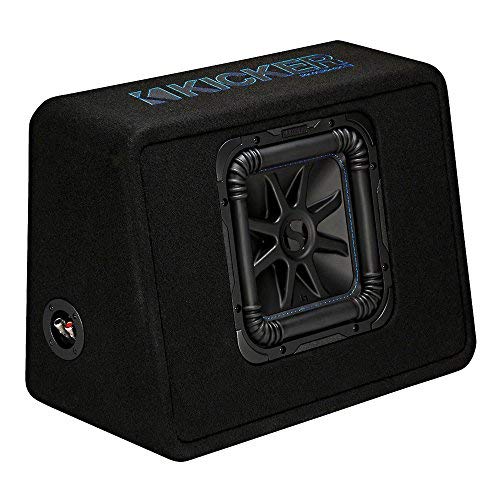

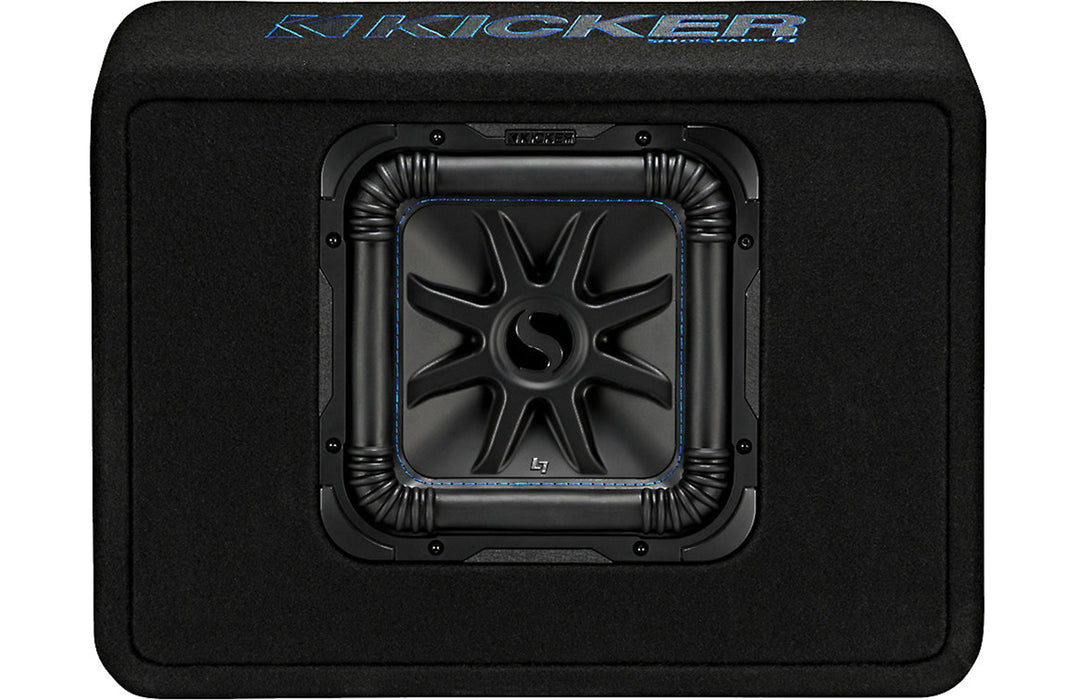

Kicker 44TL7S102 10" 1200W Single Loaded Solo-Baric L7S Subwoofer Enclosure
Kicker 44TL7S102 10" 1200W Single Loaded Solo-Baric L7S Subwoofer Enclosure
Kicker optimized the 44TL7S102 enclosure for their legendary 10" Solo-Baric™ square subwoofer. This 2-ohm sub handles up to 600 watts RMS without breaking a sweat, and its innovative square cone moves much more air than a conventional 10" round cone. Power this enclosure with a nice amp, and you will experience world-shaking bass.
Product Highlights:
- - ported enclosure with one 10" Solo-Baric L7S subwoofer
- - medium-density fiberboard construction covered with carpet
- - 2-ohm impedance
- - handles up to 600 watts RMS (1200 watts peak power)
- - sensitivity: 89.5 dB
- - 21-1/2"W x 15"H x 10"D1 x 6-1/2"D2
- - warranty: 1 year
Innovative Woofer
The woofer's forged aluminum frame and Santoprene™ rubber surround handle high-level playback, while keeping the cone on track. The injection-molded SoloKon™ polypropylene cone features 360-degree, constant-contact back bracing for strength and responsiveness. And the UniPlate™ back plate and pole piece are made as a single, solid unit to allow heat to escape the motor. Translation? Kicker designed this sub to take some serious punishment.
Tough Enclosure
Kicker covers the solid MDF enclosure with black carpeting, along with an embroidered Kicker logo. Heavy internal bracing gives you a solid base for the subwoofer. Rounded corners help the enclosure to fit in tighter spaces. The specially engineered port increases bass response, and the enclosure's 2-ohm impedance allows you to draw maximum power from your amplifier. Strong, innovative, and powerful, Kicker made the 44TL7S102 enclosure to deliver no-holds-barred bass.
What's In The Box:
- - Vented truck-style enclosure loaded with one Solo-Baric 10" square subwoofer
- - 4 Mounting brackets
- - Four 1" Pan head screws
- - Eight 5/8" Flat head screws
- - Owner's manual (English/ Spanish/ German/ French)
- - 2 Kicker stickers
Product Research
Features
Wire Terminal: The subwoofer's dual 4Ω voice coils are internally wired in parallel to present a 2Ω load at the single pair of spring post wire terminals. The terminals are mounted on the left side of the enclosure and will accept pin connectors, single or dual banana plugs, or bare wire up to 10 gauge.
Square Design: By making the Solo-Baric square, Kicker is giving you the most possible cone area (Sd) for a given size baffle, 16% to 20% more area than a conventional round subwoofer. More cone area means the Solo-Baric L7 moves more air, resulting in louder, deeper bass.
Cone Material: The square SoloKon design is a unique one-piece construction, using injection molded polypropylene that moves as a lightweight piston, for improved control. The cone remains rigid, minimizing cone flex and distortion. A rear cone brace integrates into the cone with a continuous contact perimeter weld, which improves strength and resistance to deformation under pressure.
Surround: The tough, flexible Santoprene rubber surround has a long-throw, positive-roll design, which controls extreme cone excursion and is highly tear-resistant. The corners of the surround are ribbed to ensure linear cone motion. The surround is stitched to the reinforced cone edge, making separation between them virtually impossible, even in the harshest conditions.
Subsonic Filter: Kicker recommends using a 24dB/octave subsonic filter at 25 Hz.
