Panamax M5400-PM 11 Outlet Home Theater Power Conditioner

Panamax M5400-PM 11 Outlet Home Theater Power Conditioner

The Panamax M5400-PM 11 AC Outlets delivers high-level protection for your audio/video system. It guards against harmful spikes and maintains outgoing current at a consistent, optimal level, giving you pure, noise-free picture and sound. The 5400-PM can safeguard up to 11 components, and it includes a protected front-panel USB charger for your MP3 player, cell phone or another portable electronic device. The Panamax M5400-PM features 1 front-panel "Always On" AC outlet, 4 rear-panel "Always On" Linear Filtered outlets divided into two separate banks with voltage regulation, 4 rear-panel "Switched" Linear Filtered AC outlets also divided into two separate banks with voltage regulation, and 2 rear-panel "Switched/Delayed High Current" AC outlets.

Product Highlights:

• 11 AC outlets with 5 isolated banks:
• Two isolated banks of two switched outlets
• Two isolated banks of two always-on outlets
• One isolated bank of two switched high-current outlets with delayed on/off
• One front-panel convenience outlet
• Front-panel USB charger
• Voltage regulation circuitry ensures that your system receives a consistent, optimal amount of power
• Surge and over- and under-voltage protection
• Filtration circuitry virtually eliminates line noise
• Three sets of coaxial RF connections for cable/satellite/TV antenna
• Two sets of RJ-45 Ethernet line inputs and outputs, including one front-panel connection
• RJ-11 phone line input and output
• 12-volt trigger input for delayed outlets
• Front-panel digital voltmeter and ammeter
• 2125-joule surge protection
• Maximum current rating: 15 amps
• Dimensions (WxHxD):17"W x 4-1/4"H x 14-1/4"D
• Warranty: 3 years
• Our 30-day money-back guarantee
• MFR # M5400

Controls And Indicators

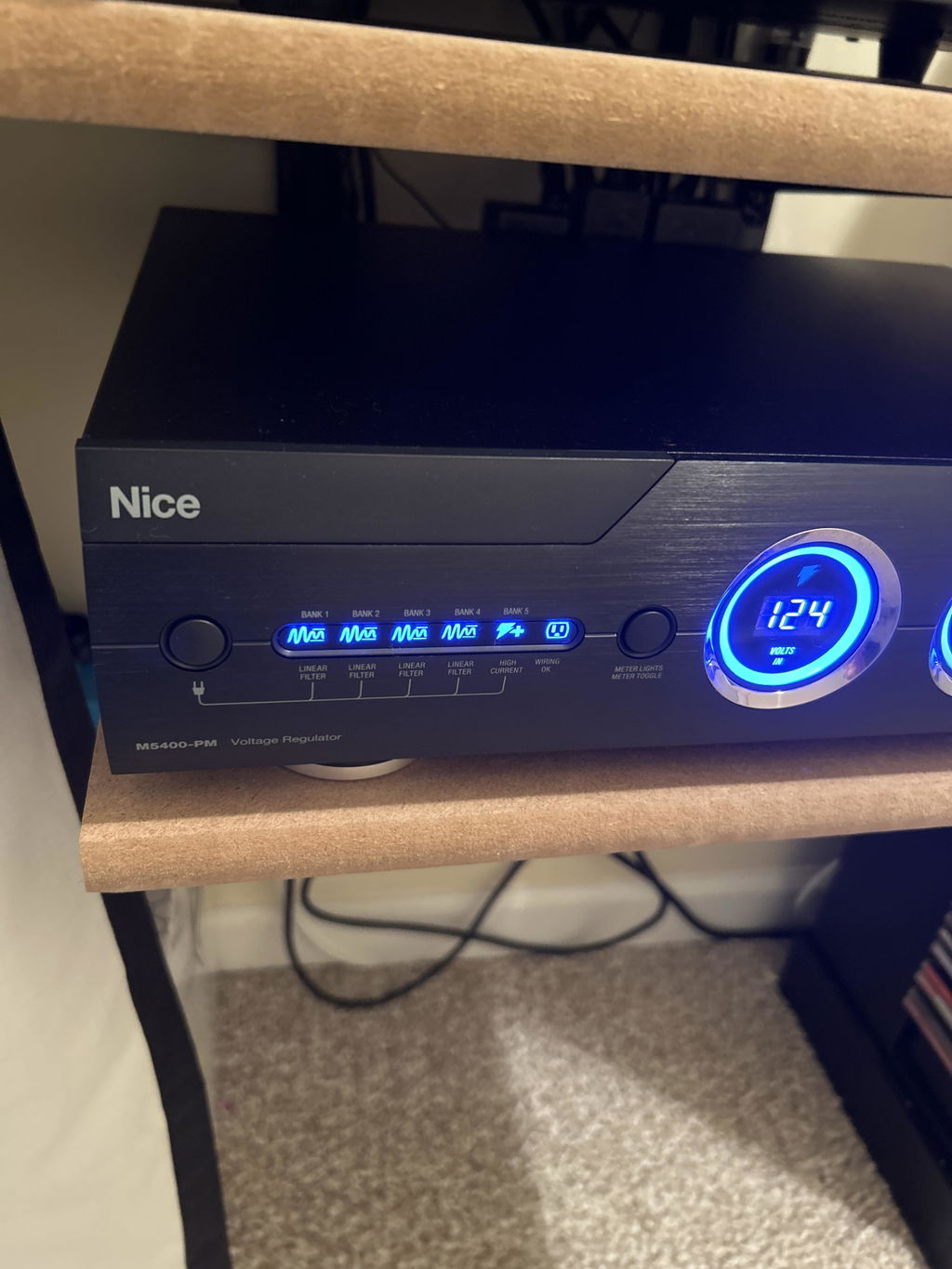

Front Panel:

• Power Button: Powers Bank 3, 4 and 5 outlets on and off.
• Dimmer/Meter Button: Adjusts brightness level of unit's front panel lights and voltmeter. Also toggles the Ammeter display between Volts-Out and Amps.
• Digital Voltmeter: Digital LED voltmeter indicates the incoming line voltage.
• Digital Volts Out/Ammeter: The unit's Digital Volts Out/Ammeter shows the voltage the unit is providing to connected components.
• Outlet Bank Power LEDs: Bank 1, Bank 2, Bank 3, Bank 4 and Bank 5 each have a corresponding LED indicator to indicate they are turned on.
• Wiring OK: This LED illuminates to indicate that the wall outlet is properly grounded and Line/Neutral polarity is correct.

Rear Panel:

• Circuit Breaker: Resets M5400-PM.
• Bank 1 & 2 On LED: This LED illuminates when there is power present on the Bank 1 and 2 receptacles.

What's In The Box:

• Surge suppressor/power line conditioner
• 10' AC power cord (IEC C-13 plug)
• 2 Rack mount brackets
• 4 Machine screws
• 4 Plastic washers
• 42" coaxial cable
• 48" Ethernet cable (has an RJ45 connector on each end)
• 49" Telephone cable (has an RJ11 connector on each end)
• Owner's Guide (English/Spanish/French)
