Panamax M5300-PM Power Line Conditioner and Surge Protector

Original price $ 564.95 - Original price $ 564.95
Original price
$ 564.95
$ 564.95 - $ 564.95
Current price $ 564.95

Price Match Guarantee

Panamax M5300-PM Power Line Conditioner and Surge Protector

The Panamax M5300-PM 11-Outlet Home Theater Power Conditioner provides surge and over- and under-voltage protection and 12-volt trigger input for delayed outlets . It has front-panel digital voltmeter and amp meter and 11 AC outlets with five isolated filter banks, 3 coaxial RF and 2 pairs of Ethernet inputs and outputs plus additional phone line, front-panel USB charger and Ethernet jack.

Product Highlights:

  • 11 AC outlets with 5 isolated banks:
    • Two isolated banks of two switched outlets
    • Two isolated banks of two always-on outlets
    • One isolated bank of two switched high-current outlets with delayed on/off
    • One front-panel convenience outlet
  • Front-panel USB charger
  • Surge and over- and under-voltage protection
  • Filtration circuitry virtually eliminates line noise
  • Three sets of coaxial RF connections for cable/satellite/TV antenna
  • Two sets of RJ-45 Ethernet line inputs and outputs, including one front-panel connection
  • RJ-11 phone line input and output
  • 12-volt trigger input for delayed outlets

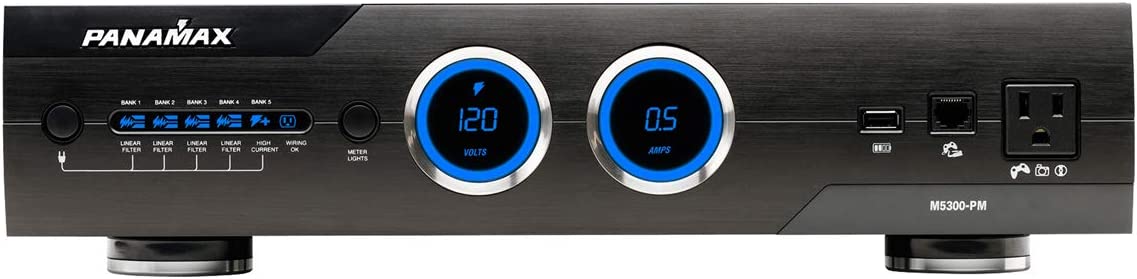

  • Front-panel digital voltmeter and ammeter
  • 2125-joule surge protection
  • Maximum current rating: 15 amps
  • Dimensions: 17"W x 4-1/4"H x 14-1/4"D
  • Warranty: 3 years
  • Our 30-day money back guarantee
  • $5 million connected-equipment warranty (covers equipment that is damaged by an AC surge while connected to a properly installed Panamax surge protector if protector shows signs of surge damage or is operating outside of design specifications)
  • MFR # M5300-PM

What's In The Box:

  • Surge suppressor/power line conditioner
  • 10' AC power cord (IEC C-13 plug)
  • 2 Rack mount brackets
  • 4 Machine screws
  • 4 Plastic washers
  • 42" coaxial cable
  • 48" Ethernet cable (has an RJ45 connector on each end)
  • 49" Telephone cable (has an RJ11 connector on each end)
  • Owner's Guide (English/Spanish/French)
