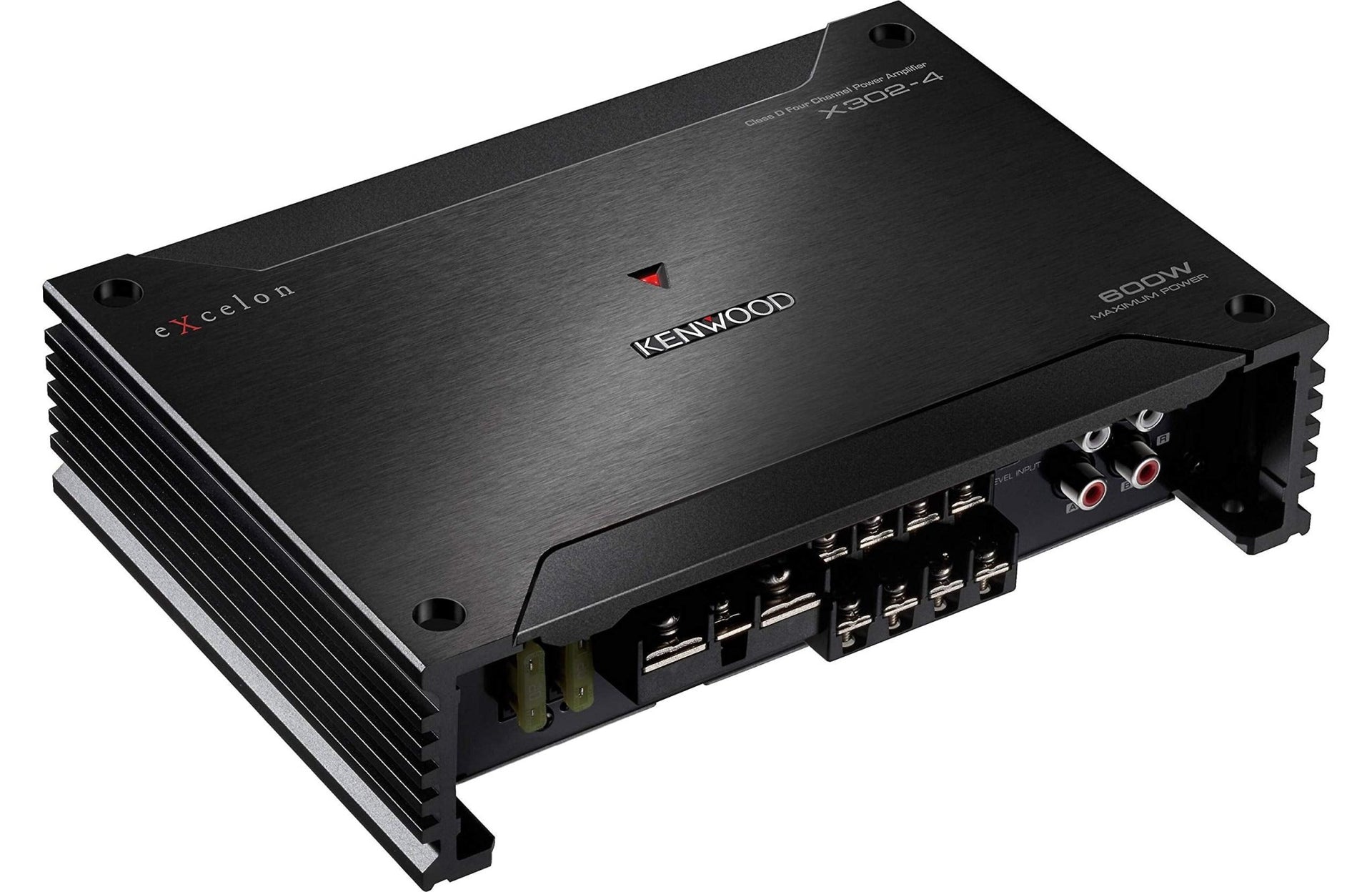

Kenwood Excelon X302-4 4-Channel Class D Amplifier

Kenwood Excelon X302-4 4-Channel Class D Amplifier

Need power, Kenwood's Excelon X302-4 four-channel amplifier delivers 50 watts RMS per channel, yet still fits almost anywhere in your vehicle. Switch this amp over to bridged, 2-channel mode, and you can power a pair of high-performance speakers or subs with 150 watts RMS each. In 3-channel mode, you can use the amp's front channels to drive a pair of speakers with 50 watts each, and bridge the rear channels to send 150 watts to a sub. This versatility pays off as your system evolves over time. High-and low-pass filters let you optimize the sound for your vehicle and speakers. When you're running a subwoofer with the rear channels, you can adjust a bass boost to get just the right tone to fit your musical tastes.

Product Highlights:

• 4-channel car amplifier
  • 50 watts RMS x 4 at 4 ohms (75 watts RMS x 4 at 2 ohms)
  • 150 watts RMS x 2 bridged at 4 ohms (4-ohm stable when bridged)
• CTA-2006 compliant
• Class D amp technology
• Variable high- and low-pass filters (50-200 Hz, 12 dB/octave)
• Variable bass boost on B channels (0-18 dB at 40 Hz)
• Preamp and speaker-level inputs
• Wiring and hardware not included with amplifier
  • 8-gauge power and ground leads recommended
• Fuse rating: 20A x 2
• Dimensions: 8-7/16"W x 2-1/8"H x 5-15/16"D
• Warranty: 2 years
• Our 30-day money back guarantee
• MFR # X302-4

What's In The Box:

• 4-Channel amplifier
• Two 20-amp ATC fuses (installed)
• Terminal cover (installed)
• 8" Speaker level input harness
• Four 5/8" Screws
• Instruction manual (English/ French/ Spanish)
