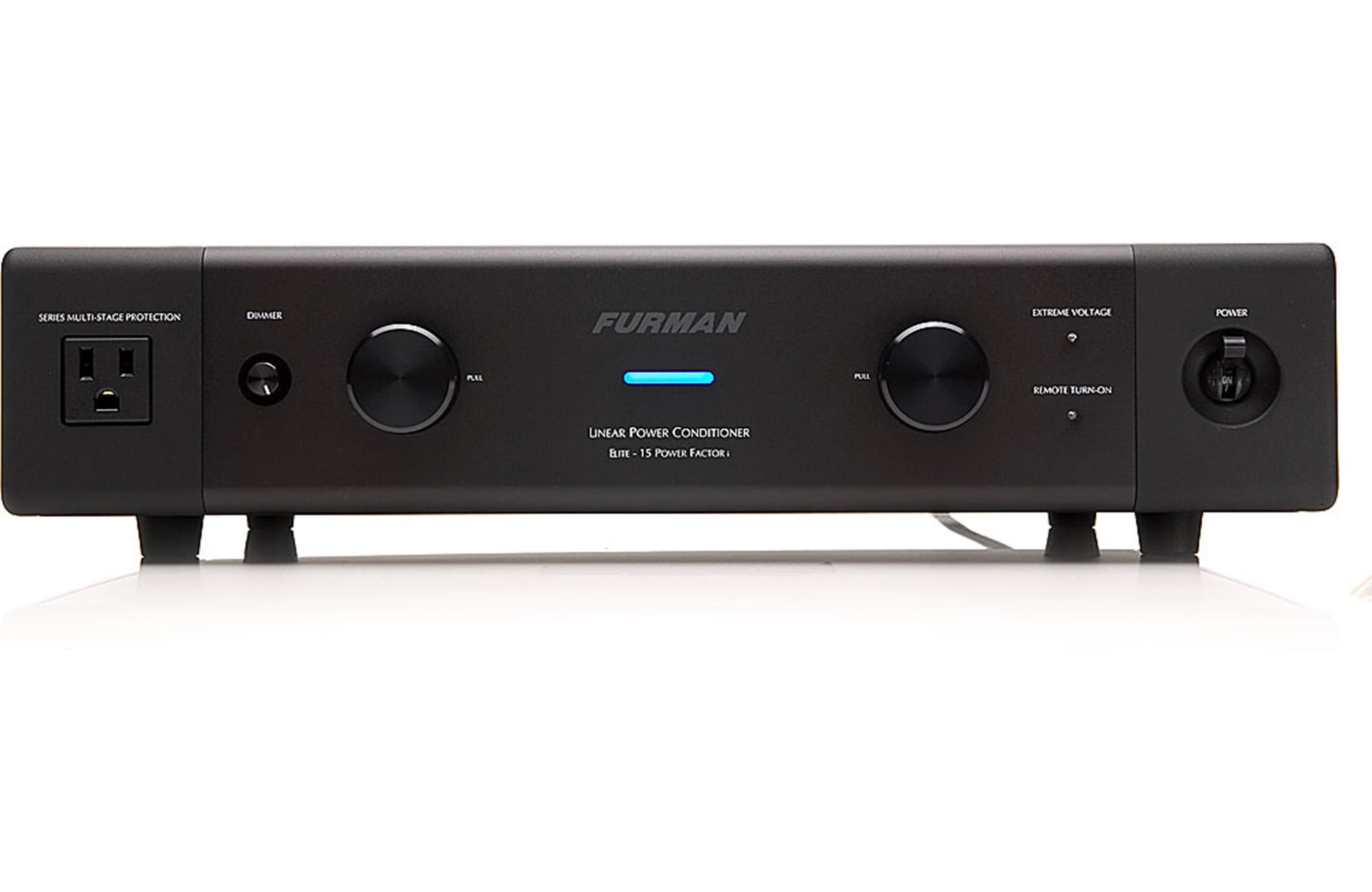

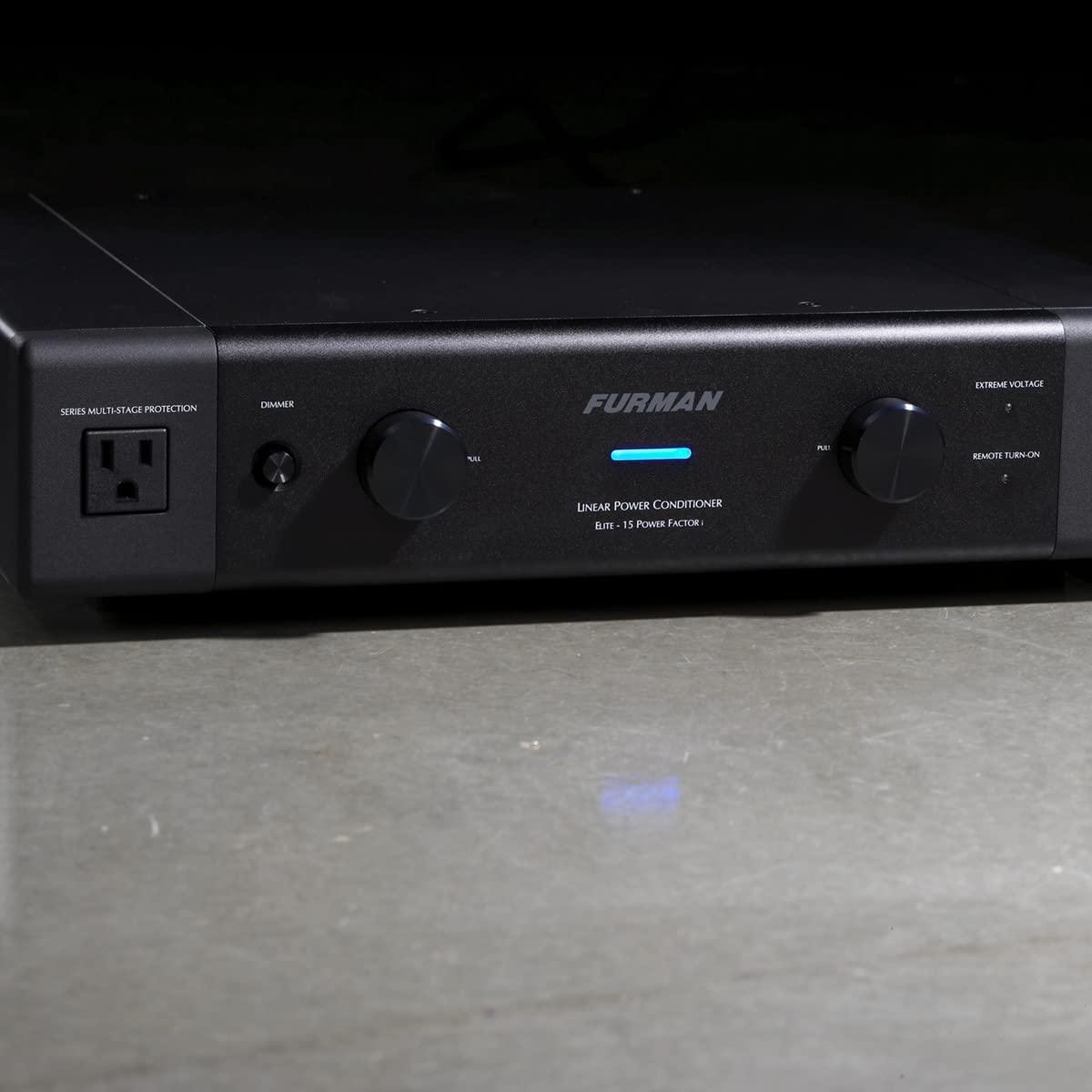

Furman ELITE15 PF i Linear Filtering AC Power Conditioner

Furman Elite-15 PF i Linear Filtering AC Power Source – Clean Lines Means Clear Audio and Video

The extreme AC demands encountered in the professional audio/video arena have required technological developments far in excess of typical home theater/audiophile power products. In studios, live sound, and broadcast facilities, breakdown is unacceptable. The Elite-15 PF i also features remote control capability via 12V triggering, compatible with the 12V triggering devices commonly found in power receivers and pre-amp processors. Additional products (such as a remote subwoofer) can be daisy-chained from the 12V output jack for an additional triggered unit. The 12V triggering feature may be bypassed if desired.

Product Highlights:

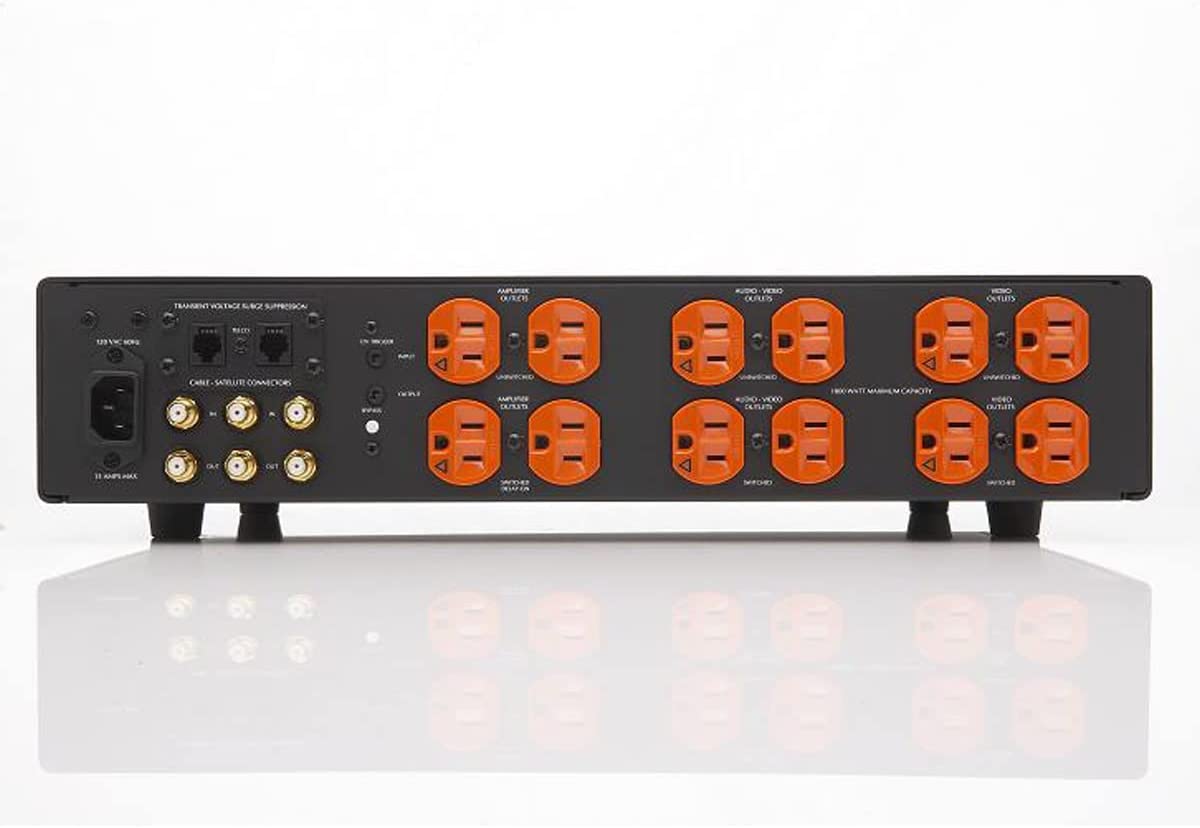

• 13 AC outlets with three isolated banks:
• One bank of 4 outlets (2 un-switched, 2 switched)
• One bank of 4 outlets with additional ultrasonic filtering for digital or video components (2 un-switched, 2 switched)
• One bank of 4 high-current outlets with Power Factor Correction peak current charging (2 un-switched, 2 switched with delayed turn-on)
• One un-switched front-panel convenience outlet
• AC Current Capacity: Input - 15 Amp capacity required, Output - 11-15 Amps RMS (maximum, all outlets combined - continuous)
• Linear Noise Attenuation: Transverse (Differential) Mode: >40 dB from 10Khz. - 100 kHz. >80 dB from 2 Khz. - 100 kHz. – 1GHz. (Linear attenuation curve from 0.05 – 100 ohms line impedance)
• Outlets: 1 (linearly filtered outlet - front panel), 4 (linearly filtered outlet - rear panel, 2 switched via 12V trigger), 4 (linearly filtered outlets with additional ultrasonic filtering for digital or video components, 2 switched via 12V trigger), 4 (power factor corrected amplifier outlets - 3 amps RMS reserve - resistive load - over 45 amps peak charge, 2 switched with 5 second delay via 12V trigger)
• Transient Voltage Surge Suppression: 120 VAC - Series Multi-Stage Protection - Non-Sacrificial with Zero Ground Contamination
• Power Consumption: 12 Watts for display and control circuits independent of actual load<br> Safety Agency Listing: NRTL-C
• Dimensions: 4H x 17W x 14.75D inches (Standard 2 rack unit height without feet)
• Weight: 15 lbs
• Warranty: 3 years

• Our 30-day money back guarantee
• MFR # ELITE-15PF
