Shure BLX14/P31 Wireless Microphone System with Bodypack and PGA31 Headset Mic

Sold out
Original price $ 299.00 - Original price $ 299.00
Original price
$ 299.00
$ 299.00 - $ 299.00
Current price $ 299.00
SKU SHUBLX14P31H10.FBA

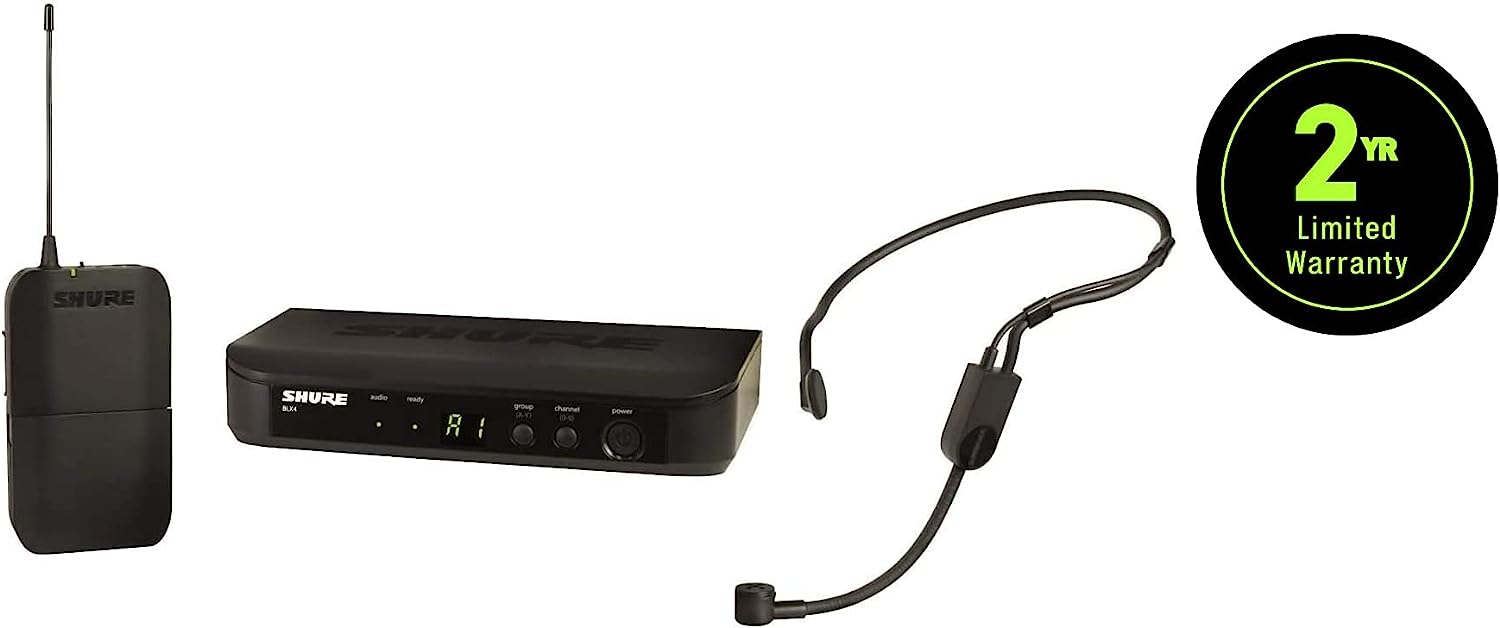

Shure BLX14/PGA31 Wireless Cardioid Headset Microphone System (H10: 542 to 572 MHz)

The Shure BLX14/PGA31 brings presenters, instructors, clergy, multi-instrumentalists, and live performers a cost-effective wireless headset microphone system with quality sound, simple setup, intuitive operation, and dependable performance right out of the box. It includes the compact and lightweight BLX4 single-channel tabletop receiver with internal antennas, ideal for portable use.

Product highlights:

  • System
    • Wireless Transmission Analog UHF
    • Number of RF Channels 123
    • Included Transmitters 1 x Bodypack
    • Diversity Antenna Diversity
    • RF Frequency Band H9:
    • 512 to 542 MHz
    • RF Bandwidth 24 MHz
    • RF Channel Scanning Auto-Scan
    • Max Operating Range 300' / 91.4 m (Line of Sight)
    • Max Systems per Setup 12
    • Dynamic Range 100 dBA

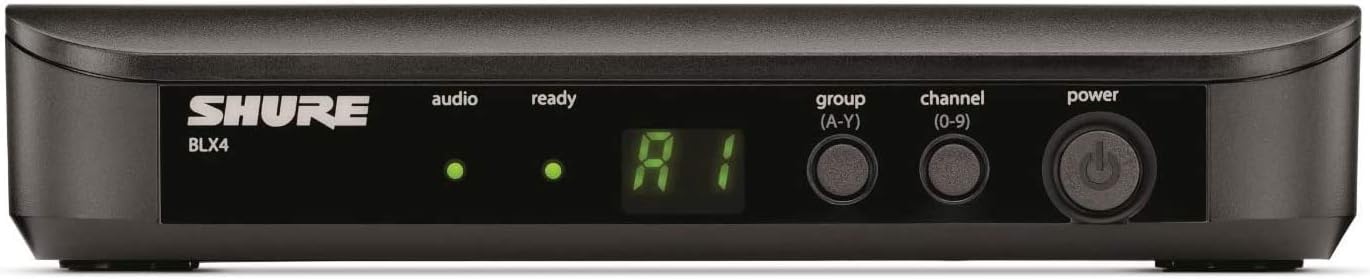

  • Receiver
    • Form Factor Tabletop
    • Antenna 2 x Internal, Fixed
    • Number of Audio Channels 1

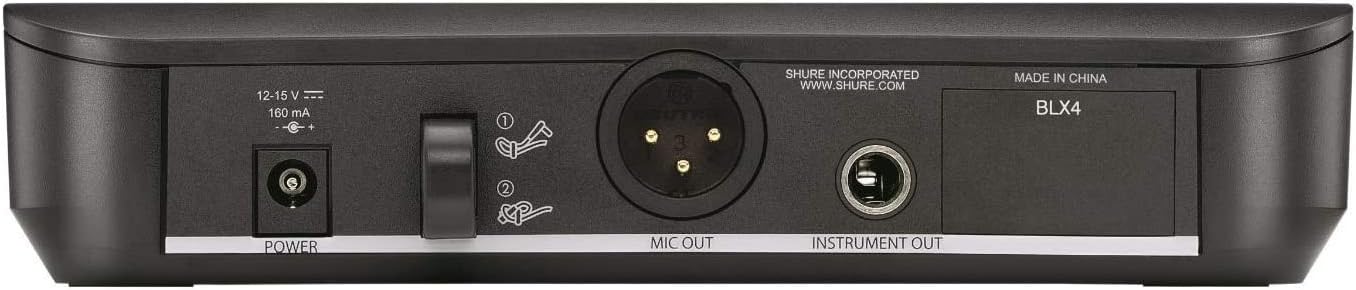

    • Audio I/O 1 x XLR 3-Pin Male Balanced Output
    • 1 x 1/4" TS Female Unbalanced Output
    • Audio Output Level XLR Output:
    • -27 dBV (Mic Level)
    • 1/4" Output:
    • -13 dBV (Instrument Level)
    • Frequency Response 50 Hz to 15 kHz (Dependent on Mic)
    • Impedance XLR Output:
    • 200 Ohms
    • 1/4" Output:
    • 50 Ohms
    • Power Requirements AC/DC Power Adapter
    • AC/DC Power Adapter 12 to 15 VDC at 160 mA, Center-Positive (Included)
    • Display & Indicators 1 x Multi-Segment LED (Channel, Group)
    • 2 x LED (AF Level, Sync)
    • Housing ABS
    • Operating Temperature 0 to 135°F / -17 to 57°C
    • Dimensions 7.4 x 1.6 x 4.1" / 188 x 40 x 103 mm
    • Weight 8.5 oz / 241 g

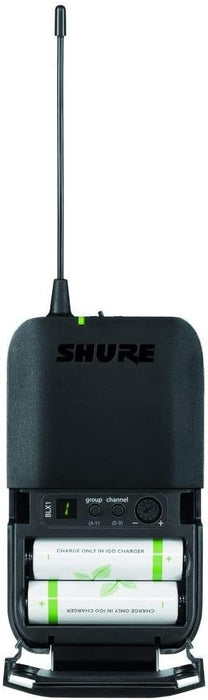

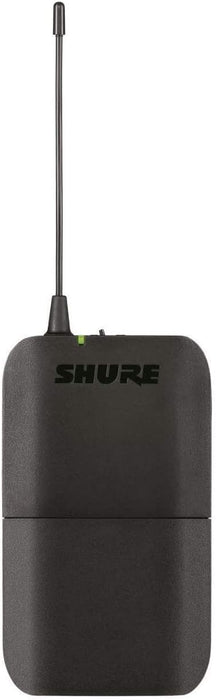

  • Transmitter
    • Form Factor Bodypack
    • RF Output Power 10 mW

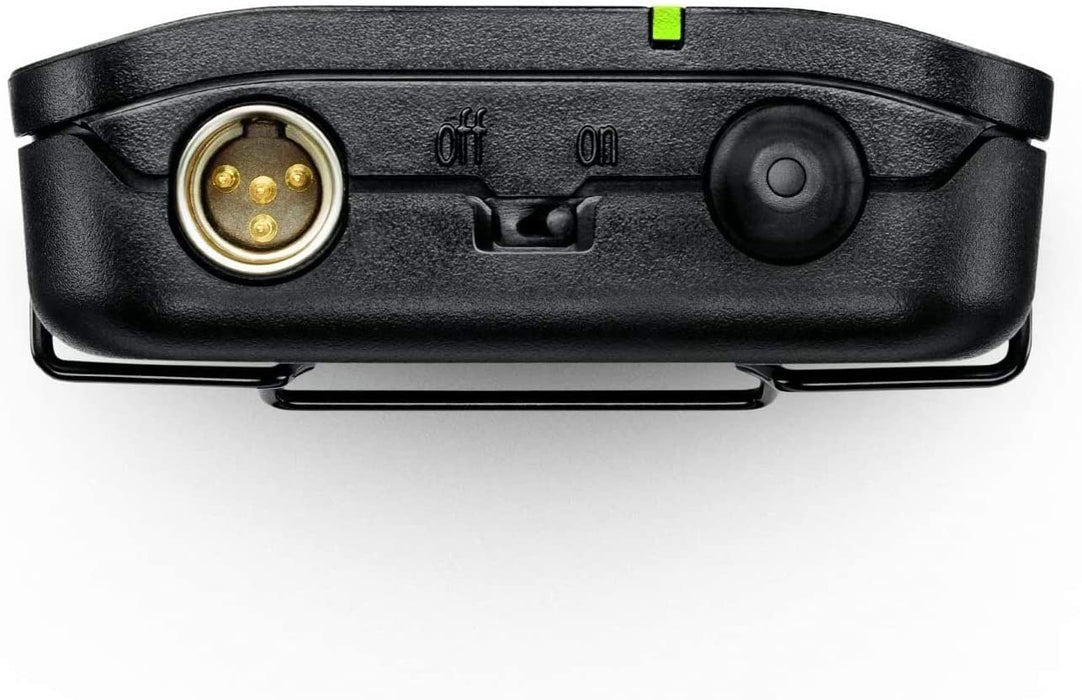

    • Audio I/O 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
    • Muting Off/On Switch
    • Auto-Level Control No
    • Gain Range -16 to +10 dB
    • Sync Method Manual
    • Antenna 1 x Flexible Whip, Fixed (Beltpack)
    • Power Requirements Battery
    • Battery Type 2 x AA (Included)
    • Approx. Battery Life 14 Hours (Alkaline)
    • Display & Indicators 1 x Multi-Segment LED (Channel, Group)
    • 1 x LED (Battery Status, Power)
    • Housing ABS
    • Dimensions 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
    • Weight 2.6 oz / 75 g (without Batteries)

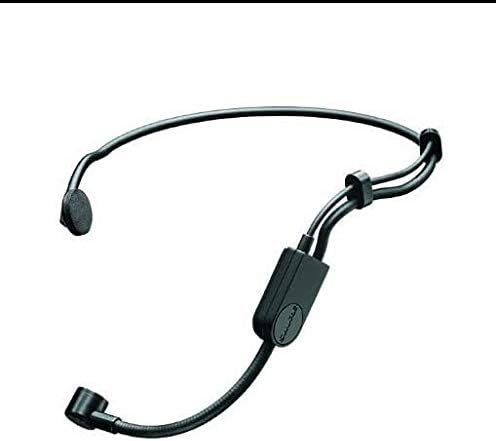

  • Microphone
    • Form Factor Headset
    • Sound Field Mono
    • Capsule Electret Condenser
    • Polar Pattern Cardioid
    • Frequency Range 60 Hz to 20 kHz
    • SNR 66 dB
    • Equivalent Noise Level 28 dB
    • Maximum SPL 145 dB SPL
    • Impedance 600 Ohms
    • Dynamic Range 117 dB
    • Output Connectors 1 x TA4/Mini XLR 4-Pin Female (Lockable)
    • Cable Length 4.27' / 1.3 m
    • Operating Voltage 5 V
    • Weight 1.59 oz / 45 g
