Rotel RMB-1555 5-Channel Power Amplifier

Rotel RMB-1555 5-Channel Power Amplifier

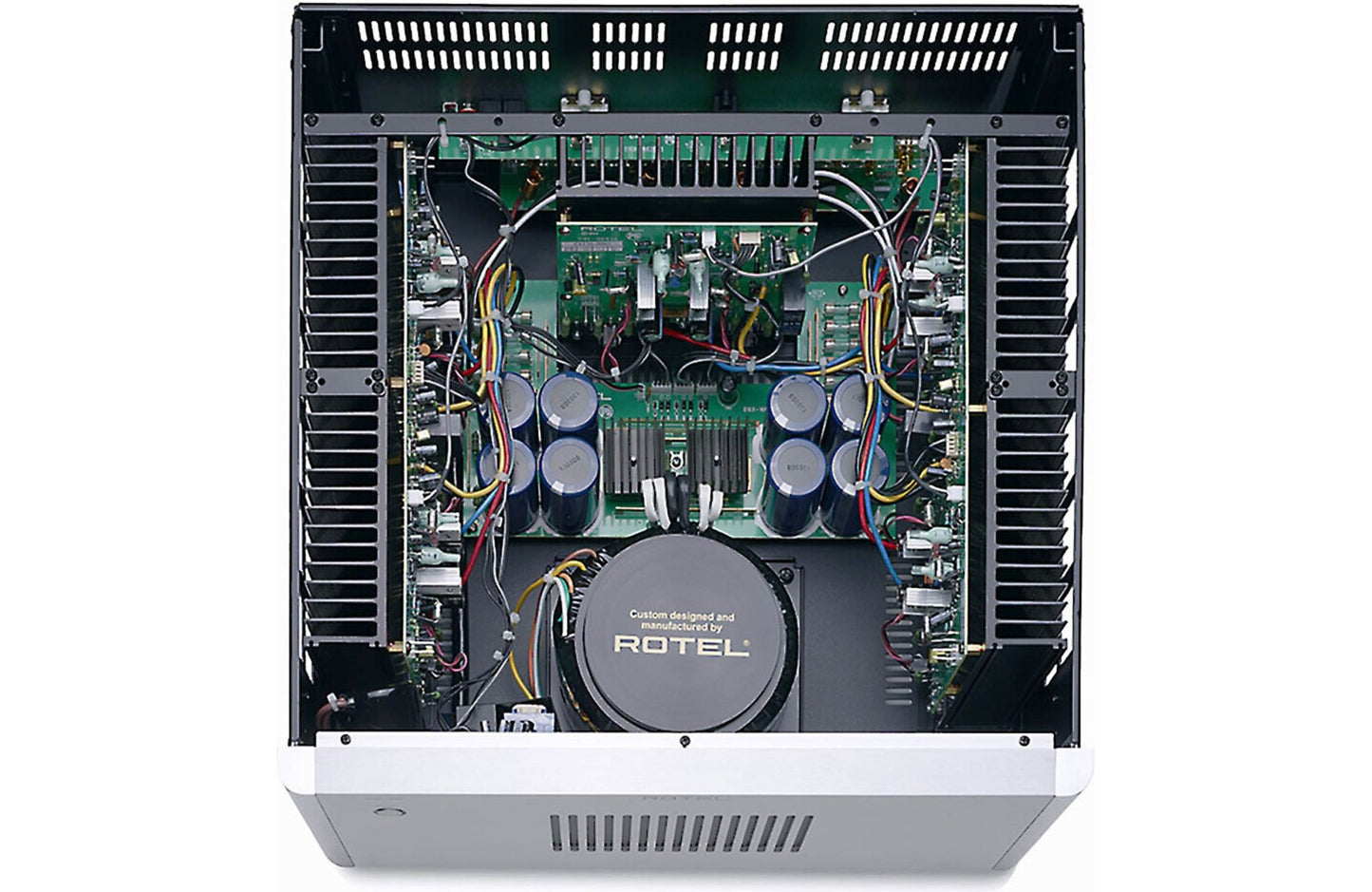

The RMB-1555 is a remarkable multichannel amplifier with power output conservatively rated at 120 Watts per channel into 8 ohms (all channels driven!). With all but the most demanding speakers located in extraordinarily large rooms, the RMB-1555 exerts the kind of precise control that presents both nuance and bombast correctly from the faintest flute overtones to the subterranean rumble of an approaching apocalypse. The RMB-1555 employs a high current, toroidal transformer matched to discrete output transistors with their higher thermal stability and freedom from the designed-in compromises that characterize their integrated circuit cousins. The Class AB amplifier configuration assures the best balance between power output and thermal efficiency.

Product Highlights:

• 120 watts per channel into 8 ohms (20-20,000 Hz) at 0.03% THD with all channels driven
• 4-ohm stable for use with a wide range of speakers
• Class AB design
  • Custom made toroidal transformer for stable, noise-free performance
  • High-quality, British-made capacitors
• Frequency response: 10-100,000 Hz (+0.5/-3dB)
• Signal-to-noise ratio: 116 dB
• Thermal and overcurrent protection circuitry
• Rack mounting ears included
• Detachable power cord

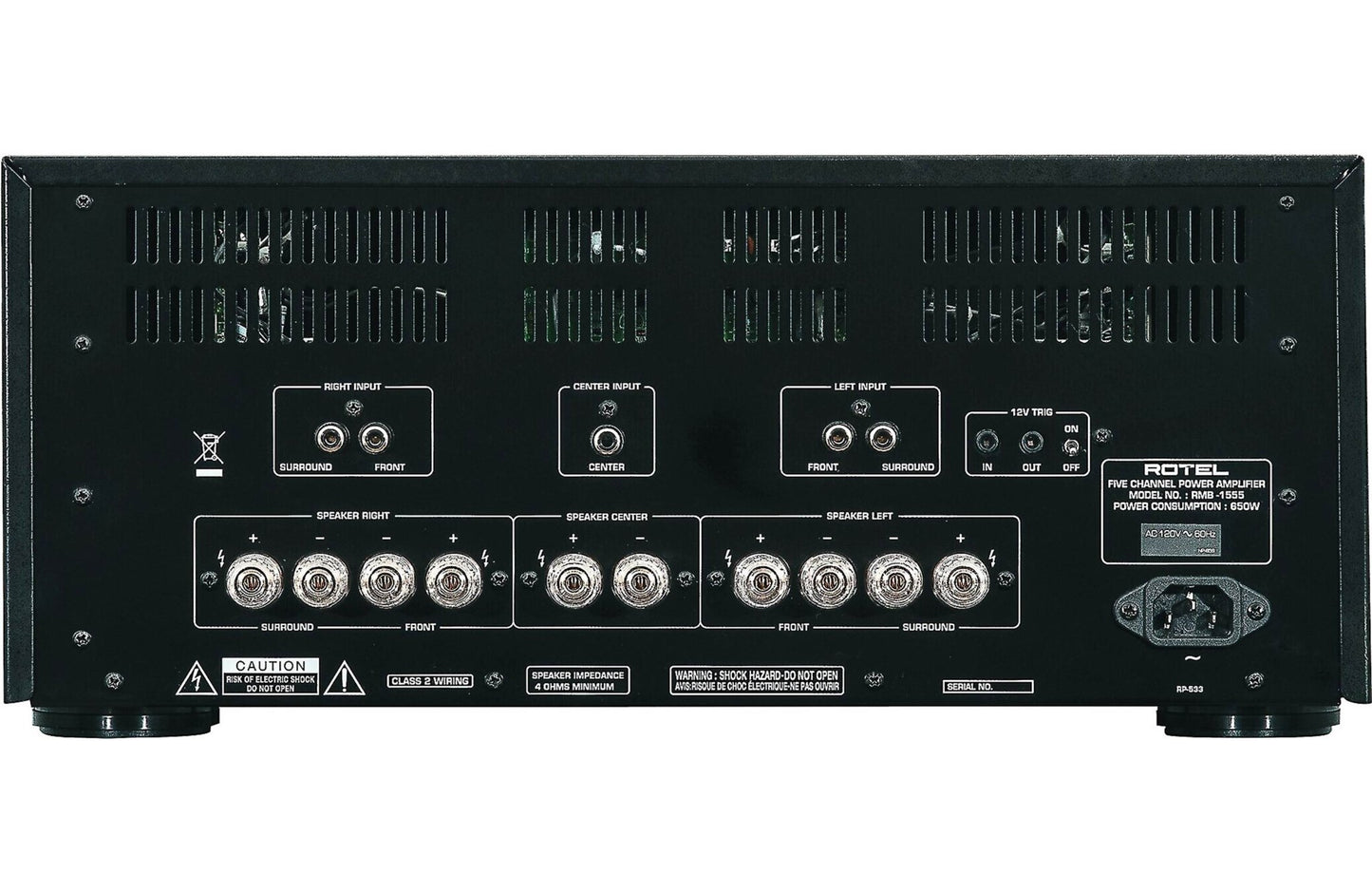

Connections:

• Unbalanced RCA inputs for all five channels
• 5-way binding post terminals for each speaker
• Switchable 3.5mm 12-volt trigger in/out

Dimensions and warranty:

• 17"W x 7-1/2"H x 17-7/8"D (4U rack spaces)
• Weight: 48 lbs.
• Warranty: 5 years
• Our 30-day money back guarantee
• Black MFR # ROT1030001
• Silver MFR # ROT1030002

What's In The Box:

• 5-Channel power amplifier
• 6.5' AC power cord
• 40" Mono-minijack cable
• 2 Rack-mount ears
• 6 Pan-head screws
• 4 Counter-sunk screws
• 2 Power button masking rings
• Owner's manual on CD-ROM
• Warranty Information
• Rack Frame Assembly Instructions
• Addendum
