Mackie 1642VLZ4 VLZ4 Series, 16 Unpowered Audio Mixers (Multi-Colored)

Original price $ 799.99 - Original price $ 799.99
Original price
$ 799.99
$ 799.99 - $ 799.99
Current price $ 799.99
SKU MAK1642VLZ4.FBA

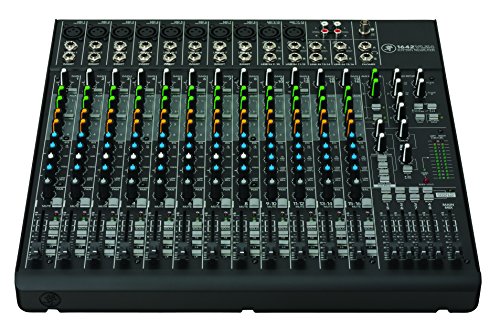

Mackie 1642VLZ4 16-Channel 4-Bus Compact Mixer

The Mackie 1642VLZ4 16-Channel 4-Bus Compact Mixer delivers the proven performance of Onyx preamps in a compact 4-bus mixer design, suitable for bands, clubs, and more. From every input to every output, the mixer is designed to provide the highest headroom and lowest noise possible for maximum signal integrity.

Product Highlights:

  • For Sound Reinforcement Applications
  • 10x Onyx Preamps
  • 3-Band EQ
  • LED Meter
  • 48V Phantom Power
  • Low Noise, High Headroom
  • Solid Steel Chassis
  • Multi-Voltage Power Supply
  • Total Harmonic Distortion (THD) Microphone In to Insert Send: <0.0007%
  • (1 kHz @ 35 dB gain, 20 Hz to 20 kHz bandwidth)
  • Crosstalk / Attenuation Channel Mute Switch Engaged & Channel Gain Knob Down: -82 dBu
  • (1 kHz relative to 0 dBu, 20 Hz to 20 kHz bandwidth, line in, 1/4" main out, gain @ unity)
  • Frequency Response Microphone Input to Main Output (Gain @ Unity):
  • +0, -1 dB, 20 Hz to 50 kHz
  • +0, -3 dB, <10 Hz to >100 kHz
  • Power Consumption 50 W, 100 to 120 VAC/ 200 to 240 VAC, 50 to 60 Hz
  • Operating Temperature 32 to 104°F (0 to 40°C)
  • Fuse Rating 100 to 120V: 1 A slo blo, 5 x 20 mm
  • 220 to 240V: 0.5 A slo blo, 5 x 20 mm
  • Dimensions (H x W x D) 16.7 x 16.6 x 5.2" (425.0 x 421.0 x 131.0 mm)
  • Weight 18.2 lb (8.3 kg)
  • Our 30-day money back guarantee

The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for tactile control. With features like an expanded return section for no-hassle system integration and a dedicated control room section, the 1642VLZ4 16-Channel 4-Bus Compact Mixer is the go-to mixer choice for any application that demands flexibility and professional performance.
