Kicker 47KEYLOC Smart 2 Channel Line Output Converter

Original price $ 129.99 - Original price $ 129.99
Original price
$ 129.99
$ 129.99 - $ 129.99
Current price $ 129.99

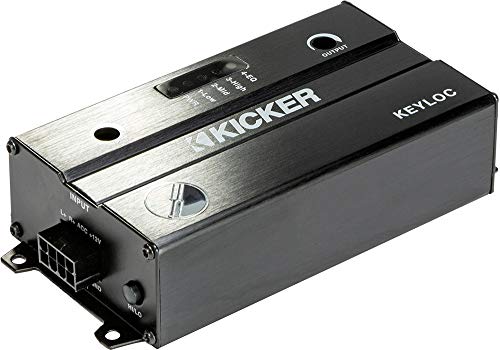

Kicker 47KEYLOC Smart 2 Channel Line Output Converter

This revolutionary line output converter automatically detects the frequency range of your speaker leads, and a whole lot more! News flash: factory audio systems don't always deliver a full-range signal on every speaker wire. That makes it tough to hook up an aftermarket amp and get the sound you wanted - until now. Attach the speaker wire to the KEYLOC, play a free test tone (below) and read the LEDs. You'll instantly know if Hi, Mid or Lo is coming from a particular pair of speaker wires. No oscilloscope or RTA needed! Using KICKER's FIT 2+ technology, the KEYLOC has the most versatile input sensitivity in the car-audio aftermarket. Ranging from 125 mV - 10V (Lo) or 1V to 40V (Hi), the KEYLOC is prepared to work with nearly every vehicle on the road today. The KEYLOC allows you to keep or defeat factory time delay, or the all-pass filter built into many modern vehicles. By defeating this filter, the KEYLOC instantly counteracts the either of these factory effects, allowing you to tune for one-seat audio or maintain the factory imaging.

Kicker 47KEYLOC Smart 2 Channcel Line Output Converter Product Highlights:

  • 2-channel active line output converter
  • Automatic frequency response detection (RTA)
  • Automatic factory EQ correction (DE-EQ)
    • Download test tones and tracks from Kicker.com/test-tones
    • Manual programming includes an all-pass option to remove factory phase issues
  • 2 speaker-level inputs with up to 400 watts RMS power handling
  • 2 preamp-level outputs (up to 10V)
  • Output gain controls
  • 12-volt turn-on lead output
  • Fuse rating: 2A x 1
  • Dimensions: 5-3/4"W x 1-7/16"H x 2-7/8"D
  • Warranty: 2 years
  • Our 30-day money back guarantee
  • MFR # 47KEYLOC

What's In The Box:

  • DSP-Controlled line-output converter (2 ch.)
  • 10" 8-Pin harness
  • Four 10mm screws
  • Quickstart guide
  • Kicker Tech Support information
