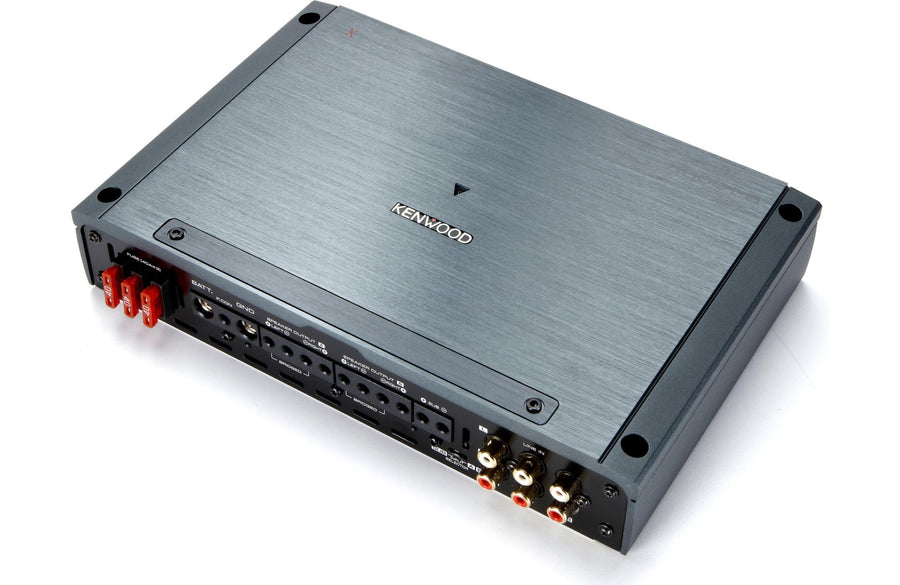

Kenwood Excelon XR901-5 Reference Series 5-Channel Car Amplifier
Kenwood Excelon XR901-5
Reference Series 5-channel car amplifier — 60 watts RMS x 4 at 4 ohms + 600 watts RMS x 1 at 2 ohms
Kenwood's Excelon Reference Series XR901-5 amp can power your entire audio system while taking up an astonishingly small amount of space — it's smaller than a 2" stack of computer paper. But this compact 5-channel workhorse will send 60 watts RMS to each of your front and rear speakers, along with up to 600 watts RMS to your sub. You could also use the XR901-5 in 3-channel mode to drive a pair of high-performance speakers or components with 150 watts RMS each, while still sending 600 watts RMS to a sub.
- 5-channel amplifier
- 60 watts RMS x 4 + 400 watts RMS x 1 at 4 ohms
- 75 watts RMS x 4 + 600 watts RMS x 1 at 2 ohms
- 150 watts RMS x 2 bridged at 4 ohms + 600 watts RMS at 2 ohms
- CTA-2006 compliant
- Class-D amp design — frequency response: 20-40,000 Hz
- Variable low- and high-pass filters on front and rear channels (50-200 Hz, 12 dB/octave)
- Variable low-pass filter on subwoofer channel (50-200 Hz, 24 dB/octave)
- Wired remote volume control for sub channel
- Cooling fan
- Preamp inputs only
- Fuse rating: 40A x 3
- Wiring and hardware not included with amplifier
- 4-gauge power and ground leads recommended
- 10-1/4"W x 2"H x 7-3/16"D
- Warranty: 2 years
- Our 30-day money-back guarantee
- MFR # XR901-5
High Resolution Music
This Excelon Reference Series amplifier has ultra-high-frequency response, up to 40,000 Hz, reproducing sounds that help define audio tone and space even though beyond the range of hearing. Fix this amp up with a nice set of Kenwood high-res Reference Series speakers, and you can enjoy the extended detail and powerful musical imaging of your high-res FLAC or DSD files.
High Performance Parts
Special capacitors and inductors have been carefully selected for the digital amplifier’s LC filter, which is essential for achieving highresolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality.
Deep Bass Sound
By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.
Enhanced Signal to Noice Ratio
The feedback value of the current XR Amplifier has been optimized to improve the S/N ratio. As a result, the noise level has been reduced by up to 40%.
Specialized Circuit Design
The noise reduction system employs a special layout that separates the analog circuit, digital amplifier circuit and power supply circuit. This keeps interference between the circuits to a minimum, decreasing noise and thereby achieving high performance and sound quality.
Controls for the Best Sound
You can contour the sound with high- and low-pass filters so your full-range speakers play efficiently and sound their best. The front and rear channels feature separate gain and filter controls so you can adjust for different types of speakers.
The subwoofer channel features its own low-pass filter that'll send the correct frequencies to your sub and enclosure, with an adjustable bass boost that adds some low-end punch when you want it. A wired remote lets you control the volume of the sub channel from the front seat.
