Kenwood CMOS-230 Backup Camera

Sold out
Original price $ 99.00 - Original price $ 99.00
Original price
$ 99.00
$ 99.00 - $ 99.00
Current price $ 99.00

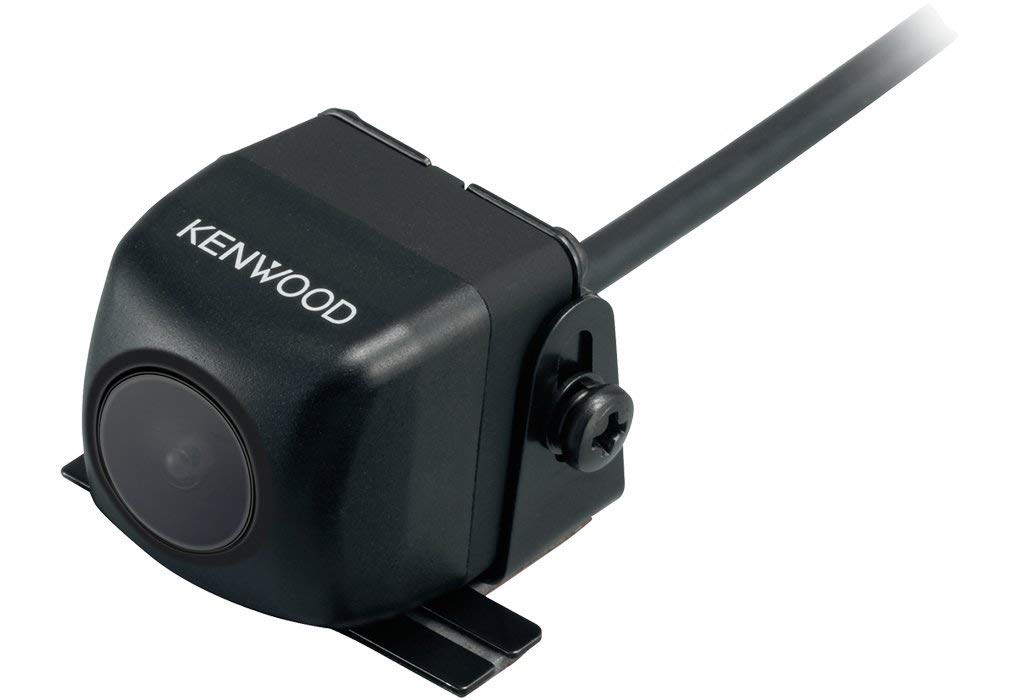

Kenwood CMOS-230 Universal Rear View Camera

Kenwood's CMOS-230 rear-view camera is tiny — less than a cubic inch — so it's a natural fit on the rear of almost any vehicle. Once installed, shifting into reverse will let you check out the view behind you on your receiver's video screen. The camera captures a 128-degree horizontal view and 103-degree vertical view, so you'll really get the big picture — especially handy if you're trying to back up in a large vehicle or if you're towing something.


Product Highlights:

  • Waterproof CMOS rear-view camera

  • 128-degree horizontal and 103-degree vertical view

  • 330,000 pixels

  • Dimensions: 15/16"Wx15/16"Hx15/16"D

  • Built-in power supply

  • 24-foot cable harness and mounting bracket included

  • Warranty: 1 year

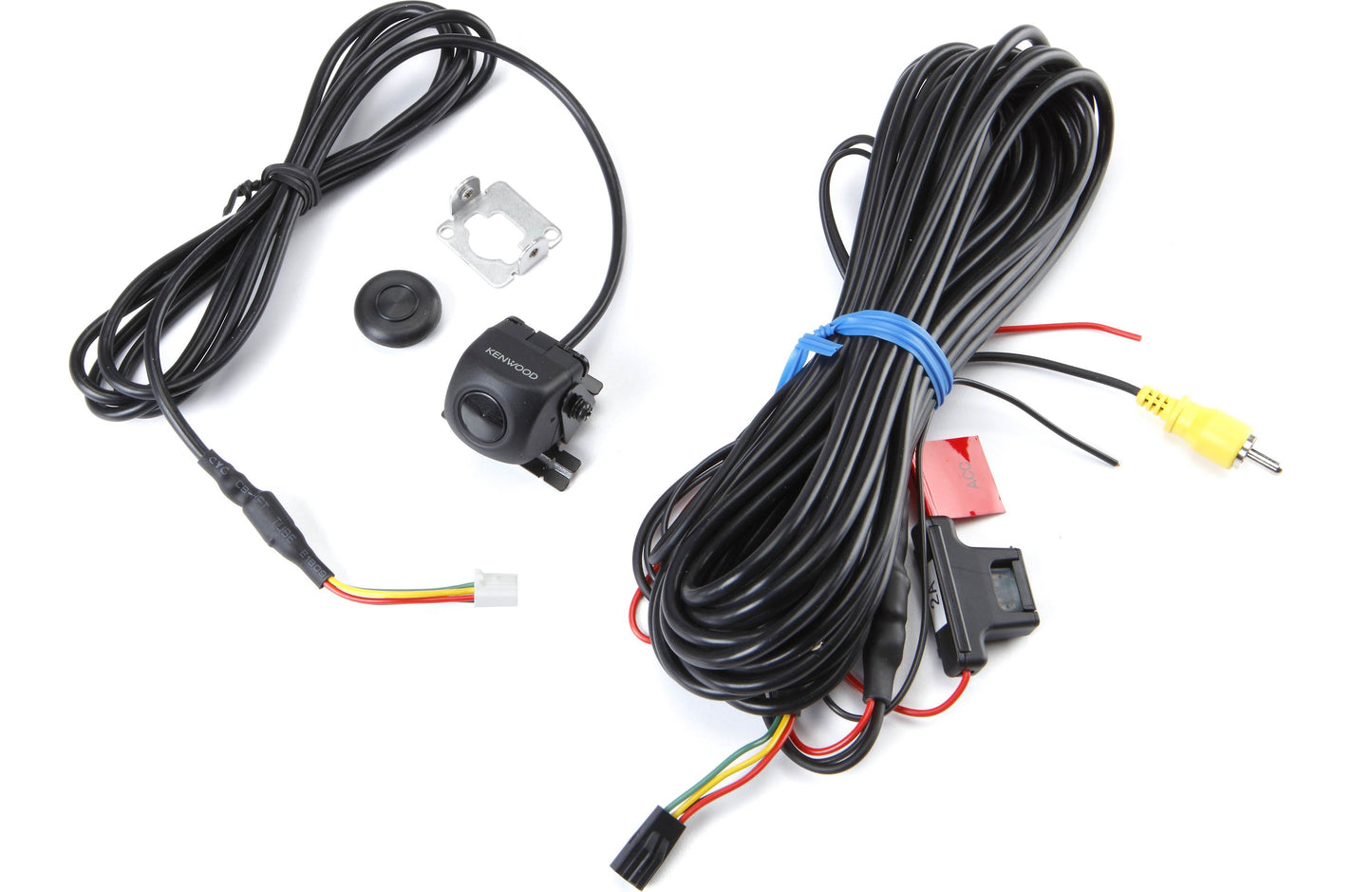

What's in the Box:

  • Rear-view camera w/ bracket (attached 5' cable)

  • 24' Signal/power/ground harness

  • Bracket

  • Mounting screw

  • Rubber waterproof plug

  • Instruction Manual (En/Fr/Sp)

  • Kenwood Warranty Card



Compatibility: The Kenwood CMOS-230 universal rear-view Camera can be used as a back-up camera with Kenwood in-dash navigation and DVD receivers. However, the standard composite video output (RCA plug) extension cable makes it compatible with virtually any in-dash mobile video receiver.

Waterproof Chassis: The camera is built into a compact waterproof aluminum case, making it perfect for mounting outside the vehicle.

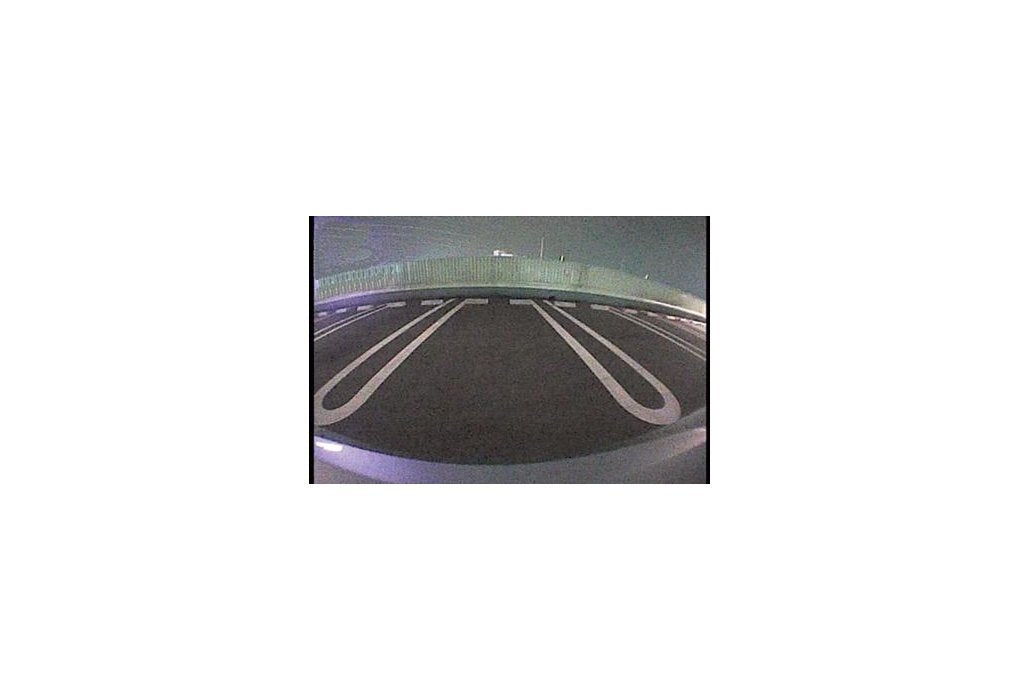

Super Wide Viewing Angle: The 128° horizontal and 103° vertical viewing angles provide an excellent near field view of anything behind you. The camera gives you a mirror image for rear view confirmation.

CMOS Optics: The 1/3.6" color CMOS image sensor has approximately 330,000 pixels to deliver a high quality picture.

Illumination Range: The rear-view camera provides an illumination range of approximately 0.9 to 100,000 lux. It offers less light distortion from nearby light sources.

Mounting Bracket: The CMOS-230 rear-view camera includes two brackets to either mount the camera to a horizontal or vertical surface on the outside your vehicle. Once mounted, you are able to physically adjust the angle of the camera. Make sure the camera's "Kenwood" logo is facing up.
