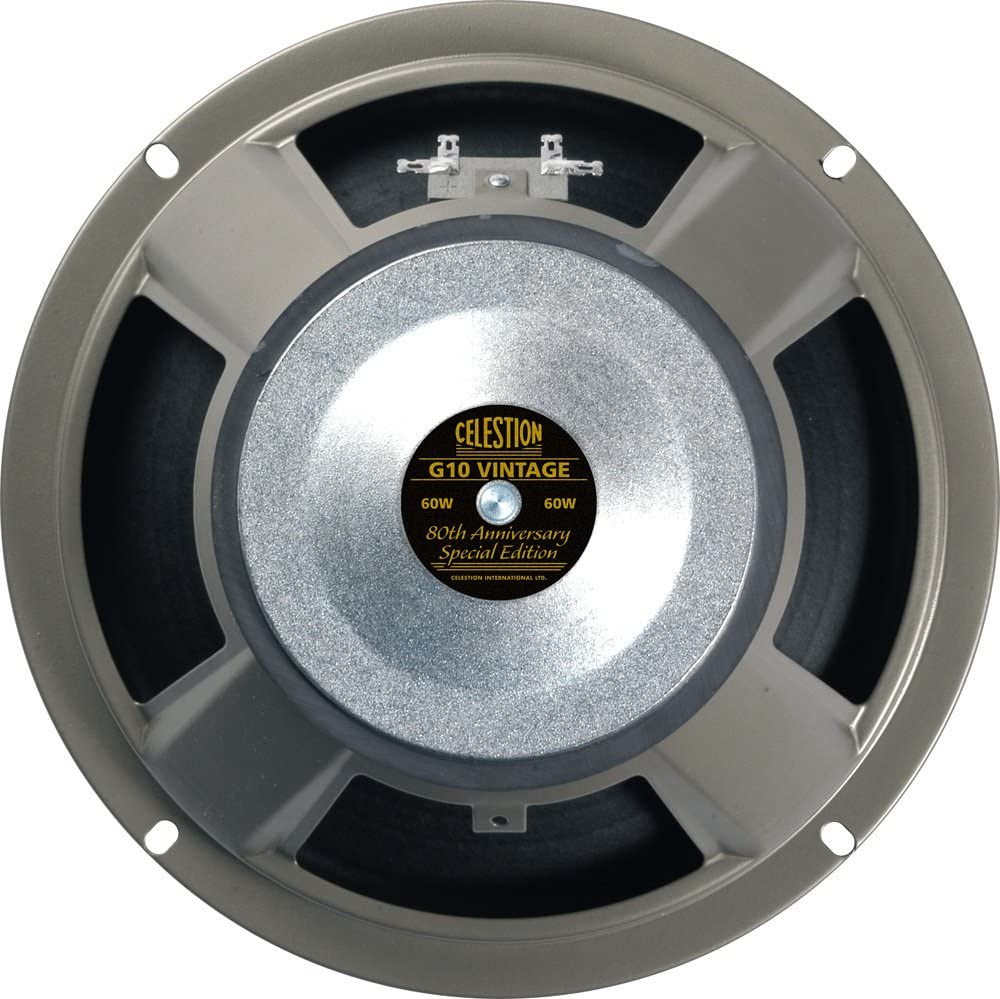

Celestion T5381 G10 10" 16-Ohm Vintage Guitar Speaker
Celestion T5381 G10 10" 16-Ohm Vintage Guitar Speaker
A worthy successor to the Vintage 10 the G10 Vintage is a 10" speaker with bags of attitude. Using powerful ceramic magnets and the same voice coil design as the Vintage 30, the G10 packs impressive punch with its 60W power handling. With the fast response of a 10" but with the strong and creamy vocal tones of a 12", the G10 is the ideal choice to add depth to hollow-sounding amps, or for players who want to get humbucker-type girth from single-coils. Can be used singly to add vocal warmth to small valve combos, or in quartets for a weightier but still lively attack.
Product Highlights:
Features:
- 10" 60W ceramic magnet speaker
- 1.75" round copper voice coil
- Frequency range of 100-5500Hz
- Sensitivity of 97dB (1W @ 1m)
- Golden sand finish
- Warranty: 5 years
- Our 30-day money back guarantee
- MFR # T5381
Technical Specifications:
- Nominal diameter: 10", 254mm
- Power Rating: 60W
- Sensitivity: 97dB
- Chassis type: Pressed steel
- Voice coil diameter: 1.75", 44.5mm
- Voice coil material: Round copper
- Magnet type: Ceramic
- Magnet weight: 31 oz., 0.88kg
- Frequency range: 100-5500Hz
- Resonance frequency, Fs: 115Hz
- DC resistance, Re: 7.47 ohms
- Mounting Information
- Diameter: 10.1", 256mm
- Overall depth: 4.1", 104mm
- Magnet structure diameter: 5.3", 134mm
- Cut-out diameter: 9.0", 229mm
- Mounting slot dimensions: 0.2 x 0.3", 6 x 8mm
- Number of mounting slots: 4
- Mounting slot PCD: 9.6", 245mm
- Product weight: 5.3lbs.
