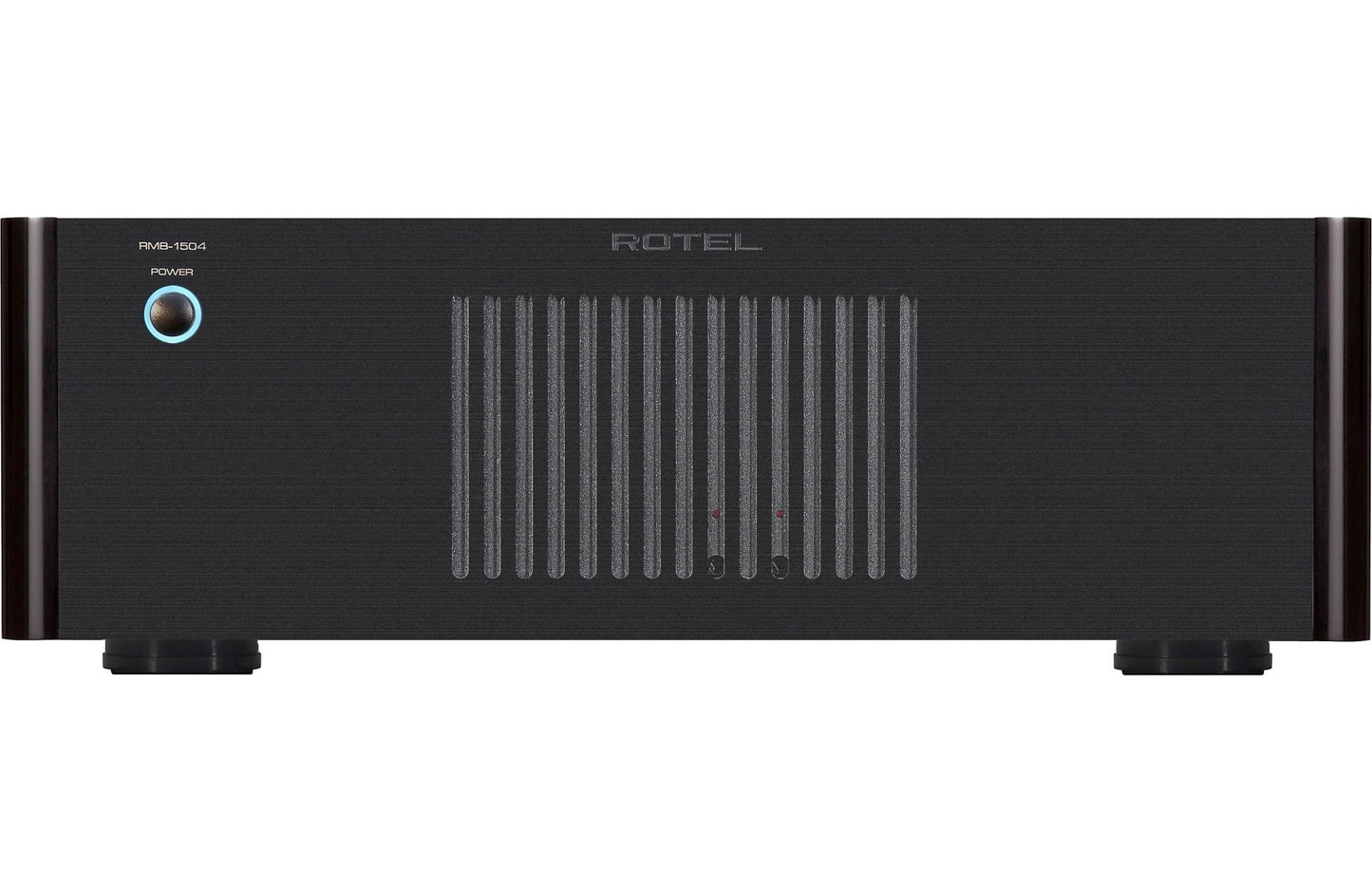

Rotel RMB-1504 4-Channel Power Amplifier
The RMB-1504 is a Class AB 4-channel amplifier that reflects Rotel’s six-decade legacy of uncompromising performance and expert in-house craftsmanship. Designed for versatility, it delivers both power and precision, making it an excellent choice for home theater systems and custom multi-room audio installations alike.
Product Highlights:
- 70 watts per channel into 8 ohms (20-20,000 Hz) at 0.03% THD with all channels driven
- 115 watts per channel into 4 ohms
- Class AB design
- Custom made toroidal transformer for stable, noise-free performance
- Frequency response: 10-100,000 Hz (±1dB)
- Signal-to-noise ratio: 115 dB
- Thermal and overcurrent protection circuitry
- Detachable power cord

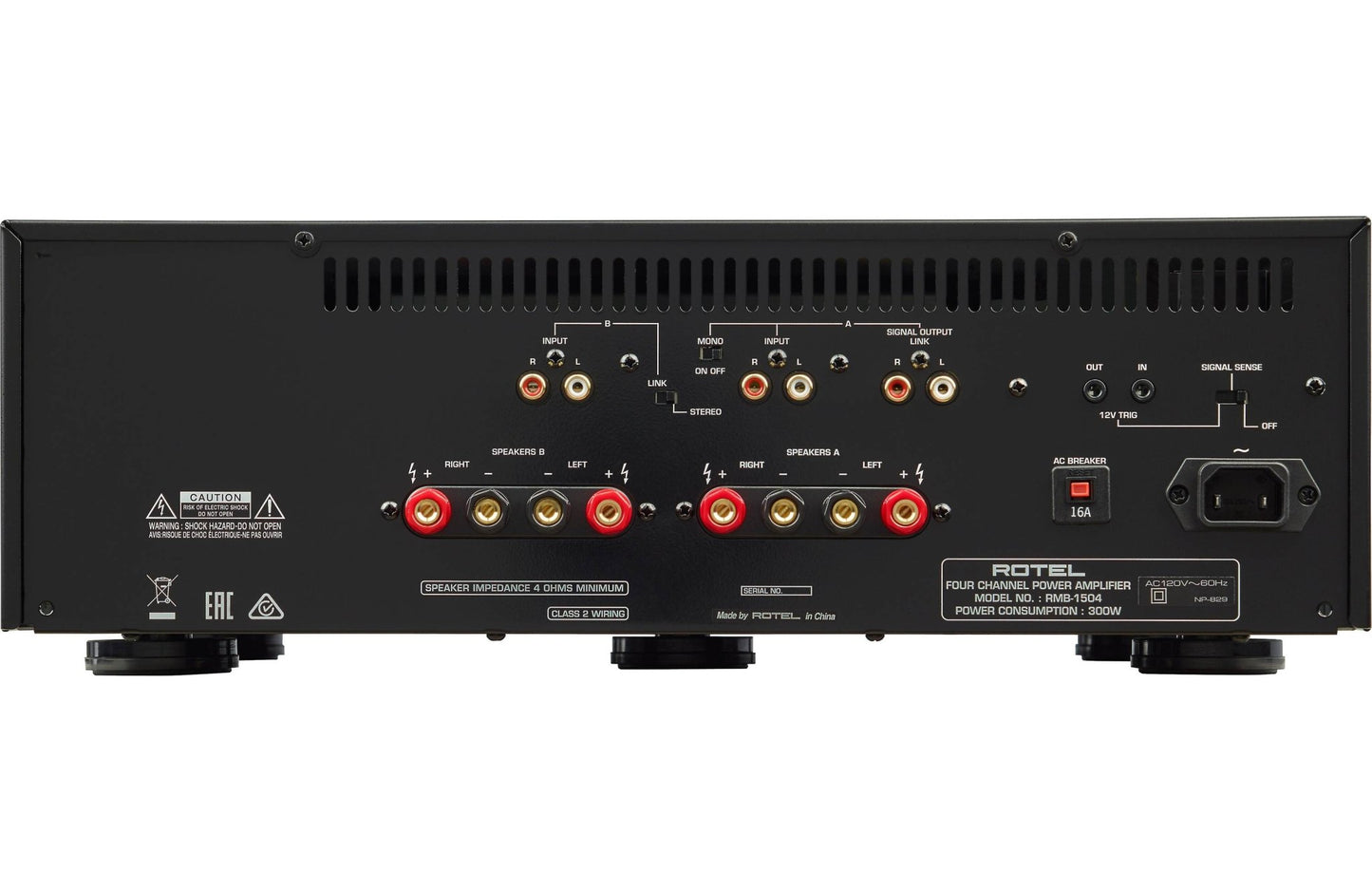

Connections:
- Two unbalanced stereo RCA inputs for A/B channel pairs
- Independent input level controls on front panel (adjustable via small flat-blade screwdriver)
- Mono switch links left and right channels for feeding both with a single mono RCA connection
- Link switch sends A channel input signals to the B channels
- Unbalanced stereo RCA signal output link
- Passes left/right A channel input signals to a connected component
- 5-way binding post terminals for A/B speakers
- 3.5mm 12-volt trigger in/out with signal sensing switch
- Rack mounting ears included
Dimensions and warranty:
- 17"W x 5-11/16"H x 17-1/2"D (3U rack spaces)
- Weight: 32.8 lbs.
- Warranty: 5 years
- Our 30-day money back guarantee
- MFR # ROT1030005
What's In The Box:
- 4-Channel power amplifier
- 6.5' AC power cord
- 40" Mono-minijack cable
- 2 Rack-mount ears
- 2 Pan-head screws
- 4 Counter-sunk screws
- 2 Power button masking rings
- Owner's manual on CD-ROM
- Installation Guide
- Warranty Information
- Rack Frame Assembly Instructions
- Important Safety Instructions
- Addendum
