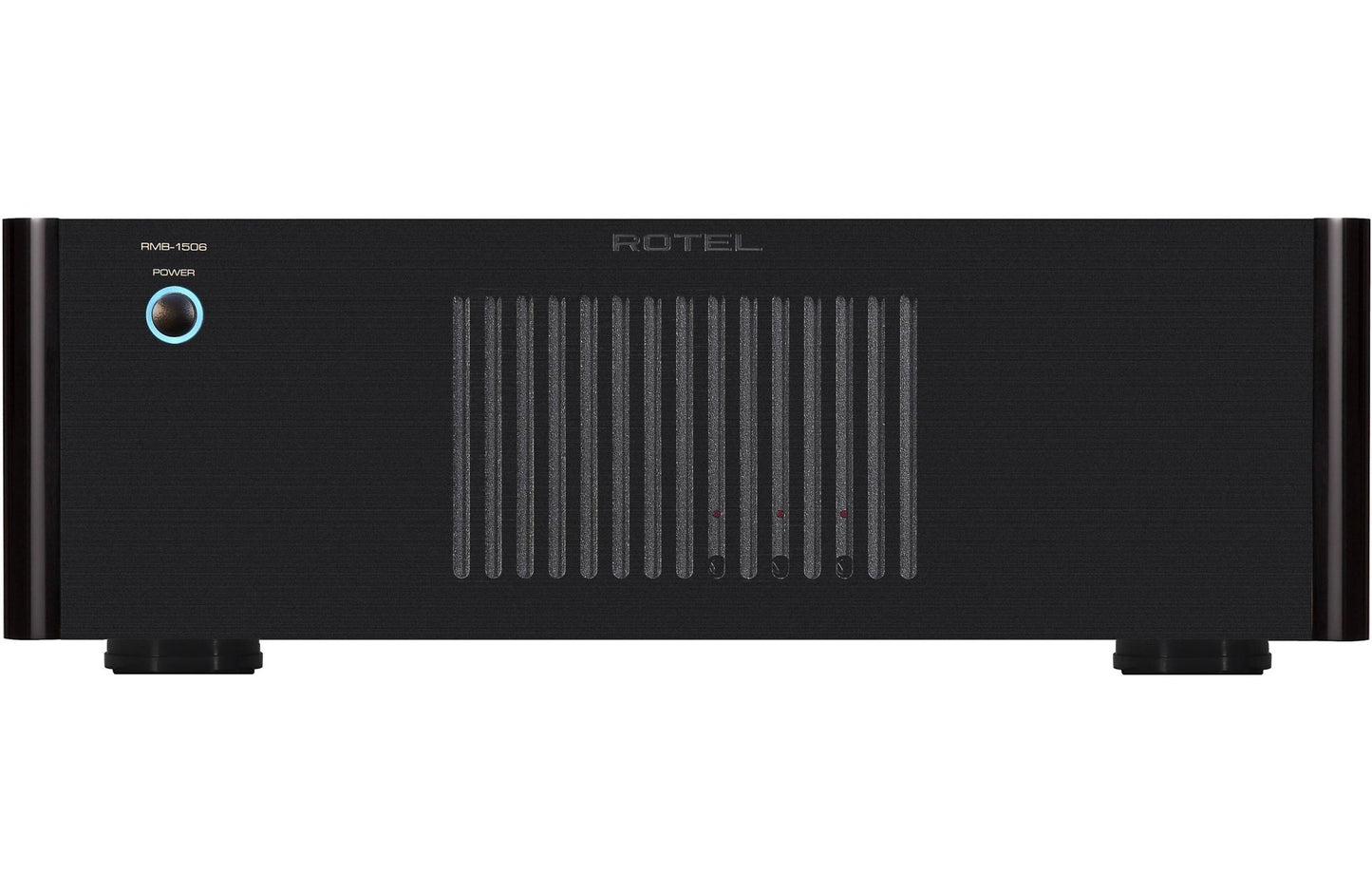

Rotel RMB-1506 6-Channel Power Amplifier

Price Match Guarantee

Rotel RMB-1506 6-Channel Power Amplifier

The RMB-1506 is a robust and refined multichannel amplifier, delivering 6 channels at 50 watts per channel. Designed for installations with fewer audio zones, it offers reliable performance and high-quality sound in a compact, efficient package—perfect for bringing music to select areas of the home without compromise.

Product Highlights:

• 50 watts per channel into 8 ohms (20-20,000 Hz) at 0.03% THD with all channels driven
• 80 watts per channel into 4 ohms
• Class AB design

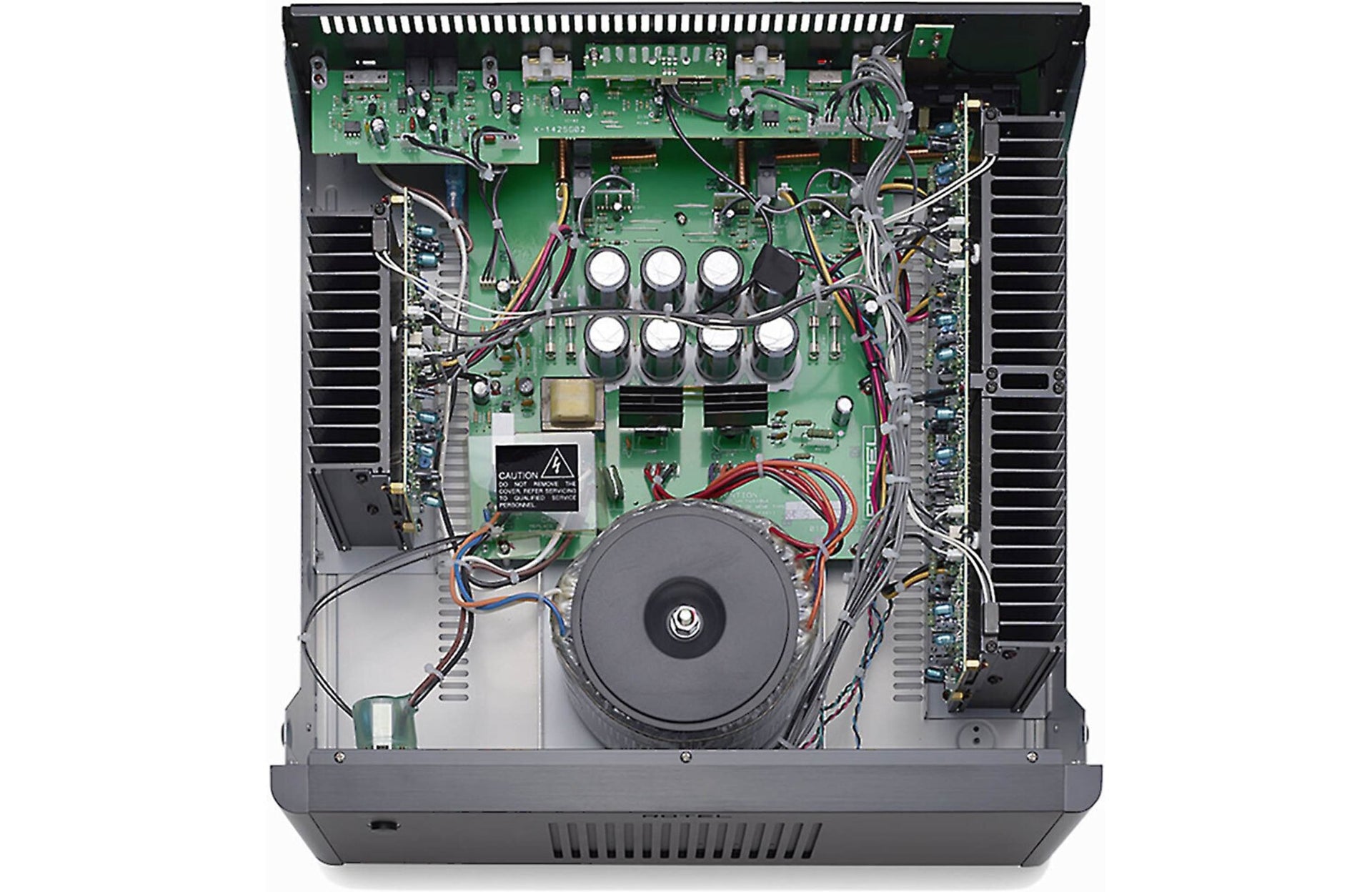

• Custom made toroidal transformer for stable, noise-free performance
• Frequency response: 10-100,000 Hz (±1dB)
• Signal-to-noise ratio: 115 dB
• Thermal and overcurrent protection circuitry
• Detachable power cord
• Rack mounting ears included

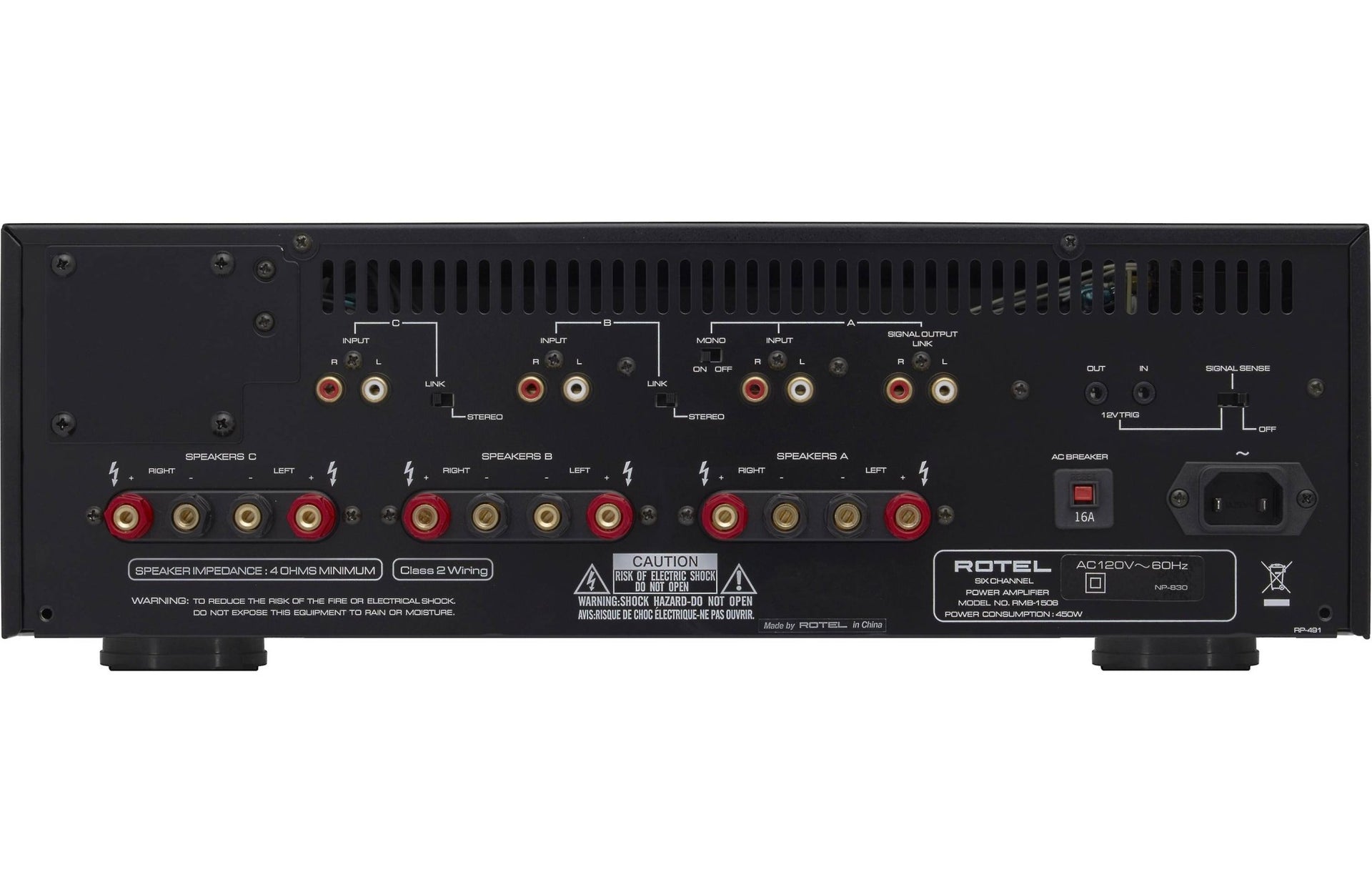

Connections:

• Three unbalanced stereo RCA inputs for A/B/C channel pairs
  • Mono switch links left and right channels for feeding both with a single mono RCA connection
  • Link switches send A channel input signals to the B and/or C channels
  • Independent input level controls on front panel (adjustable via small flat-blade screwdriver)
• Unbalanced stereo RCA signal output link
  • Passes left/right A channel input signals to a connected component
• 5-way binding post terminals for A/B/C speakers
• 3.5mm 12-volt trigger in/out with signal sensing switch

Dimensions and warranty:

• 17"W x 5-3/4"H x 16-3/4"D (3U rack spaces)
• Weight: 34 lbs.
• Warranty: 5 years
• Our 30-day money back guarantee
• MFR # ROT1030006

What's In The Box:

• 6-Channel power amplifier
• 6.5' AC power cord
• 40" Mono-minijack cable
• 2 Rack-mount ears
• 2 Pan-head screws
• 4 Counter-sunk screws
• 2 Power button masking rings
• Owner's manual on CD-ROM
• Installation Guide
• Warranty Information
• Rack Frame Assembly Instructions
• Important Safety Instructions
• Addendum
