JBL MA7100HP 7.2-Channel 8k Home Theater Receiver with Wi-Fi, Bluetooth, Apple AirPlay 2, Google Cast and Dolby Atmos

JBL MA7100HP 7.2-Channel 8k Home Theater Receiver with Wi-Fi, Bluetooth, Apple AirPlay 2, Google Cast and Dolby Atmos

The JBL MA7100HP high-performance AV Receiver delivers stunning realism with the latest 8K HDMI specifications and native 7-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. It is designed with a passion for music and movies, bringing both to life with true high fidelity. The MA7100HP features seven channels of low-noise Class D amplification for real world power to all channels.

Product Highlights:

Power and processing:

• 7-channel amplifier
• 125 watts per channel into 8 ohms (20-20,000 Hz) at 0.5% THD
• 175 watts per channel into 4 ohms (20-20,000 Hz) at 0.5% THD
• Dolby® and DTS® surround sound decoding
  • Dolby Atmos and DTS:X processing for use with in-ceiling or "height" speakers
• EZ Set EQ provides easy-to-use room equalization for optimized sound quality
  • Requires network connection
  • Separate microphone recommended for Android devices
• Optional Dirac Live room calibration
  • Requires purchase of separate license from Dirac
  • Requires PC or Mac and a third-party USB microphone

Digital and streaming music options:

• Built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services like Spotify® Connect and TIDAL
• Apple AirPlay 2 lets you stream directly from an iPhone® or iPad® and ask Siri to play Apple Music
  • Supports multi-room audio with compatible wireless speakers
• Google Cast for wireless music streaming from compatible devices
• Built-in Bluetooth aptX® HD and aptX Adaptive for wireless music listening with smartphones, tablets, and compatible computers
• Bluetooth transmission for sending audio from the receiver to Bluetooth-enabled headphones
  • Play audio through Bluetooth headphones only, or through Bluetooth headphones and connected speakers simultaneously
• Plays high-resolution digital music files (PCM up to 24-bit/192kHz resolution)
• Works as a Roon player (requires subscription and Roon Core running on your network)
  • Roon Core is media server software that runs on your computer, NAS drive, or other compatible hardware
• Works With SmartThings
  • Requires setup with a SmartThings Hub and the SmartThings app
• Using this receiver for music only? You may need to connect a TV or monitor via HDMI temporarily for initial setup.

Multi-room audio/video:

• Dual-room/single-source output
  • 2nd HDMI output can send video signal to another TV
  • Amp assign function lets you use rear surround/height speaker outputs for front height or middle height speakers, Zone B (labeled as Zone 2), or bi-amping front speakers
  • Using powered 2nd-room output allows 5.2-channel sound in main room
  • Line-level 2nd-room output for use with a separate amplifier or powered speakers
  • Party mode lets you play music through 5 speakers in your main room and downmixed stereo in your 2nd room

HDMI features:

• HDMI 2.1 audio/video switching: 6 in, 2 out
  • Three connections support 8K/60Hz and 4K/120Hz video
  • All connections support 4K/60Hz video
  • HDCP 2.3 technology ensures compatibility with 4K Ultra HD sources and TVs
  • Supports HDR10, HDR10+ and Dolby Vision
  • One connection supports ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel)
  • eARC receives uncompressed surround sound signals including Dolby Atmos and DTS:X via the HDMI connection with your compatible TV
• Gaming-optimized video processing technologies for a smooth, lag-free gaming experience
  • Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), and Quick Frame Transport (QFT) reduce or eliminate lag and frame tearing

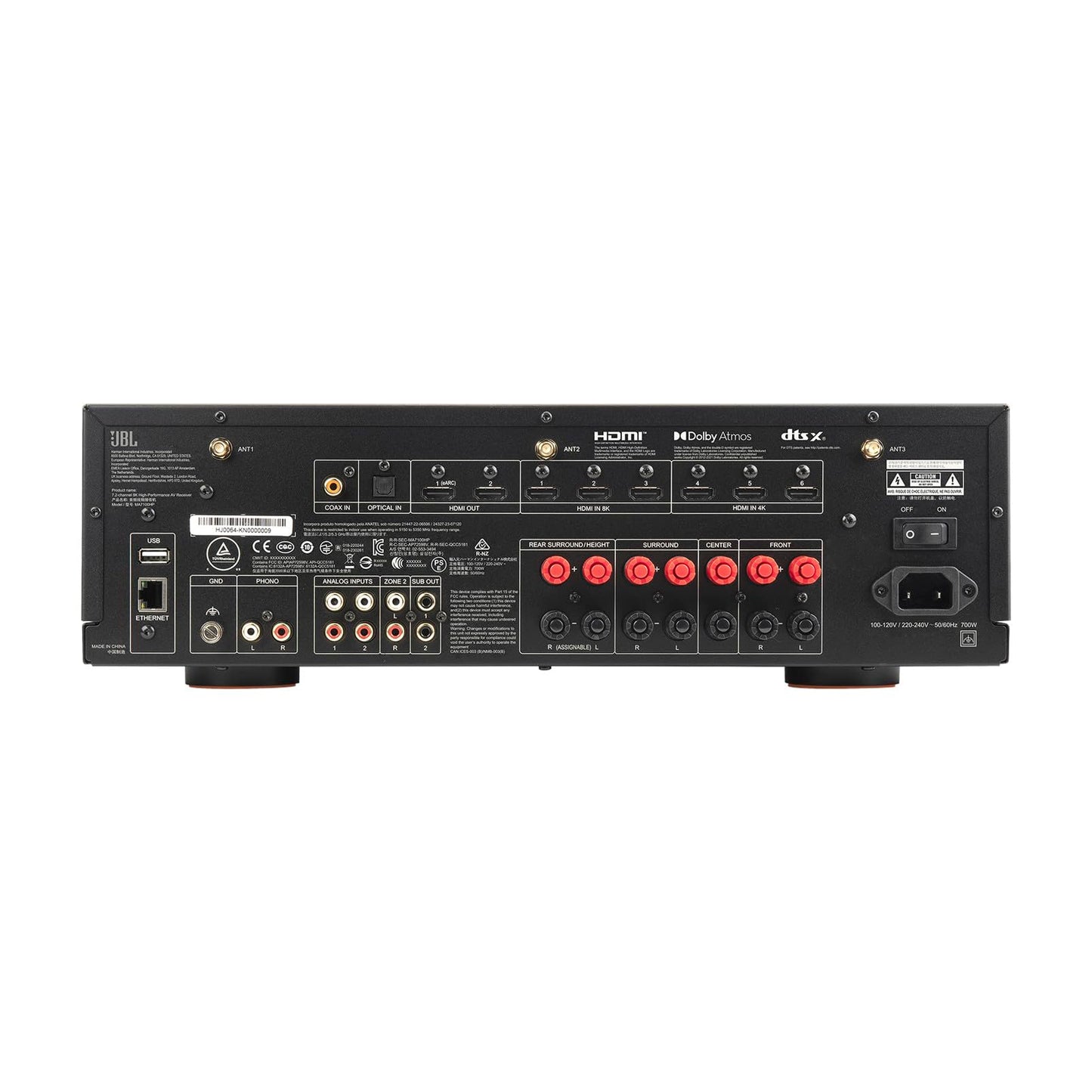

Other connections:

• Digital audio inputs: 1 optical and 1 coaxial
• 2 analog stereo RCA line-level audio inputs
• Moving magnet (mm) phono input for connecting a turntable
• Zone B stereo RCA preamp outputs (labeled as Zone 2) send main zone audio to another room
• rear-panel USB-A port for audio playback from USB flash drive
• Outputs for 7 speakers (Front L/R, Center, Surround L/R, Rear Surround/Height Back L/R)
• Dual mono RCA subwoofer outputs
• Ethernet port for wired network connection
• Detachable power cord

General features:

• Free JBL Premium Audio remote app lets you use your Apple® or Android™ device as a Wi-Fi remote and to calibrate the sound quality to your unique room conditions
• Setup assistant guides you through the initial connection process and settings
• Intuitive on-screen guide

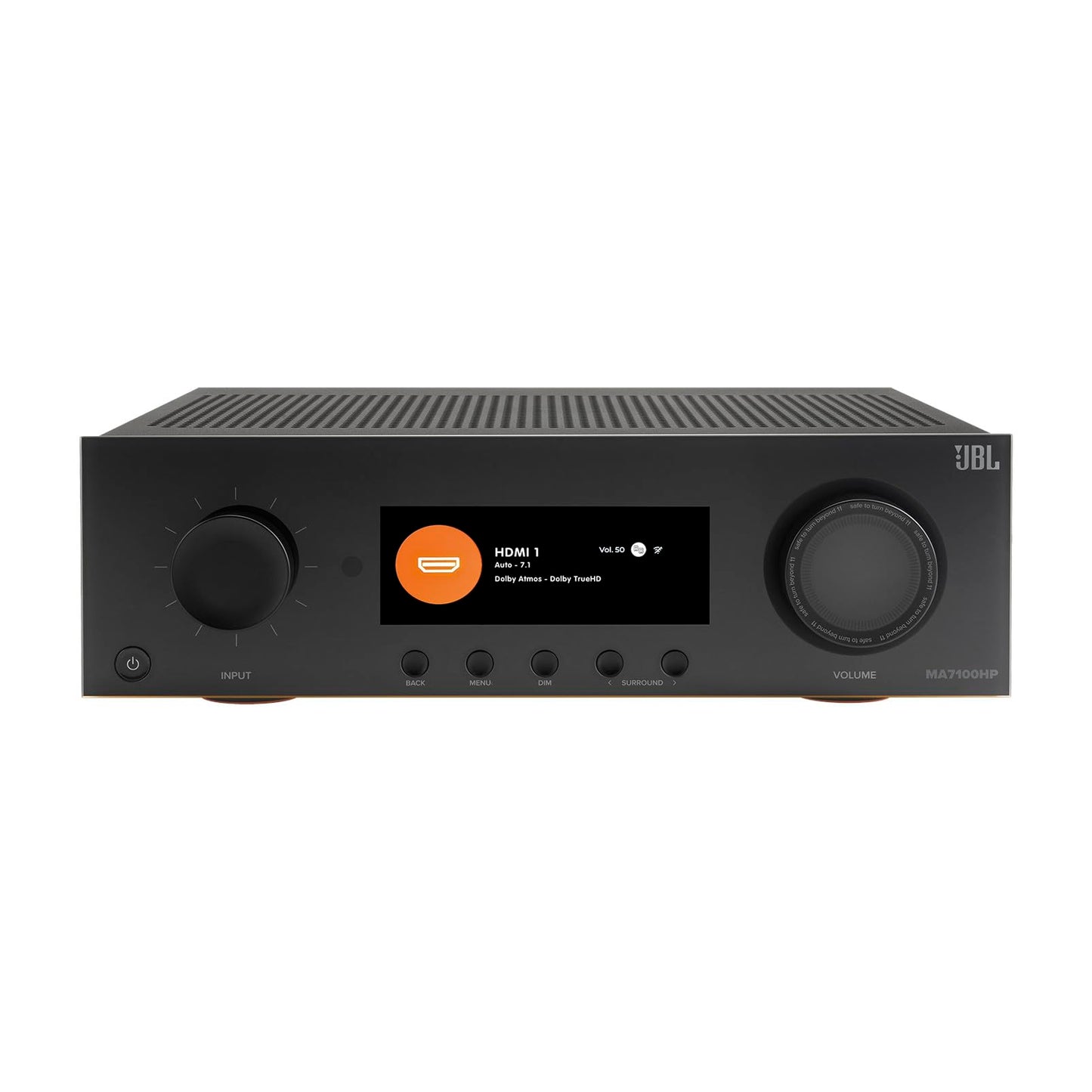

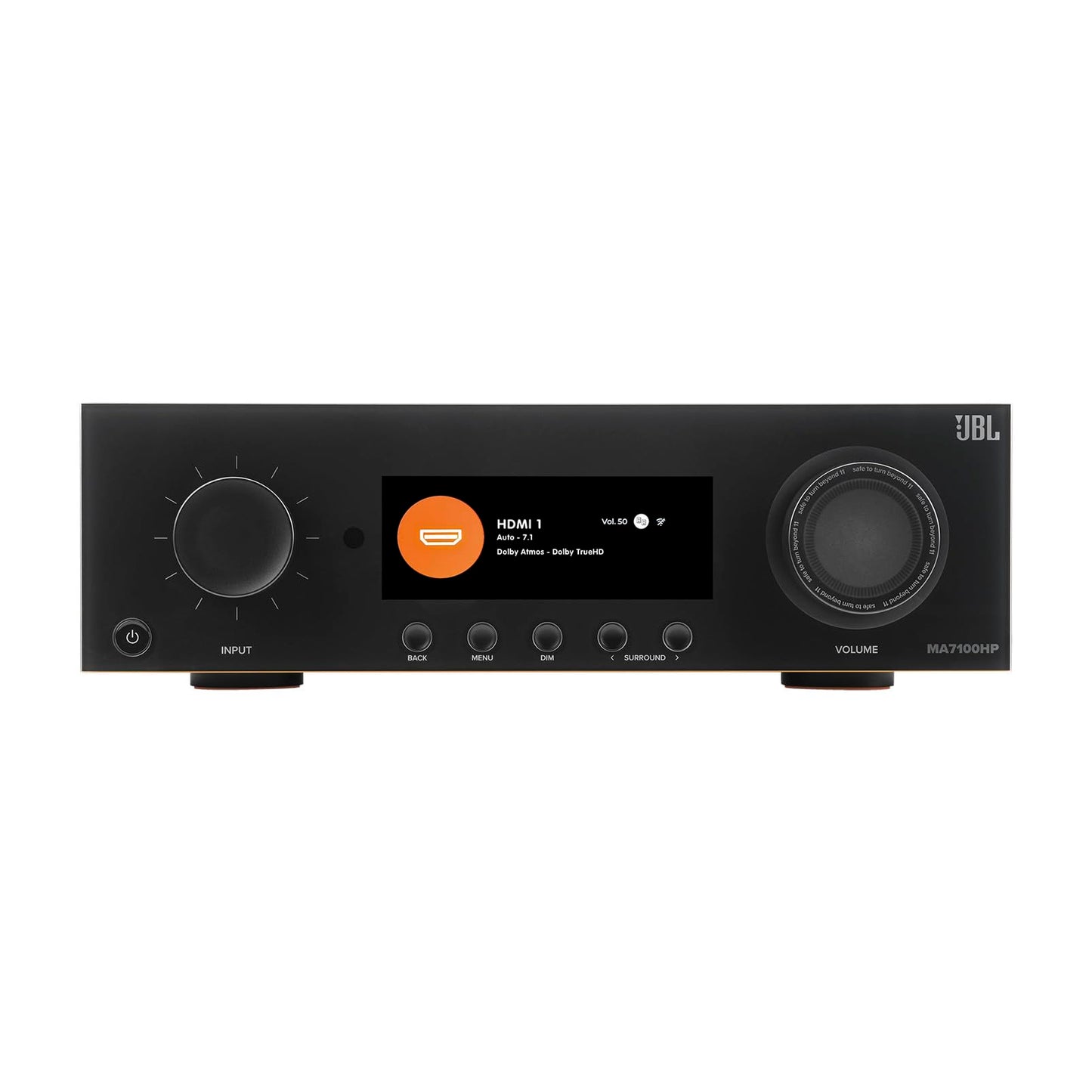

• Full color, dimmable front-panel display

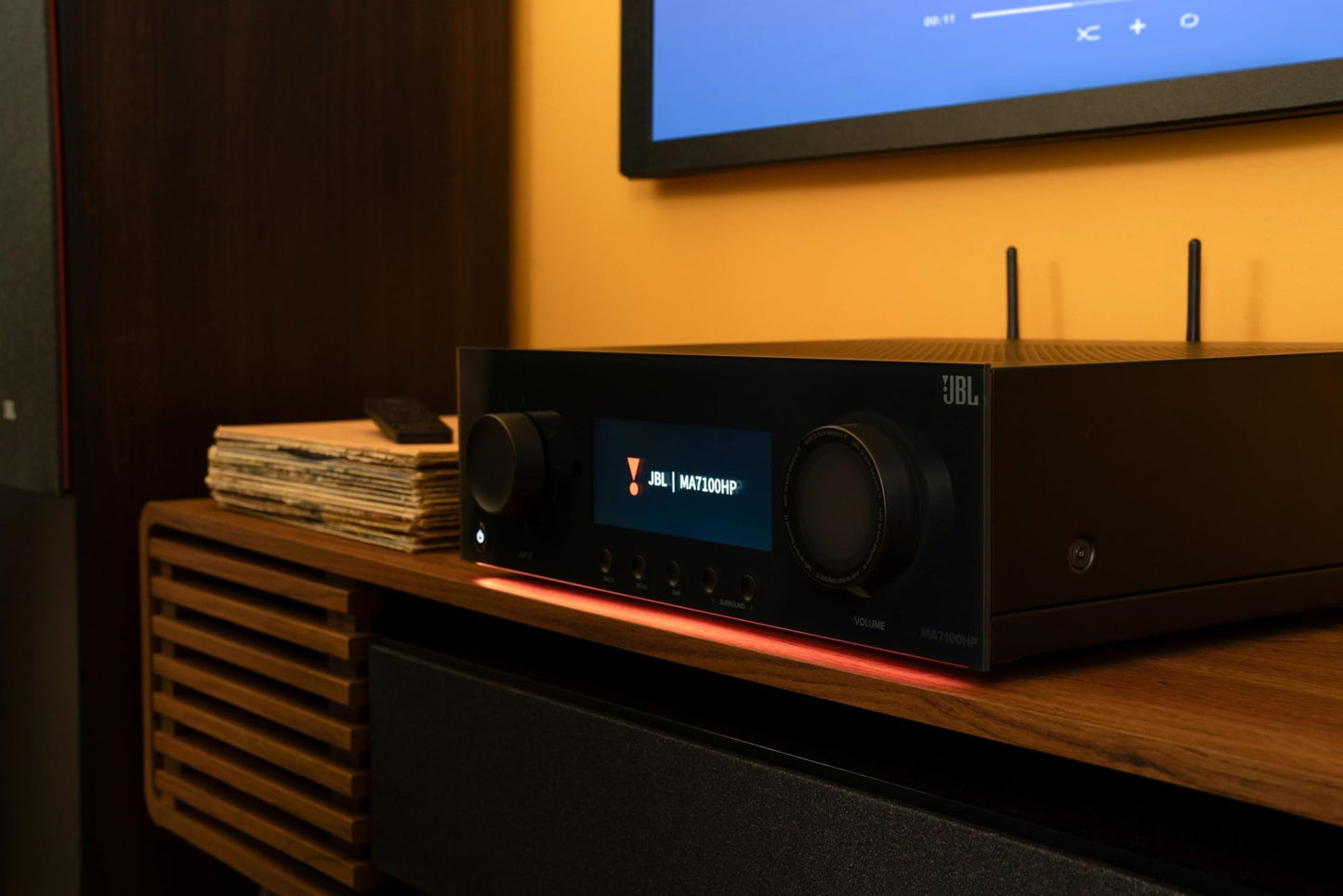

• Customizable front-panel LED underglow
• HDMI standby pass-through allows HDMI switching without powering up receiver
• Built-in support for select third-party home automation systems
• IR remote control

Dimensions & other info:

• 17-1/16"W x 5-5/16"H x 16-11/16"D (7-5/8"H with Wi-Fi antennas raised)
• Weight: 16.4 lbs.
• Warranty: 2 years
• Our 30-day money back guarantee
• MFR # JBLMA7100HPBLKAM

What's In The Box:

• JBL MA7100HP owner's manual

• AV receiver
• 68" AC power cord

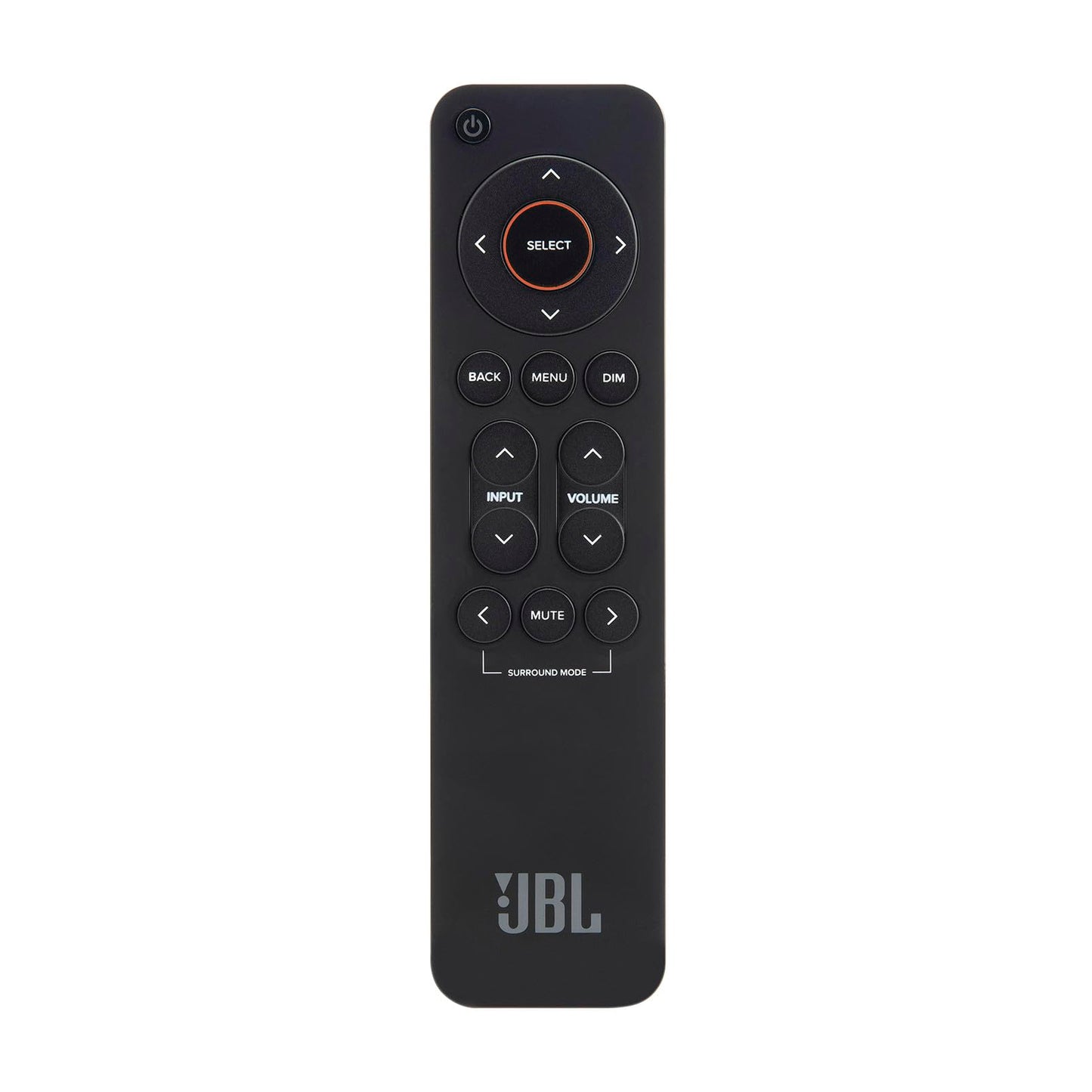

• Remote control
• 2 "AAA" batteries
• 3 Antennas
• Quick Start Guide
• Important Safety Instructions
