Crown XLi3500 Two-Channel, 1350-Watt at 4 Power Amplifier

Original price $ 909.00 - Original price $ 909.00
Original price
$ 909.00
$ 909.00 - $ 909.00
Current price $ 909.00

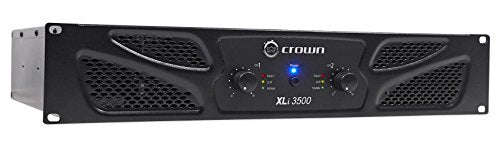

Crown Audio XLi 3500 Stereo Power Amplifier

Designed for musicians, DJs, entertainers, houses of worship, discos, and other venues, the Crown XLi 3500 Stereo Power Amplifier feature both RCA and XLR inputs as well as speakON and binding post outputs. The amplifier includes a user-selectable input sensitivity of 0.755V or 1.4V, stereo/parallel-bridge-mono modes, power/fault/signal presence/clip LED indicators, forced-air cooling, and protection against shorts, no-load, on/off thumps, and interference from radio frequencies in the environment. Drawing from over six decades of experience in building amplifiers, the unit is capable of delivering 1350W per channel at 4 ohms, 1000W per channel at 8 ohms, and 2700W at 8 ohms in bridged-mono mode..

Product Highlights:

  • Power Amplifier
  • Number of Channels 2
  • Power Rating 4 Ohms:
  • 2 x 1350 W RMS per Channel (1 kHz, 0.5% THD)
  • 8 Ohms:
  • 2 x 1000 W RMS per Channel (1 kHz, 0.5% THD)
  • 8 Ohms:
  • 1 x 2700 W RMS Bridged (1 kHz, 0.5% THD)
  • Amplifier Class Class-D
  • Load Impedance / Voltage 4 / 8 Ohms per Channel
  • Performance
  • Protections Circuit Breaker, On/Off Muting, RF, Reactive/Mismatched Load, Short Circuit, Thermal
  • Frequency Response 20 Hz to 20 kHz +0/-1 dB (at 1 W)
  • Damping Factor >200 at 8 Ohms
  • Input Sensitivity 0.78 or 1.4 V (at 8 Ohms)
  • Input Impedance 10 Kilohms (Unbalanced)
  • 20 Kilohms (Balanced)
  • Max Gain 36 dB
  • SNR >100 dB
  • THD <0.5% (Full Range, Below Rated Power)
  • Intermodulation Distortion <0.35%
  • Crosstalk -75 dB (Below Rated Power, at 1 kHz)
  • -59 dB (Below Rated Power, at 20 kHz)
  • Slew Rate >10 V/μs
  • Signal Processing
  • Crossover Yes
  • Connectivity
  • I/O 2 x Binding Post Pair 1-Pin Speaker Output
  • 2 x speakON NL4 Speaker Output
  • 2 x XLR 3-Pin Female Balanced Line Input
  • 2 x RCA TS Unbalanced Line Input
  • Digital I/O None
  • USB None
  • Power
  • AC Input Power 120 VAC, 60 Hz
  • 220 VAC, 50 / 60 Hz
  • 230 to 240 VAC, 50 / 60 Hz
  • AC Power Connector IEC 15 A
  • Physical
  • Display & Indicators 1 x Blue LED (Power)
  • 1 x Green LED (Signal, per Channel)
  • Yellow LED (Clip, per Channel)
  • Red LED (Fault, per Channel)
  • Rackmount Size 2 RU
  • Cooling Heatsink
  • Fan (Variable Speed)
  • Dimensions 19.0 x 3.5 x 14.4" / 48.3 x 8.9 x 36.6 cm
  • Weight 43 lb / 19.5 kg
