Kanto PMX680 Full-Motion Mount for TVs 39"- 80"

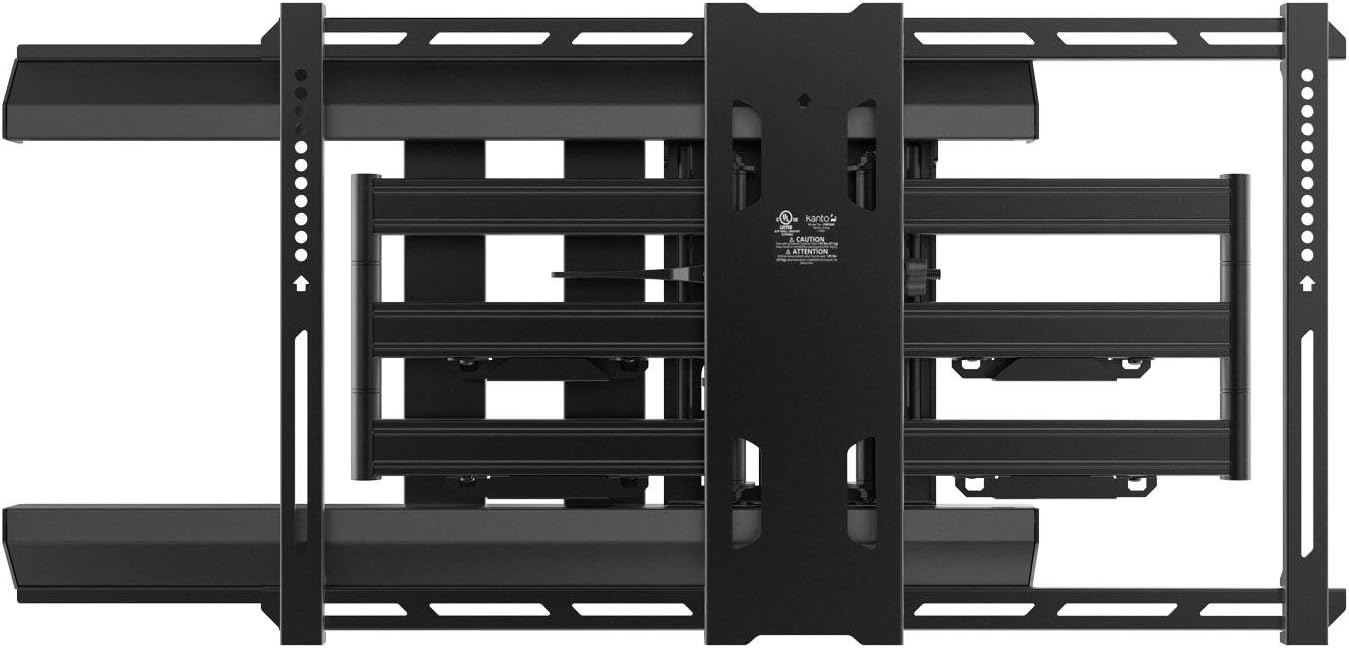

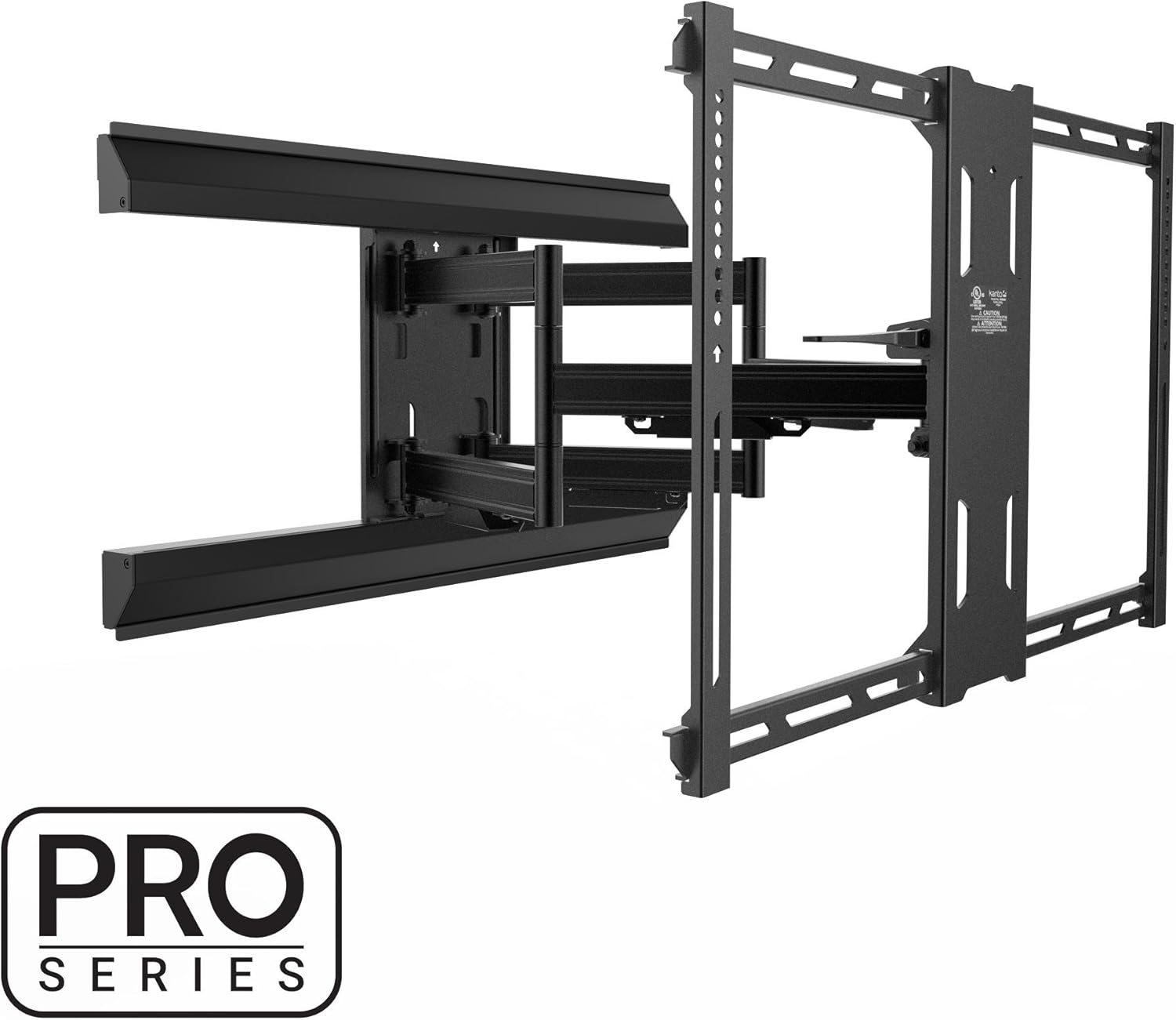

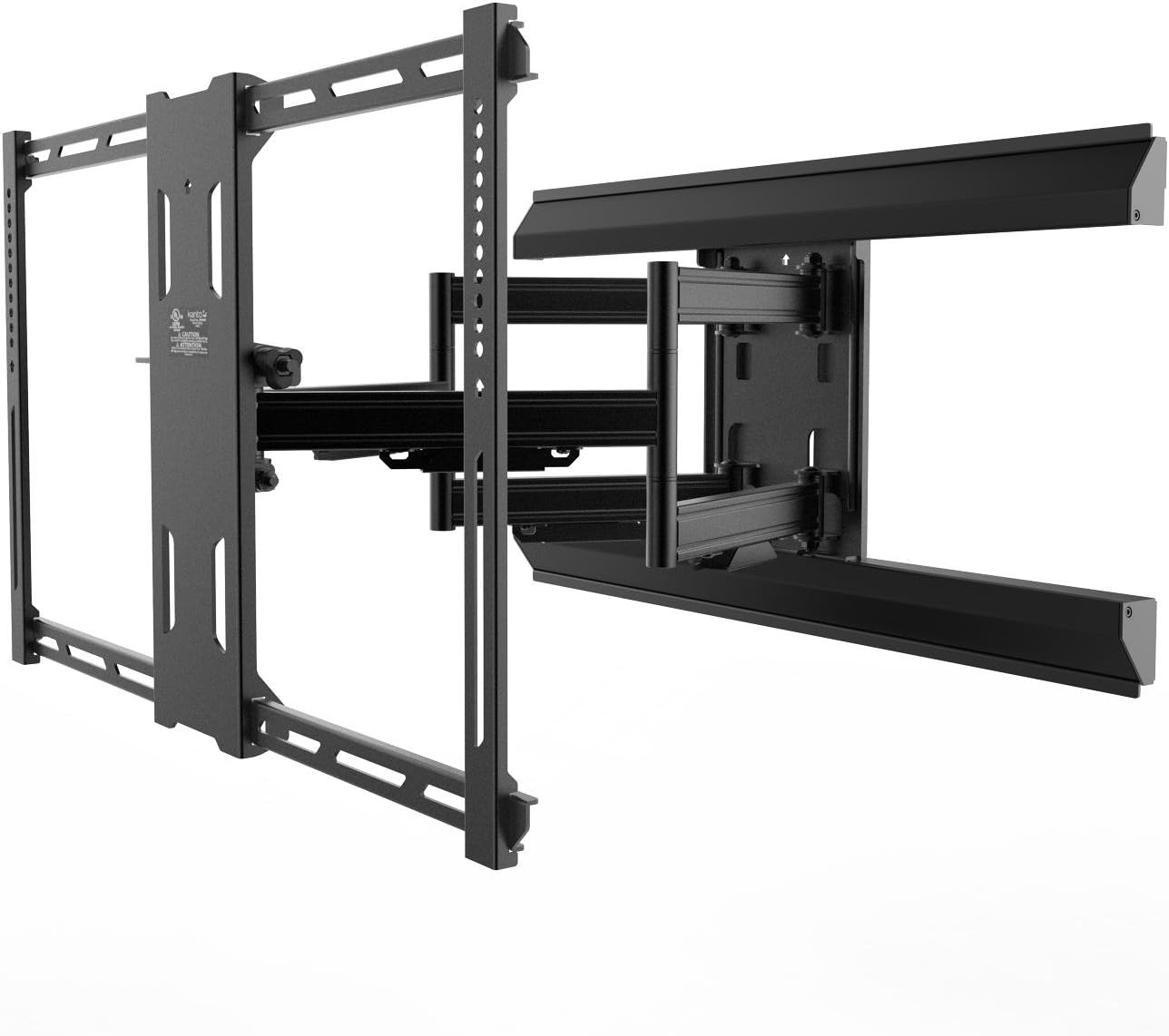

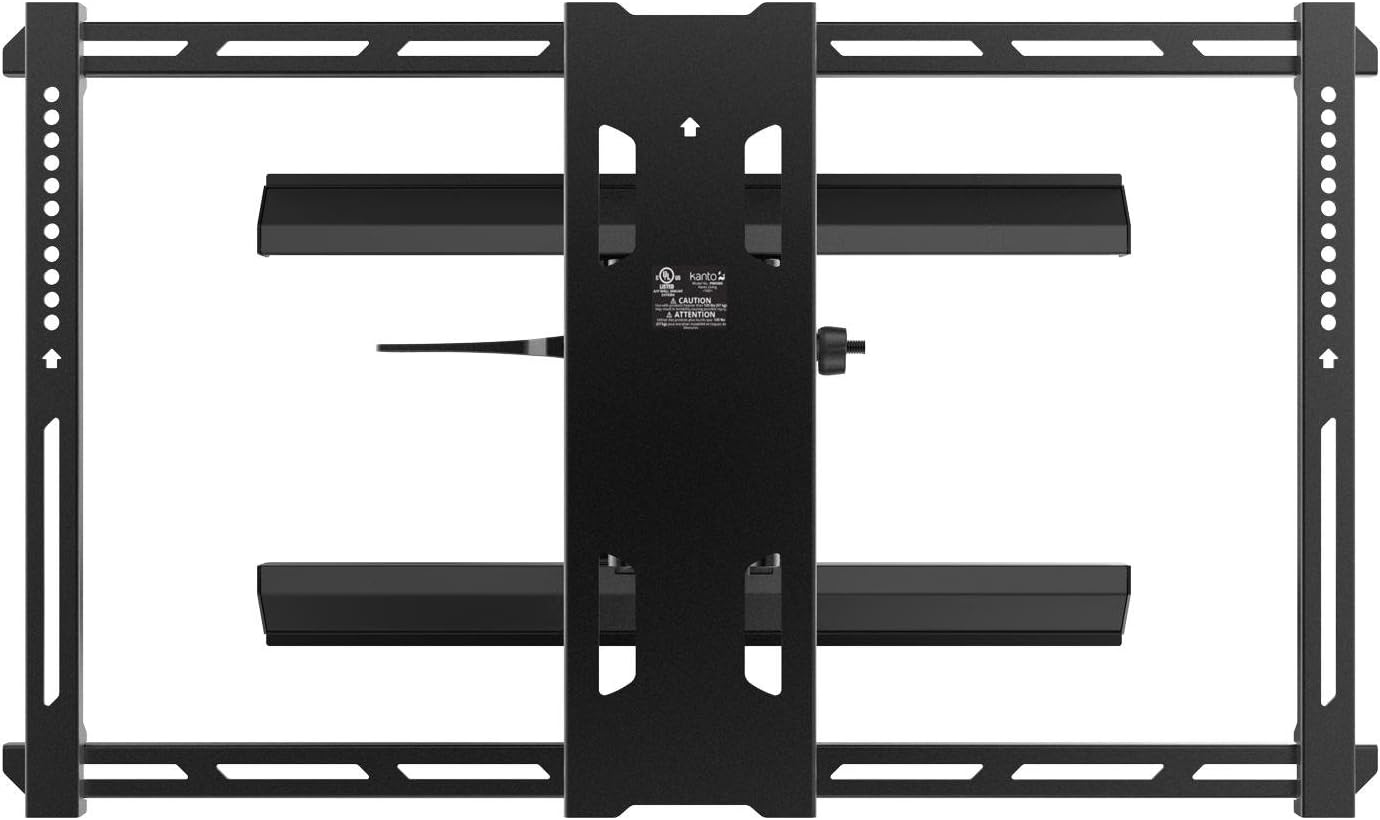

The black Kanto PMX680 Full-Motion Wall Mount is designed to mount flat-panel displays measuring 39 to 80" and has a maximum load capacity of 125 lb. The mount is compatible with displays that have a 200 x 100 to 700 x 400mm mounting pattern. Its distance from the wall can range from 2.5 to 24", with a horizontal offset of 18", and it provides -3 to 12° of tilt, up to 180° of swivel, and has adjustable horizontal leveling.

Product Highlights:

• Designed for TVs 39"-80"
• Supports up to 125 lbs.

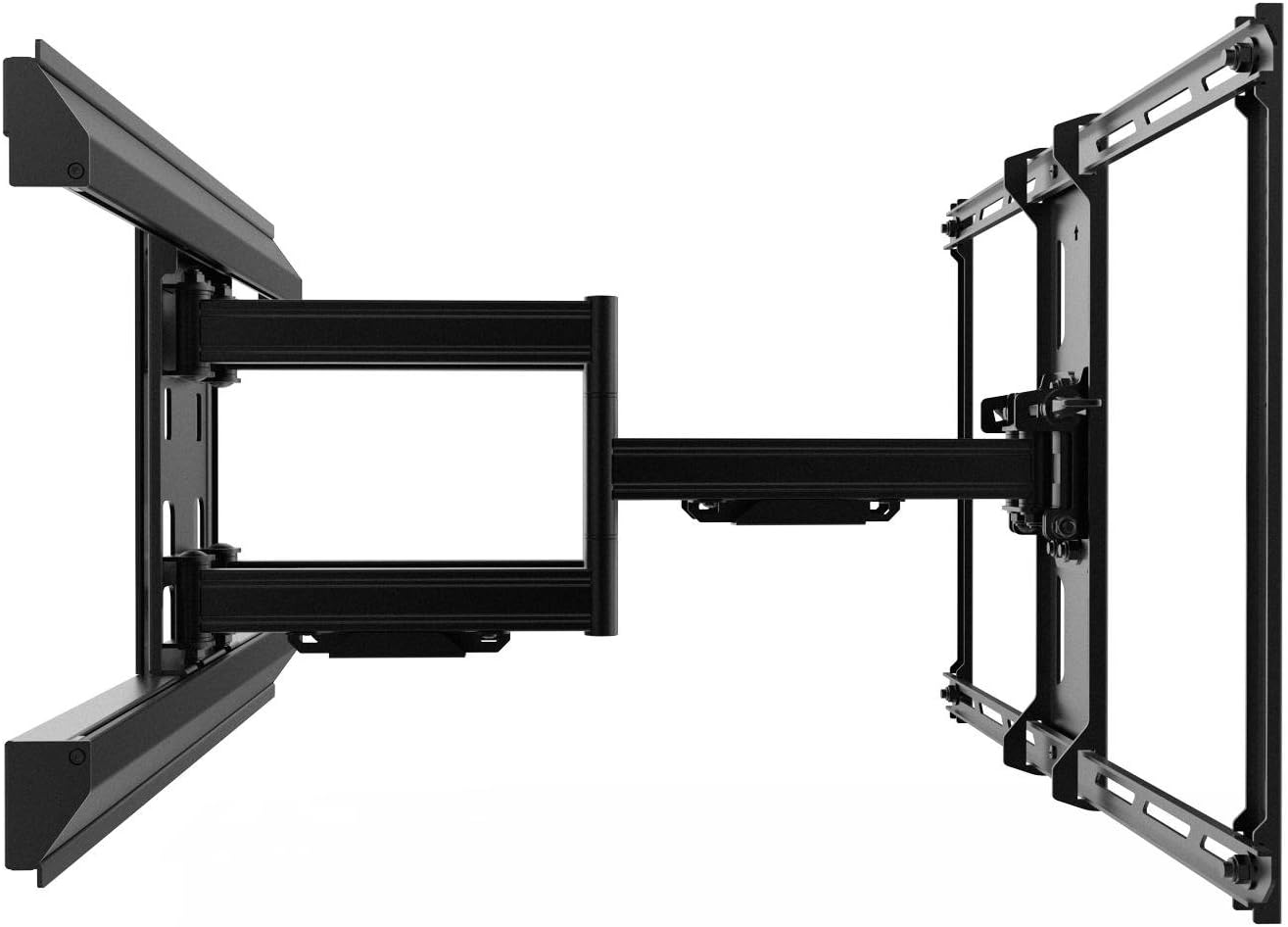

• Articulated arms extends TV 2-1/2" to 24-1/8"

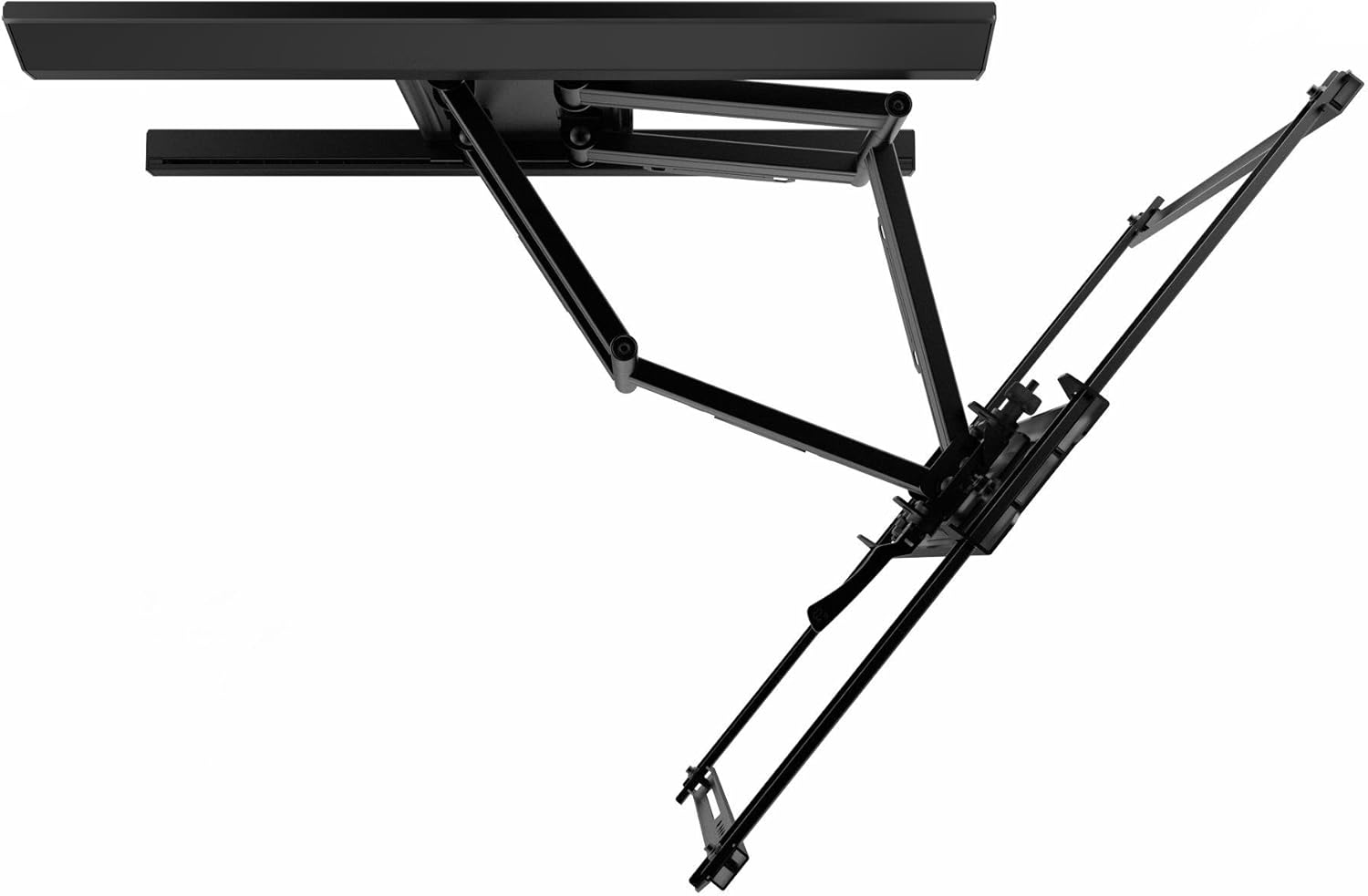

• Swivel range: 180°

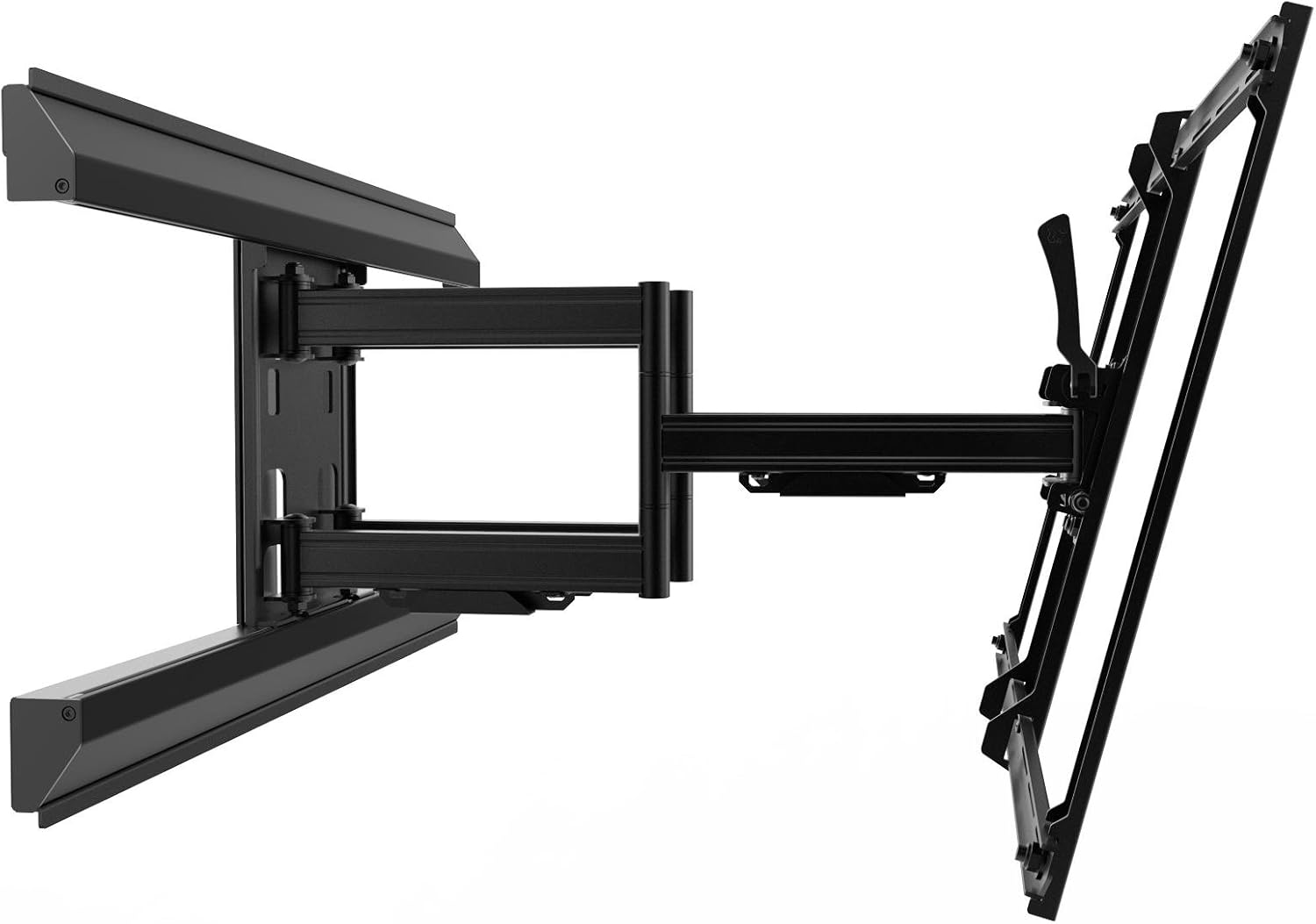

• Tilt range: -12° to +3°
• Horizontal offset: up to 9" left or right
• Hollow raceways secure cables and cords to arms

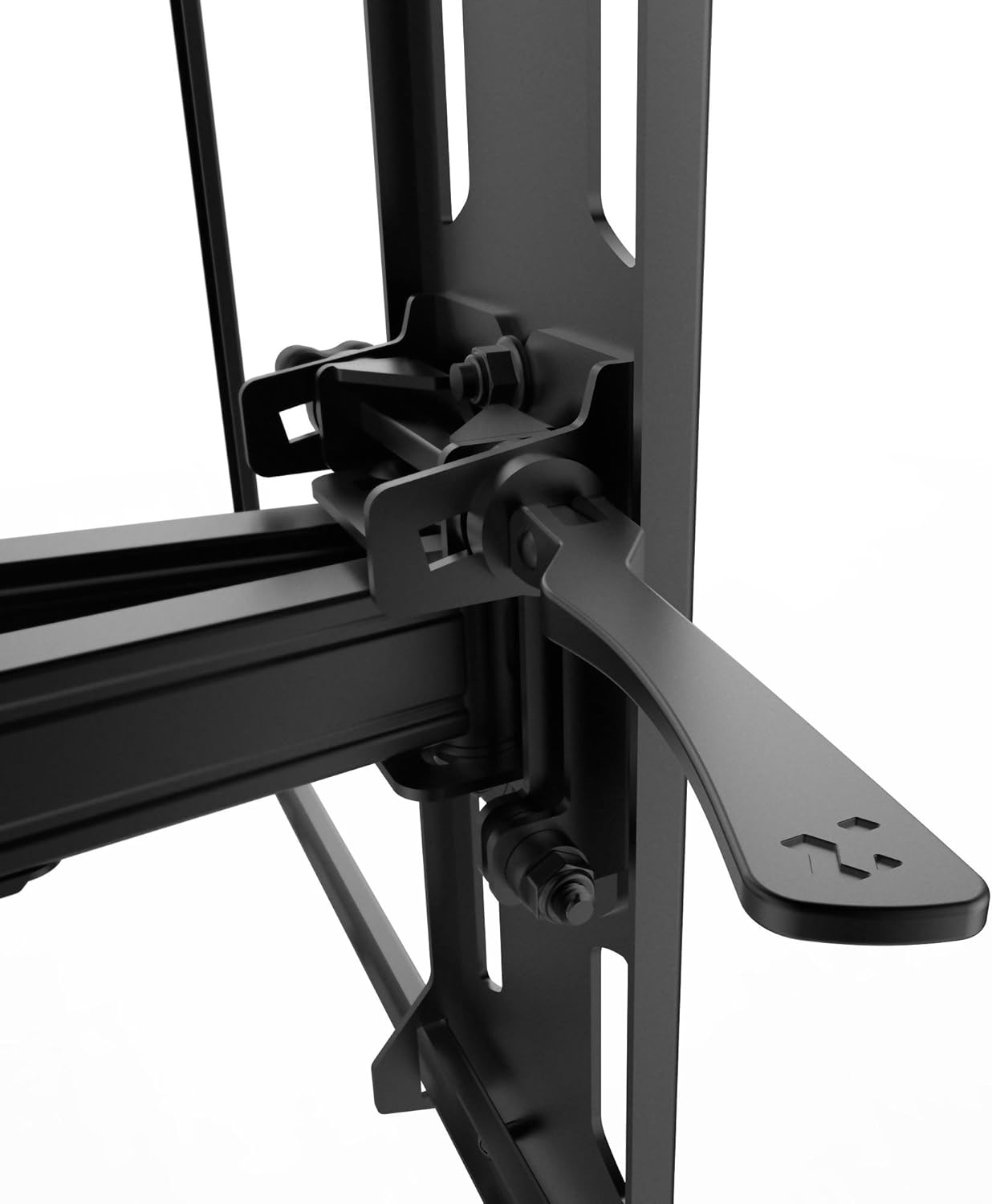

• Wall plate accommodates up to 24" stud spacing
• Stud mounting required
• Mounting hardware included
• Solid steel construction with powder coated finish
• 28-15/16"W x 15-13/16"H x 2-1/2"-24-1/8"D
• Weight: 32 lbs.
• Warranty: 10 years
• Our 30-day money back guarantee
• MFR # PMX680

What's In The Box:

• Wall-plate bracket with articulating arm
• TV center bracket
• 2 TV horizontal brackets
• 2 TV vertical brackets
• Four M5x12mm bolts
• Four M5x30mm bolts
• Four M6x16mm bolts
• Four M6x35mm bolts
• Four M8x25mm bolts
• Four M8x40mm bolts
• Four 5mm spacers
• Four 10mm spacers
• Four 14mm spacers
• Four M5/M6 washers
• Ten M8 washers
• Six M8x65mm lag-bolts
• 6 Concrete-anchors
• 2 Hex-keys
• User Manual
• Mounting Template
