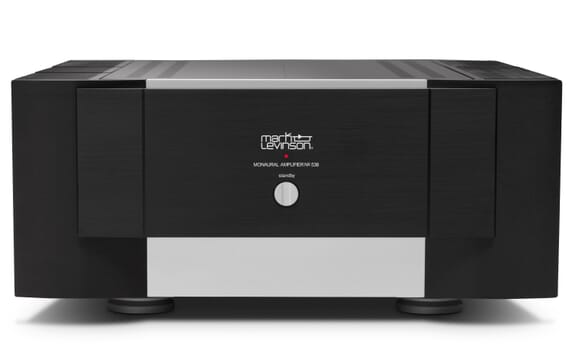

Mark Levinson No.536 Mono Power Amplifier

Original price $ 18,500.00 - Original price $ 18,500.00
Original price
$ 18,500.00
$ 18,500.00 - $ 18,500.00
Current price $ 18,500.00

Mark Levinson No.536 Mono Power Amplifier

Staggering Power, Miracle-Conjuring Sound: 400Wpc Mark Levinson № 536 Power Amplifier Turns Listening Experiences Into Aural Epiphanies, Features Fully Discrete and Differential Signal Paths. Voltage-stable independent of load, big, heavy, and able to provide gobs and gobs of high current to effortlessly drive practically any loudspeaker in existence: The Mark Levinson № 536 mono power amplifier turns listening experiences into aural epiphanies.

Product Highlights:

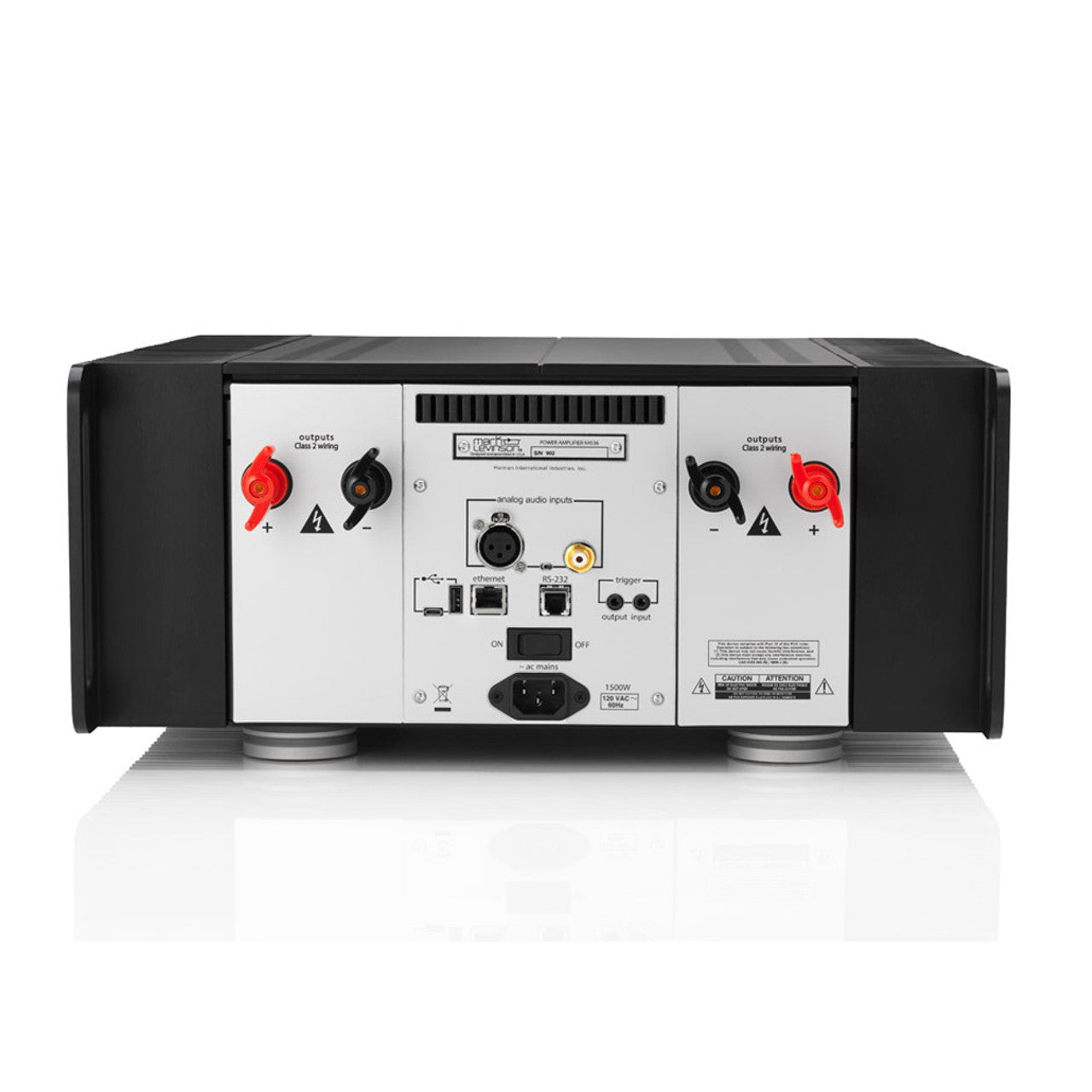

  • Input connectors: one Balanced, one single-ended
  • Speaker Connectors: two pairs of Hurricane loudspeaker outputs banana-plug sockets per channel
  • Control I/O: Ethernet, RS-232, Trigger In and Out, USB-A, Mini USB
  • Rated Output Power:
  • 400 wpc RMS @ 8Ω
  • 20Hz to 20kHz @ <0.3% THD, full output from 2.83VRMS
  • Frequency Response: 10Hz to 20kHz ±0.2dB
  • Signal-to-Noise Ratio: >85dB, reference level: 2.83 VRMS
  • Input Impedance: 60 kΩ balanced; 30 kΩ unbalanced
  • Voltage Gain: 26dB
  • Input Sensitivity: 2.83VRMS output at 142mVRMS input
  • Power Requirements: 100V~, 120V~, 230V~, factory set for destination country, 1500W
  • Dimensions (HWD): 7.75" x 17.75" x 20"
  • Weight: 114 lbs.

Rated at 400Wpc into eight ohms (and a knockout 800Wpc into four ohms), this U.S.A.-made beast performs its miracle-conjuring results by way of fully differential and fully discrete signal paths, mirror-imaged circuit topology, and high-current power supplies that count eight discrete, high-speed TO-220 Schottky rectifiers and 18 paralleled filter capacitors. № 536 boasts mind-warping storage capacitance of 169,200µF as well as a single, low-noise, 1800VA toroidal power transformer with separate secondary windings for each stage. Protection for № 536 and your loudspeakers arrives courtesy of redundant pathways and continual monitoring of the heatsink temperature, internal operating temperature, power-supply rail voltage, output voltage, and output DC level.
