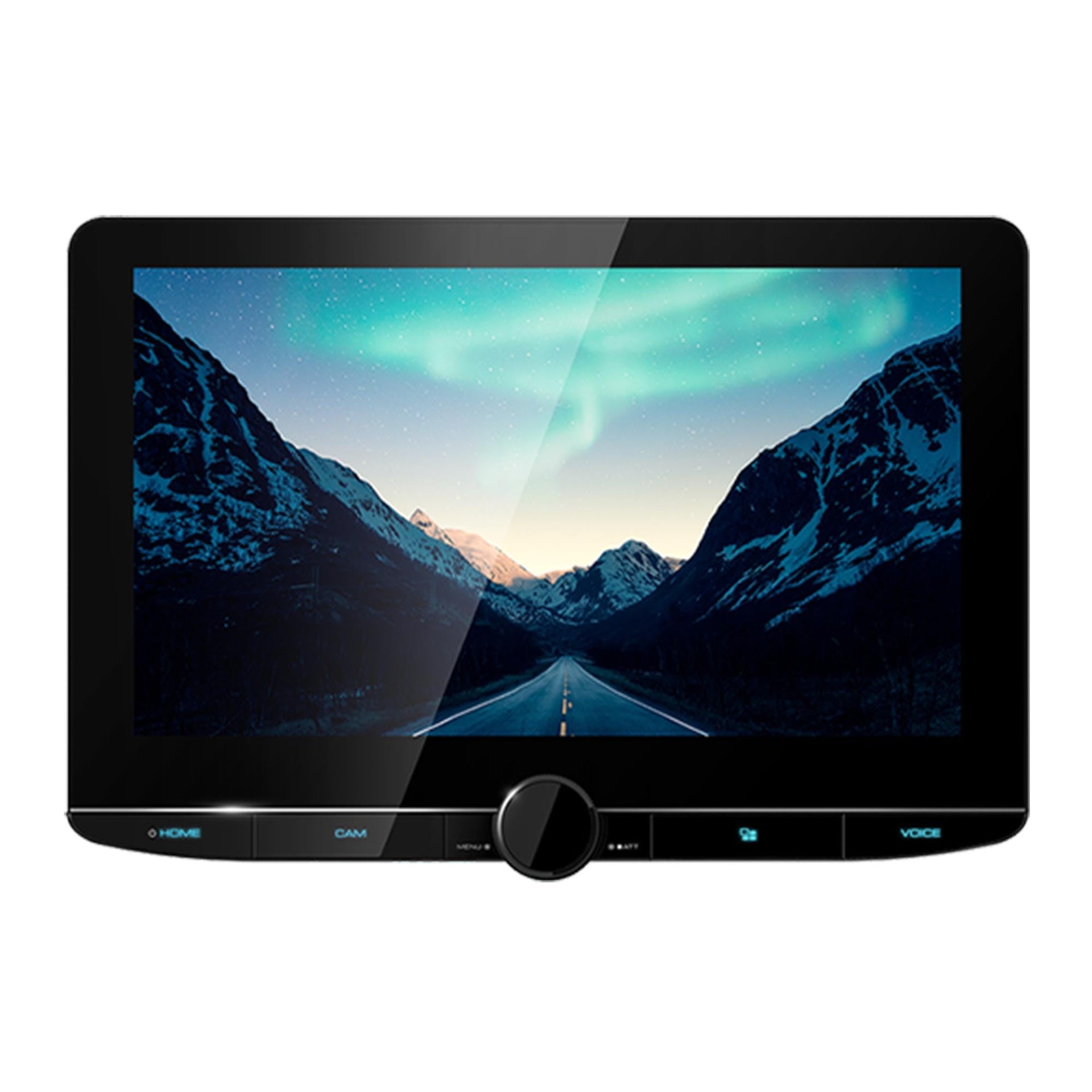

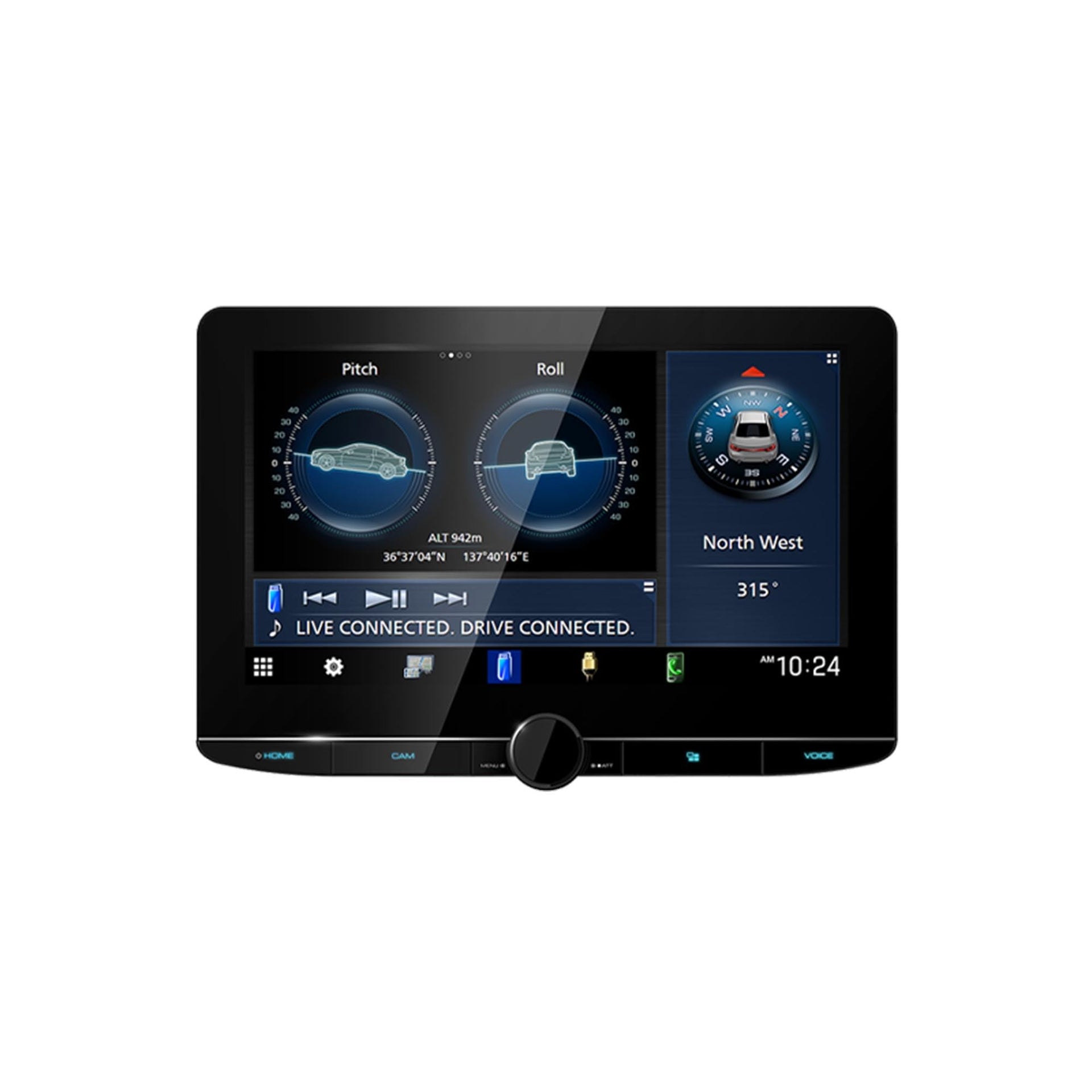

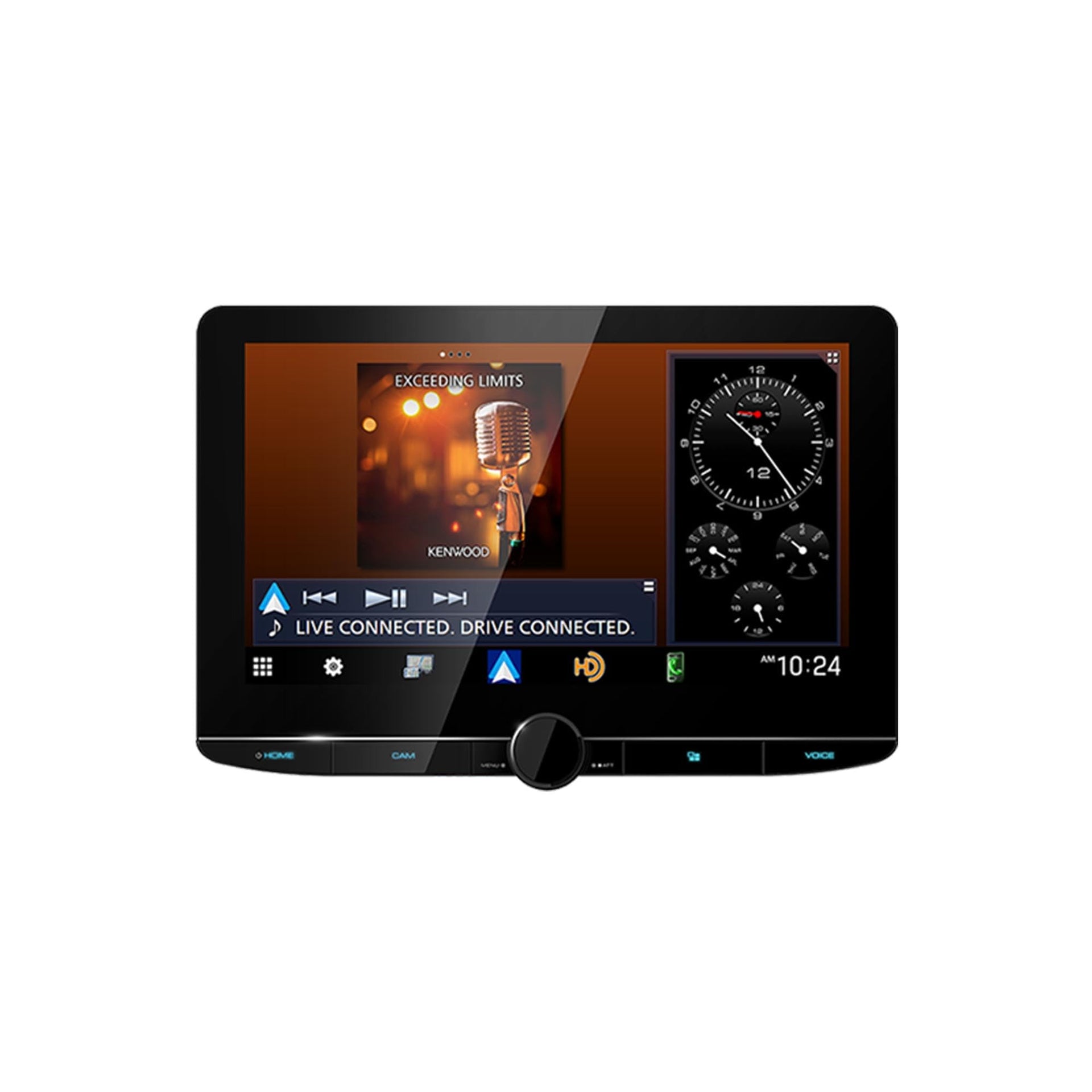

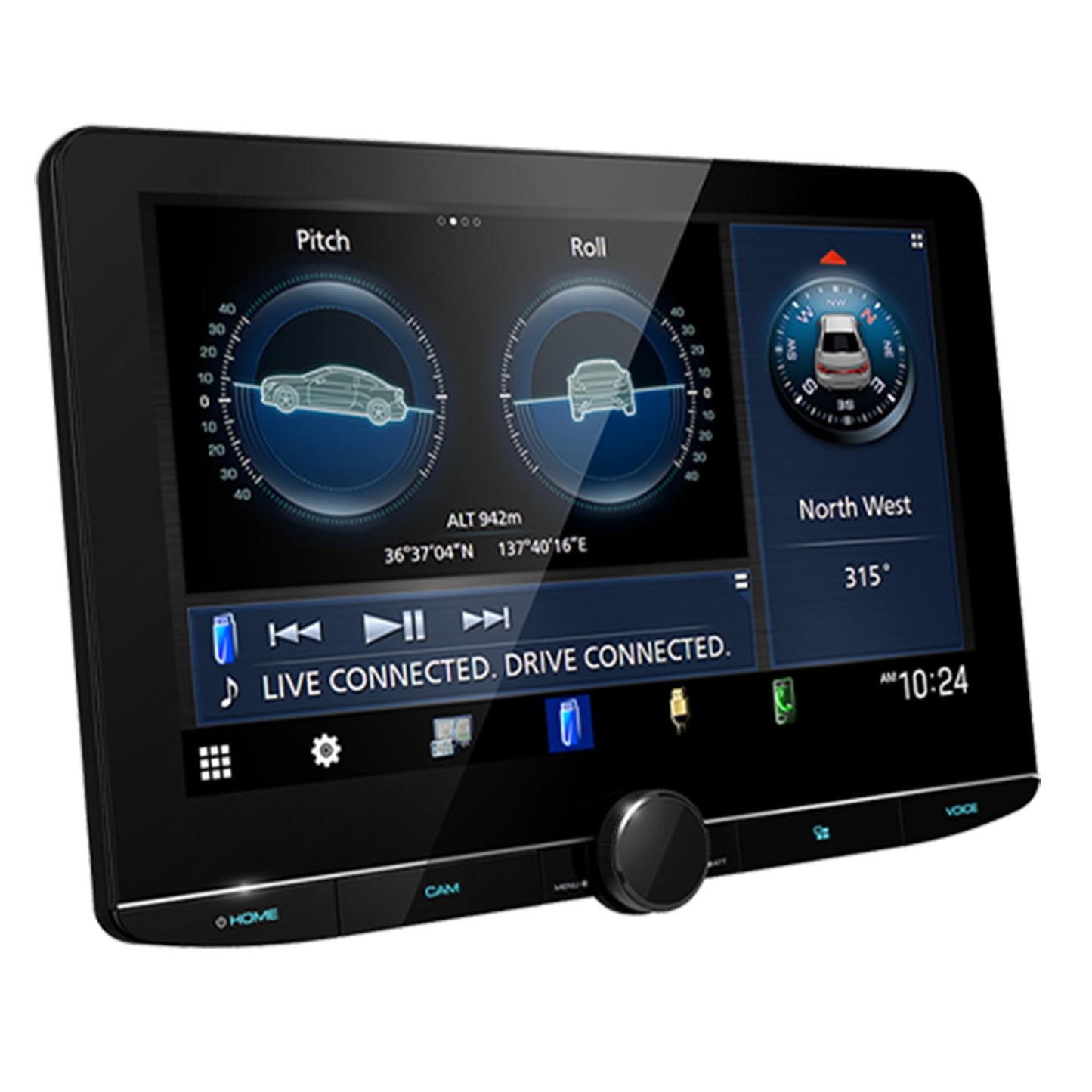

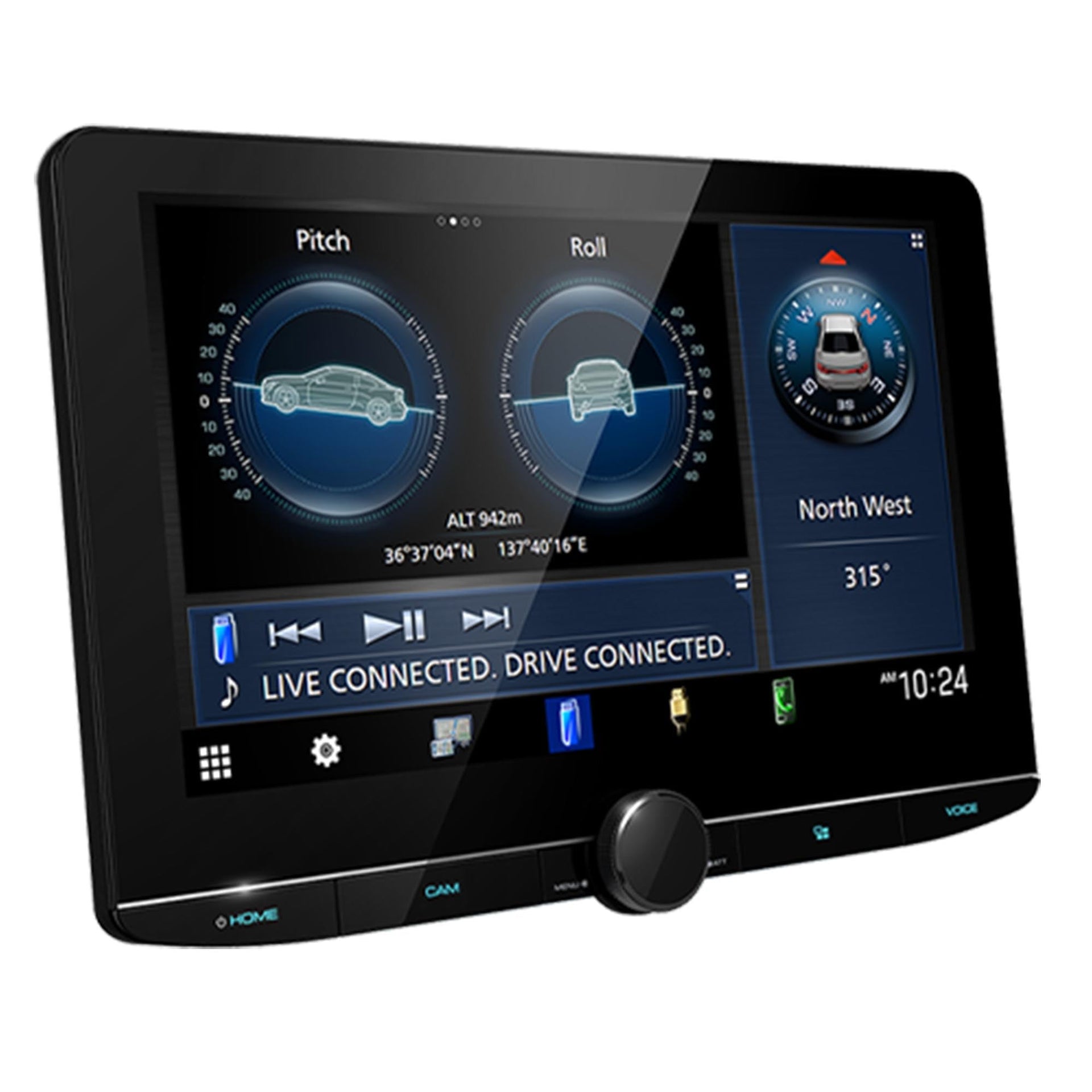

Kenwood DMX1058XR 10.1" Single-DIN Digital Multimedia Receiver with Wireless CarPlay and Android Auto

Kenwood Excelon Reference DMX1058XR 10.1” HD Touchscreen Car Stereo Receiver

The KENWOOD Excelon Reference DMX1058XR is built for drivers who demand more — more screen, more sound, and more control. Its massive 10.1” HD capacitive touchscreen delivers stunning detail and visibility, mounted on a 4-way adjustable floating panel to fit nearly any dashboard configuration. Enjoy wireless Apple CarPlay and Android Auto for seamless smartphone control. Use Bluetooth or built-in Wi-Fi to stream music, take hands-free calls, or mirror your phone screen wirelessly. With 4 camera inputs, including HD rear cam support, you'll have full visibility and parking assistance. As part of the Excelon Reference Series, this unit supports Hi-Res Audio playback, LDAC Bluetooth streaming, and offers an optical digital output for clean signal to your DSP or amplifier system. A 13-band EQ, digital time alignment, and 5V pre-outs give you precision sound control. It's also SiriusXM Ready, supports HD Radio, and includes HDMI input for even more content options. Designed for installers and audiophiles alike, the DMX1058XR works with iDatalink Maestro to retain steering wheel controls, vehicle data screens, and factory audio systems. Whether you're building a daily driver or a show vehicle, this double DIN car stereo is engineered for total system control.

Product Highlights:

General features:

• digital multimedia receiver with AM/FM tuner
• 10.1" HD capacitive touchscreen display
  • AAS display technology for wider viewing angle
  • before final installation, depth and height of the display can be adjusted to provide dash vent and control access
• Wi-Fi certified
• Waze-ready with Apple CarPlay or Android Auto
• customizable display background and widget controls
• ambient lighting and multi-function volume knob controls
• plays high-res FLAC, WAV, and DSD files on USB drives
• built-in HD Radio tuner
• fits double-DIN dash openings
• Bluetooth built-in for hands-free calling and audio streaming
  • built-in LDAC for high-res wireless audio streaming with select Android phones

Smartphone features:

• compatible with wireless or wired Apple CarPlay or Android Auto
• wireless (Miracast) and wired (HDMI) mirroring for Android

Audio/video features:

• plays USB memory devices
• 13-band parametric equalizer with digital time alignment
• 3-way crossover mode (runs highs, mids, and lows)
• Supreme setting improves the digital sound for all music sources
• Stage EQ compensates for low speaker positions
• DriveEQ boosts specific frequencies to compensate for road noise
• subwoofer level and phase controls

Expandability:

• compatible with SiriusXM satellite radio tuner
• direct connection for Kenwood's CMOS-740HDLP high-definition camera

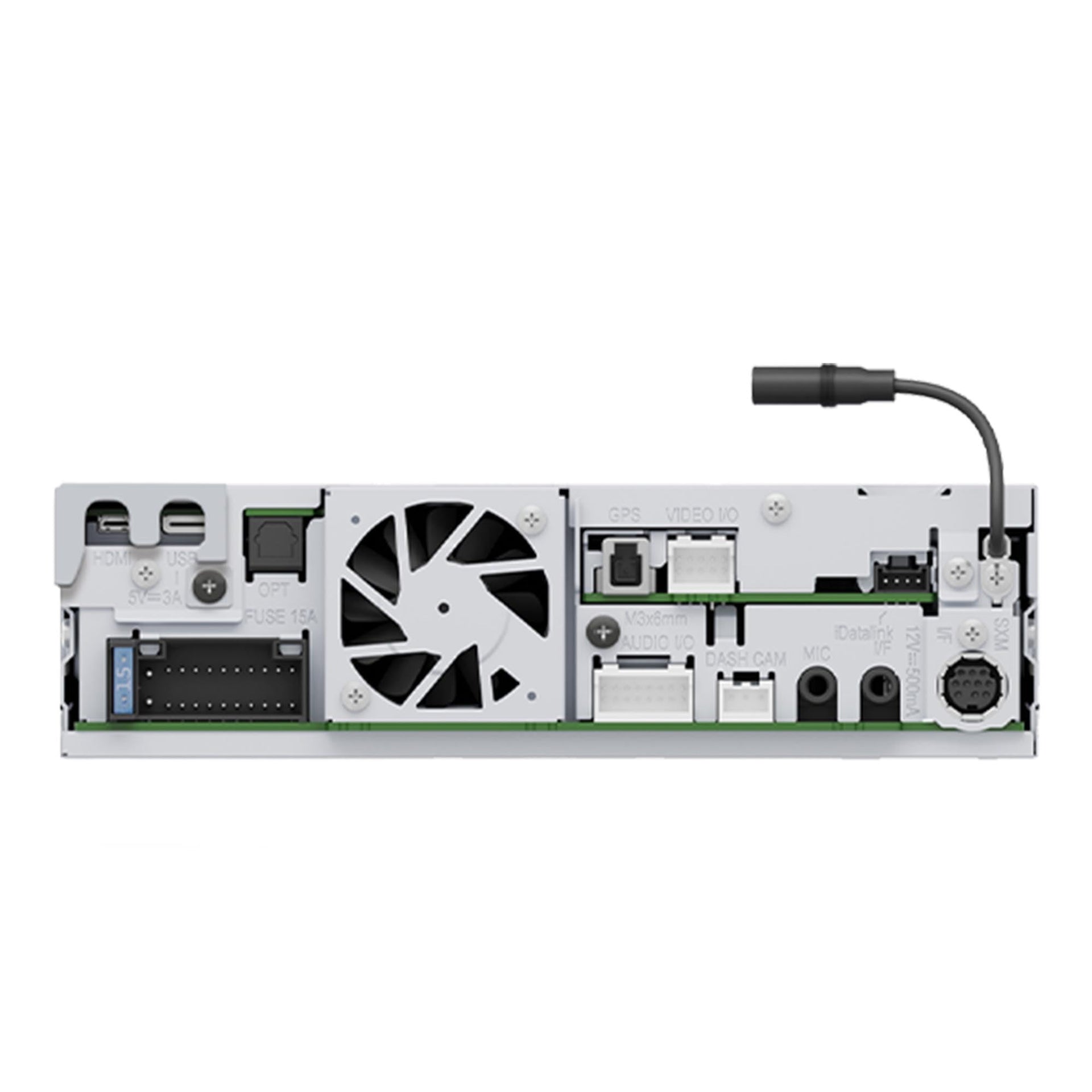

• inputs: rear USB input, HDMI input, rear A/V input (composite RCA video and 3.5mm audio), four camera inputs (including 2 high-def inputs)
• outputs: rear A/V output, 6-channel preamp outputs (5-volt front, rear, subwoofer)

Other info:

• Important note — Monitor dimensions are 10.313" x 7.125". Before ordering, check for possible interference with your dash.

• wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
• built-in internal amp (22 watts RMS/50 peak x 4 channels)
• works with iDataLink Maestro modules
  • retains factory features in a wide selection of vehicles
  • displays engine performance and other vehicle data on touchscreen
  • K40/Escort radar detector-ready
• compatible with most factory steering wheel audio controls (adapter required)
• warranty: 2 years
• MFR # DMX1057XR
