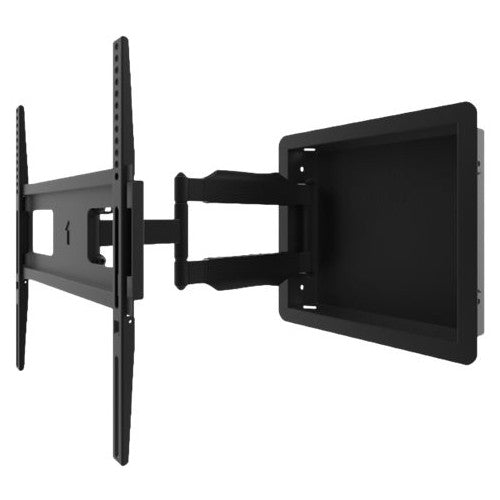

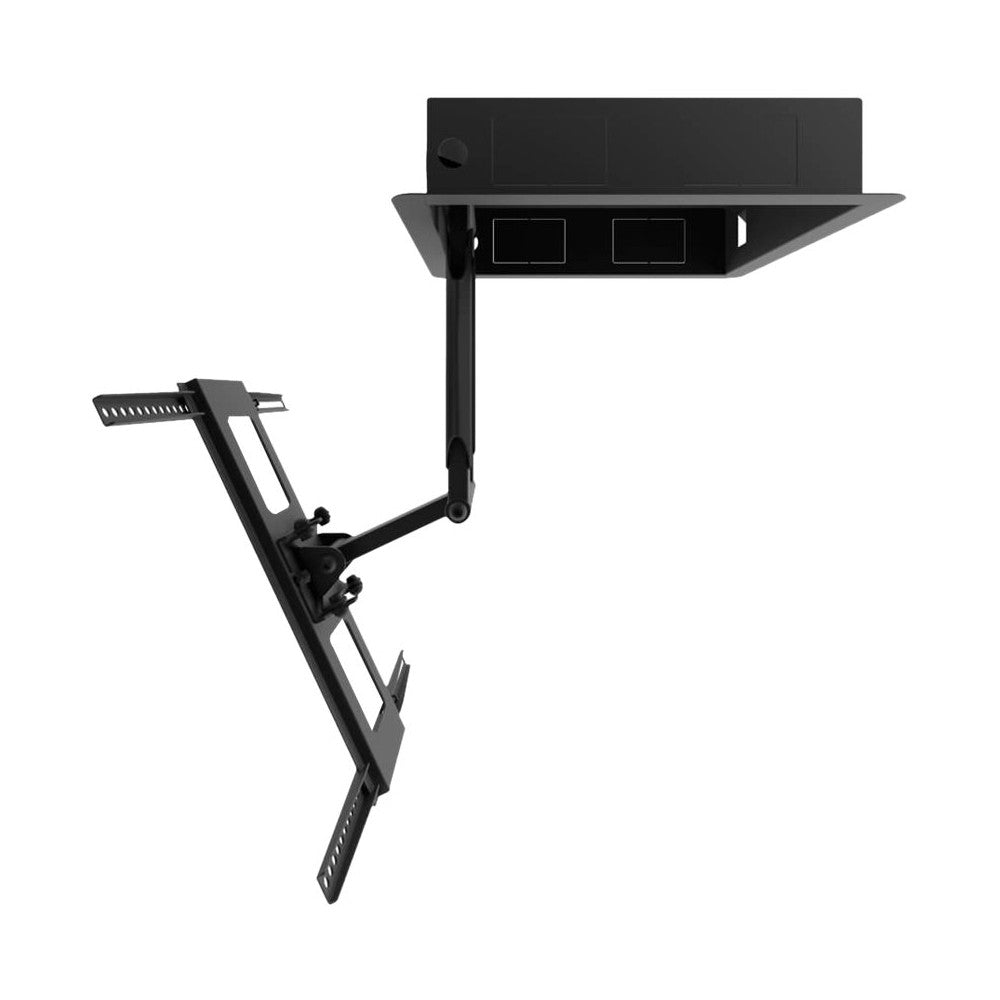

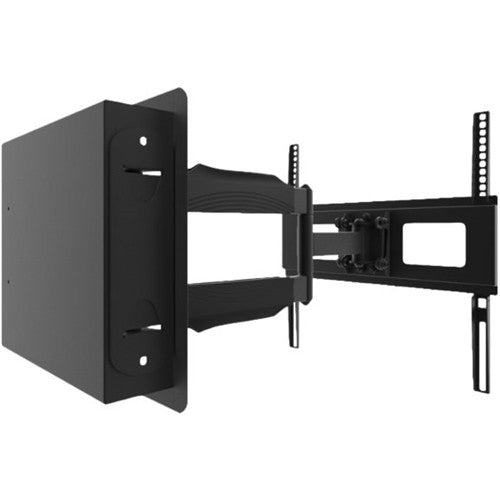

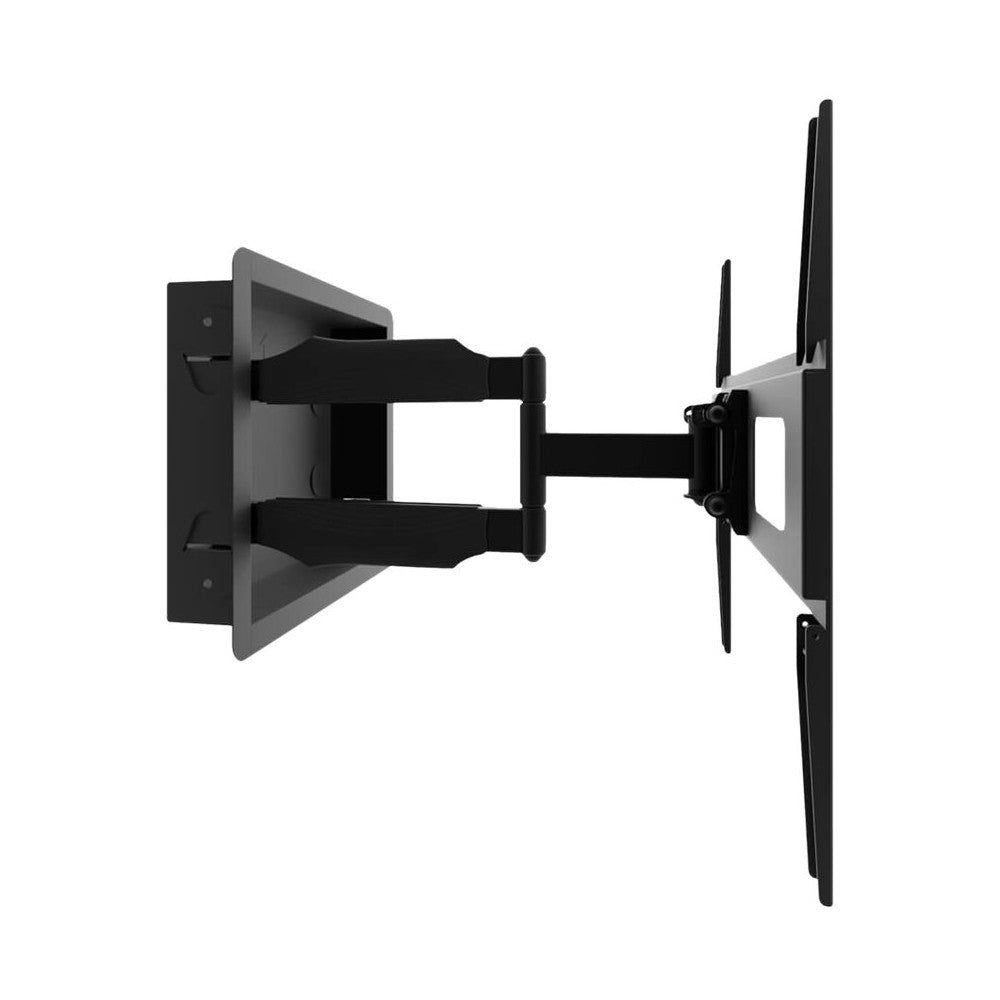

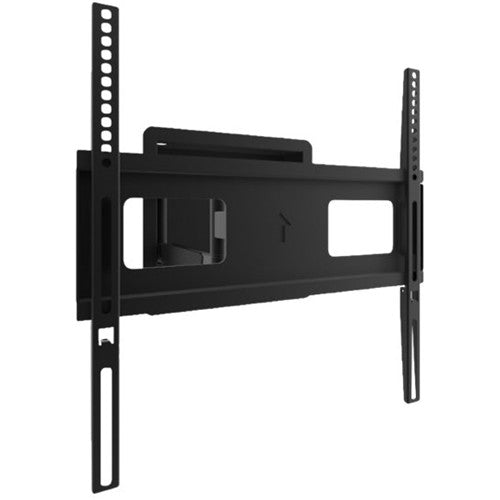

Kanto R300 Recessed In-Wall Full Motion TV Mount
Kanto R300 Recessed In-Wall Full Motion TV Mount
Secure any flat-screen television with this Kanto recessed articulating wall mount. It swivels 180 degrees and tilts, letting you adjust viewing angles, and it's streamlined, so televisions can rest flush with the wall when the mount is fully retracted. This Kanto recessed articulating wall mount is made from solid steel to hold up to 80 pounds.
Product Highlights:
- * TV size range: 32” to 55”
-
* Product Height (in.) 3.5 in
-
* Product Width (in.) 13 in
-
* Product Depth (in.) 14.4 in
- * Maximum TV weight: 80 lb (36.3 kg)
- * VESA sizes (mm x mm; W x H): 100x100 to 400x400
- * Extension: 19.2" (48.8 cm) from the wall
- * Tilt: +10° to -5°
- * Profile: 1.25” (3.2 cm)
- * Stud spacing: 16"
- * Material: Solid steel with durable powder coated finish
About Kanto R300

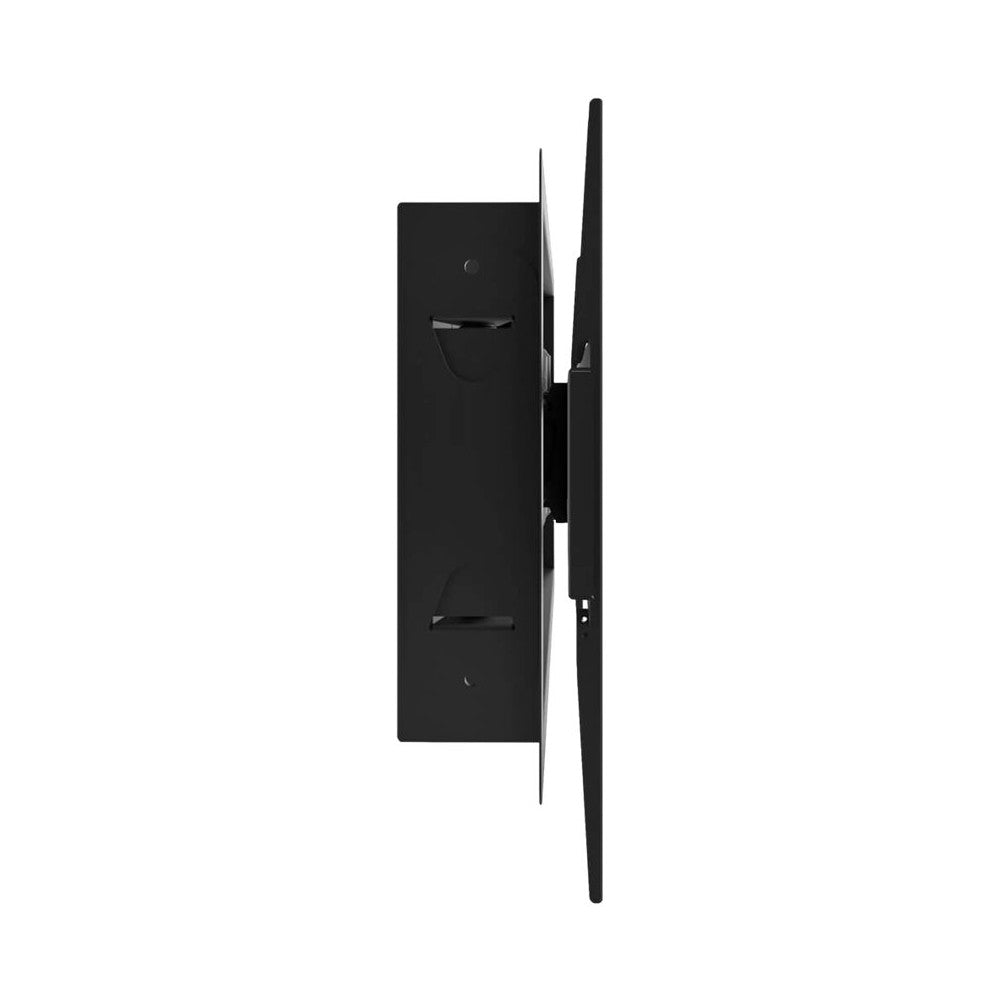

Achieve an ultra-low-profile setup with the R300 recessed wall mount. Designed to be inserted between two studs measuring 16" apart, this unique mounting solution lets your TV sit 1.25" from the wall when fully retracted. Its 18.5" long articulating arm provides -5deg./+10deg. of tilt and 180deg. of swivel, ensuring optimal viewing from all angles. Built out of high-grade steel, the R300 supports 32 to 55" TVs weighing up to 80 pounds.

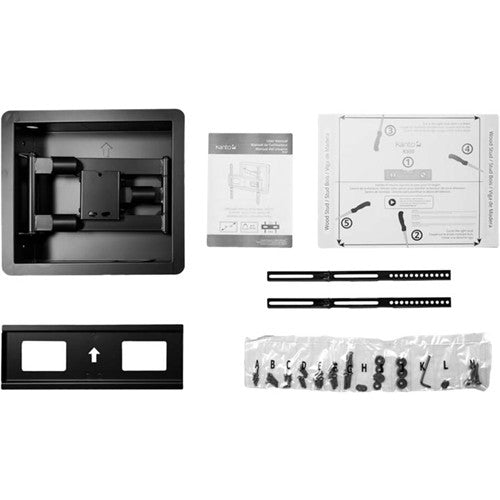

- * Mount and TV brackets
- * Paper wall template
- * Mounting hardware
- * Installation manual
SUPPORTS UP TO 80 POUNDS
Constructed out of solid steel, the R300 safely supports 32” to 55” TVs weighing up to 80 pounds, while its adjustable mounting brackets accommodate VESA sizes between 100×100 and 400×400.
FULL RANGE OF MOTION
Use the R300’s articulating arm to ensure you always have the perfect viewing angle. Extend it out 18.5” to provide ample room to tilt and swivel your TV.
EVERYTHING YOU NEED
Because every installation is unique, the R300 is carefully packaged with all the lag bolts, washers and spacers that you could need. An online installation video is also provided to help you along the way.
