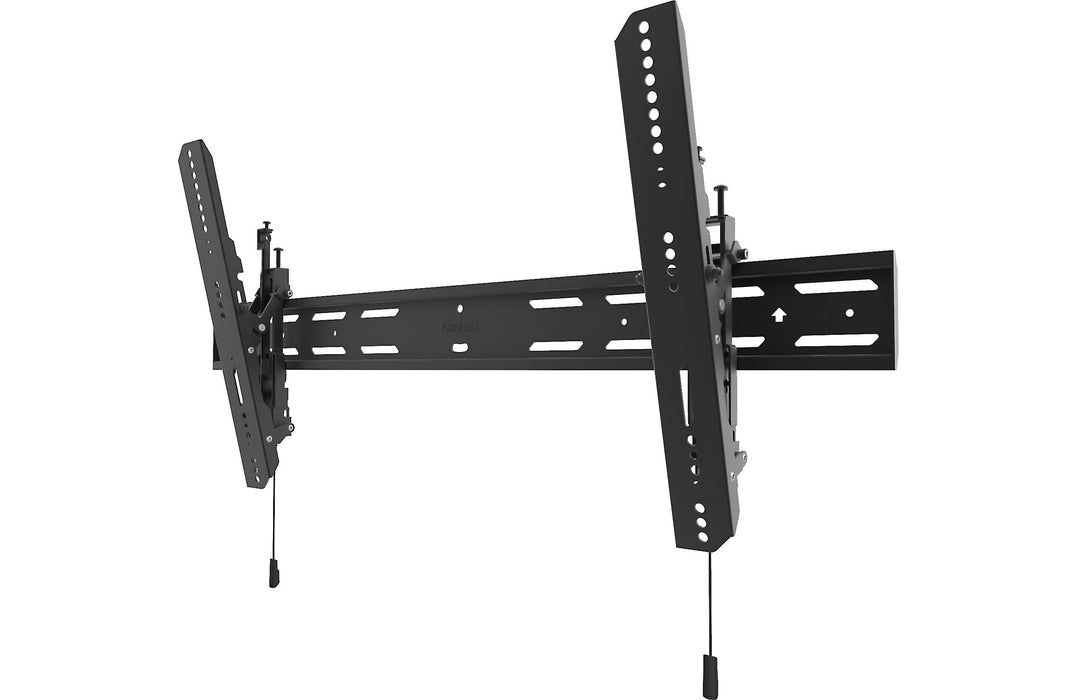

Kanto PT400 Tilt mount for TVs 40" to 90"
Kanto PT400 Tilt mount for TVs 40" to 90"
Kanto PT400 can support TVs with screen sizes between 40" and 90" and weighing up to 200 lbs. The Kanto PT400 TV mount holds your TV just 1-7/16" from the wall. You can tilt your screen forward as much as 12° to minimize glare. The mount's wall plate is wide enough to accommodate 16" or 24" stud spacing. Quick-release pulls make it easy to remove your TV. They're magnetic, so you can snap them to the back of the mount, keeping them out of sight. Plus, you can add standard locks (not included) to the TV mounting brackets for added security in commercial installations.
Product Highlights:
- Designed for TVs 40"-90"
- Supports up to 200 lbs.
- Fits VESA mounting hole patterns from 100 x 100mm to 800 x 400mm
- Holds TV 1-7/16" from wall
- Tilt range: -12°
- Stud mounting required
- Wide mounting plate accommodates 16" and 24" stud spacing
- Horizontal leveling screws on each mounting plate
- Quick release pull cord with magnetic handles that tuck out of sight
- Locking feature for added safety and security (lock not included)
- Mounting hardware included
- Solid steel construction with powder-coated finish
- 31-1/2"W x 16-3/4"H x 1-7/16"D
- Weight: 8.2 lbs.
- Warranty: 5 years
- Our 30-day money-back guarantee
- MFR # PT400
TV Compatibility: The Kanto PT400 tilting low-profile wall-mount bracket supports 40" to 90" flat-panel TVs that weigh up to 200 lbs. The TV must meet the following VESA and screw size requirements.
VESA Sizes: 100x100 to 800x400
Screw Size: M4, M5, M6, or M8
Solid Steel Construction: The Kanto PT400 tilting low-profile TV wall-mount bracket is constructed out of solid steel and features a durable powder-coated black finish.
Low Profile Design: The Kanto PT400's low-profile design positions your flat-panel television only 1.4375" away from the wall.
Tilt & Level: The Kanto PT400 lets you easily tilt your TV up to 12° forward to reduce glare and improve line-of-sight with your TV screen. There is also a horizontal leveling feature to facilitate precision leveling once the wall-mount bracket is installed.
Quick Release: Removing your TV from the wall-mount bracket is as easy as pulling on two quick-release cords. Each cord includes a magnetic end, allowing them to be quickly tucked out of sight.
Locking Mechanism: You can use the bracket's locking feature to protect your wall-mounted TV against theft. Two Torx screws can be tightened with the provided key to prevent your TV from being removed. In addition, a lock can be attached to the mounting brackets to secure them in place (lock not included and can be found at most local hardware stores).
Dual-Stud Installation: The Kanto PT400 tilting low-profile TV wall-mount bracket can accommodate both 16" and 24" stud spacing, and comes with all the hardware you need for wood stud and concrete installation. Tools required for installation include -
- Drill
- 7/32" bit (wood), 3/8" bit (masonry)
- Socket wrench
- Phillips screwdriver
- Hammer
- Stud finder
- Level
- Pencil
