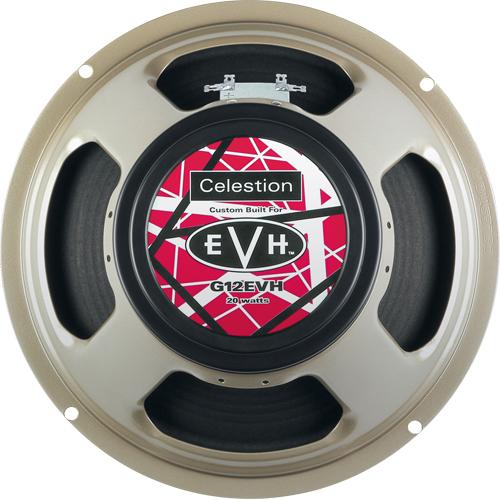

Celestion T5658 G12EVH 12" 8-Ohm Speaker
Celestion T5658 G12EVH 12" 8-Ohm Speaker
Throughout his career, whether in the studio or on the stage, the Celestion 20-watt 'Greenback' has played an essential role to Edward Van Halen in making the tones that rewrote the book on guitar sound. When it came time to select speakers for his new EVH Brand 5150-III signature amp, there was only one choice – Celestion.The Heritage Series G12M faithfully reproduces the sonic qualities of the original '60s version Greenback used to make EVH tone from day one. With the addition of a black rear can featuring the EVH logo and his unmistakable red, white and black stripes, the G12EVH was born. Unmistakable look, but more importantly unmistakable tone.
Product Highlights:
General Specifications:
• Nominal diameter: 12", 305mm
• Power rating: 20Wrms
• Nominal impedance: 8ohm
• Sensitivity: 96dB
• Chassis type: Pressed steel
• Voice coil diameter: 1.75", 44.5mm
• Voice coil material: Round copper
• Magnet type: Ceramic
• Magnet weight: 35oz, 0.99kg
• Frequency range: 75-5000Hz
• Resonance frequency, Fs: 75Hz
• DC resistance, Re: 6.57ohm
- Warranty: 5 years
- Our 30-day money back guarantee
- MFR # T5658
Mounting Information:
• Cut-out diameter: 11.1", 283mm
• Diameter: 12.2", 309mm
• Magnet structure diameter: 5.9", 150mm
• Mounting slot dimensions: 0.31", 7.9mm Ø
• Mounting slot PCD: 11.7", 297mm
• Number of mounting slots: 4
• Overall depth: 5.1", 130mm
• Unit weight: 7.9lb, 3.6kg
