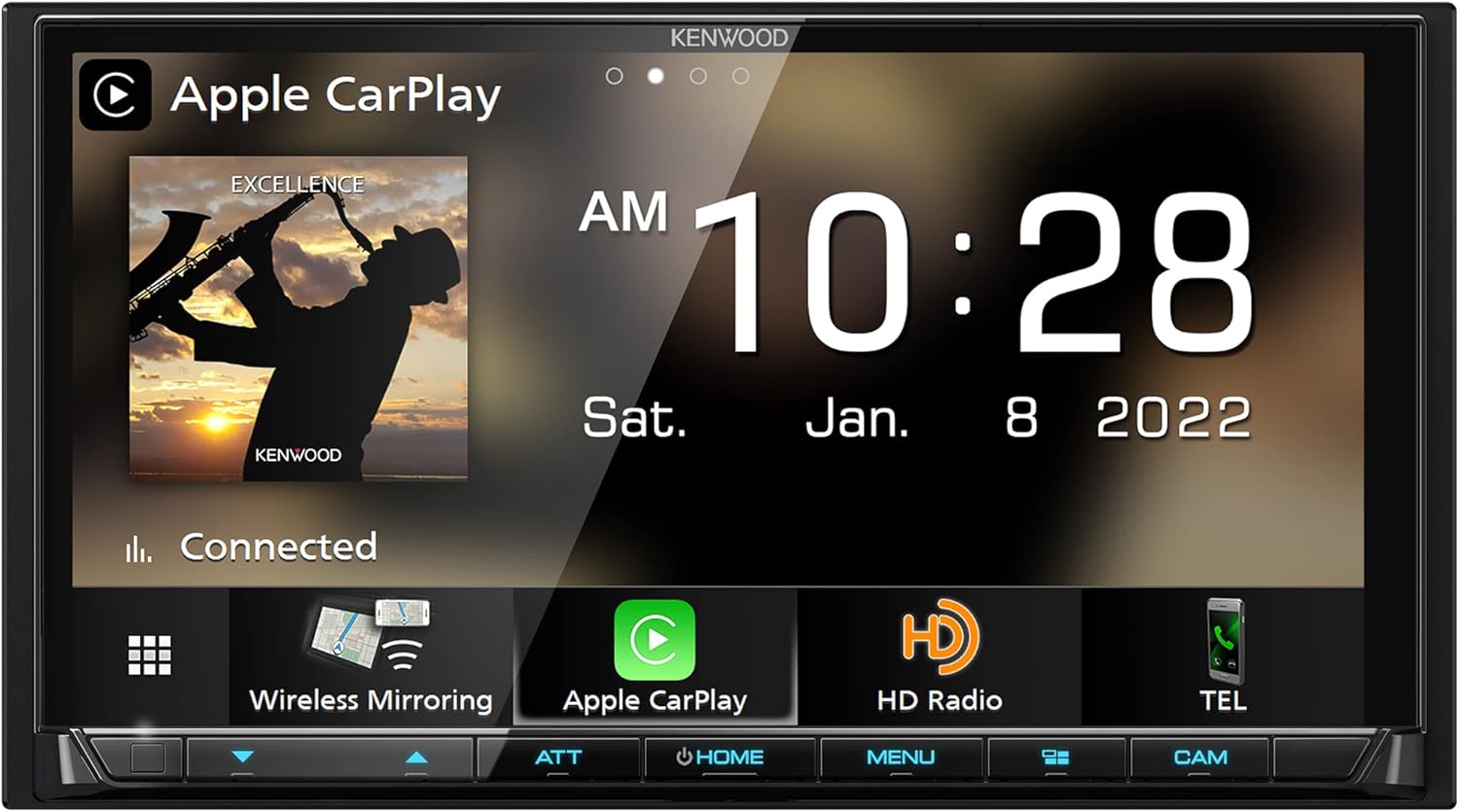

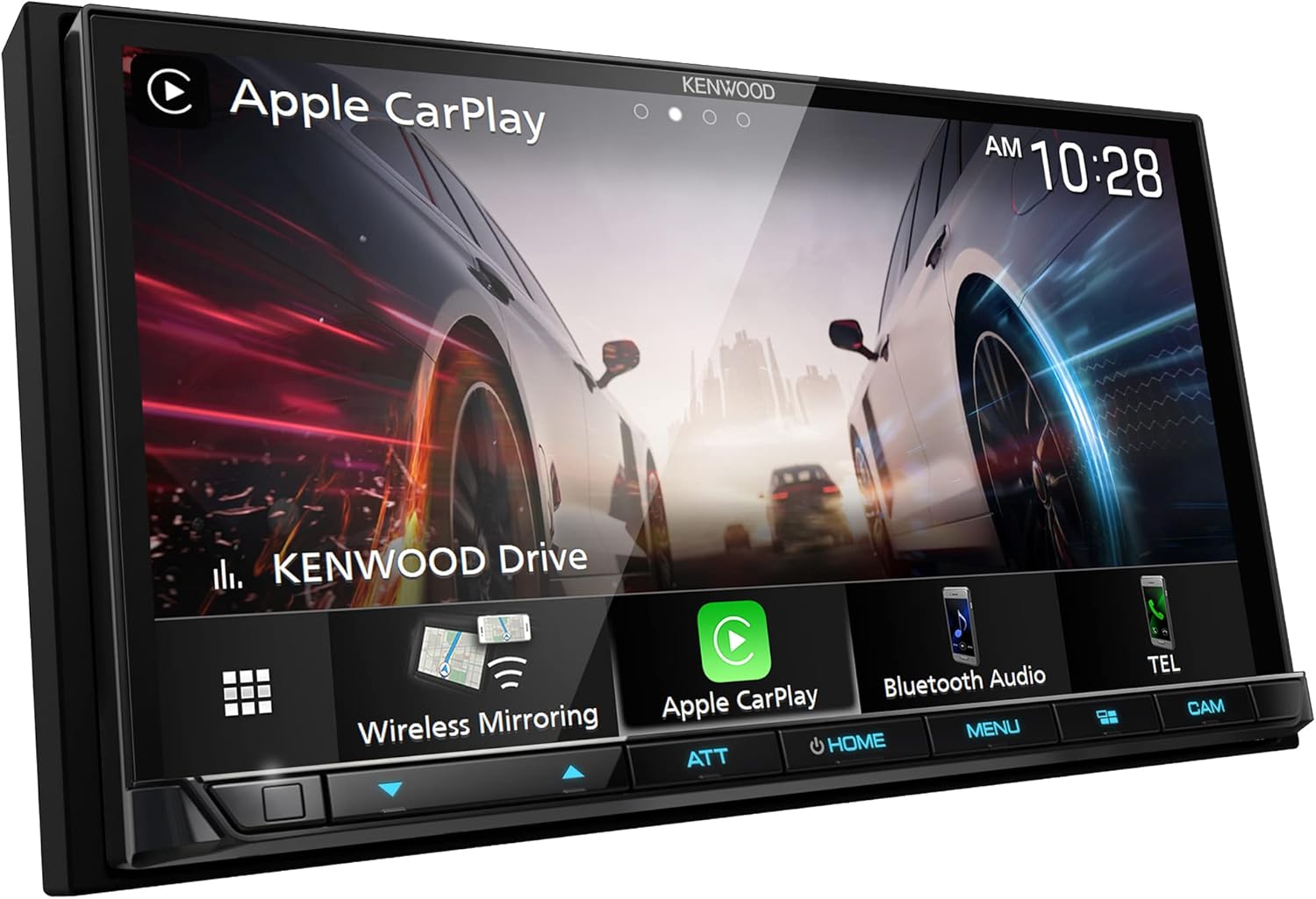

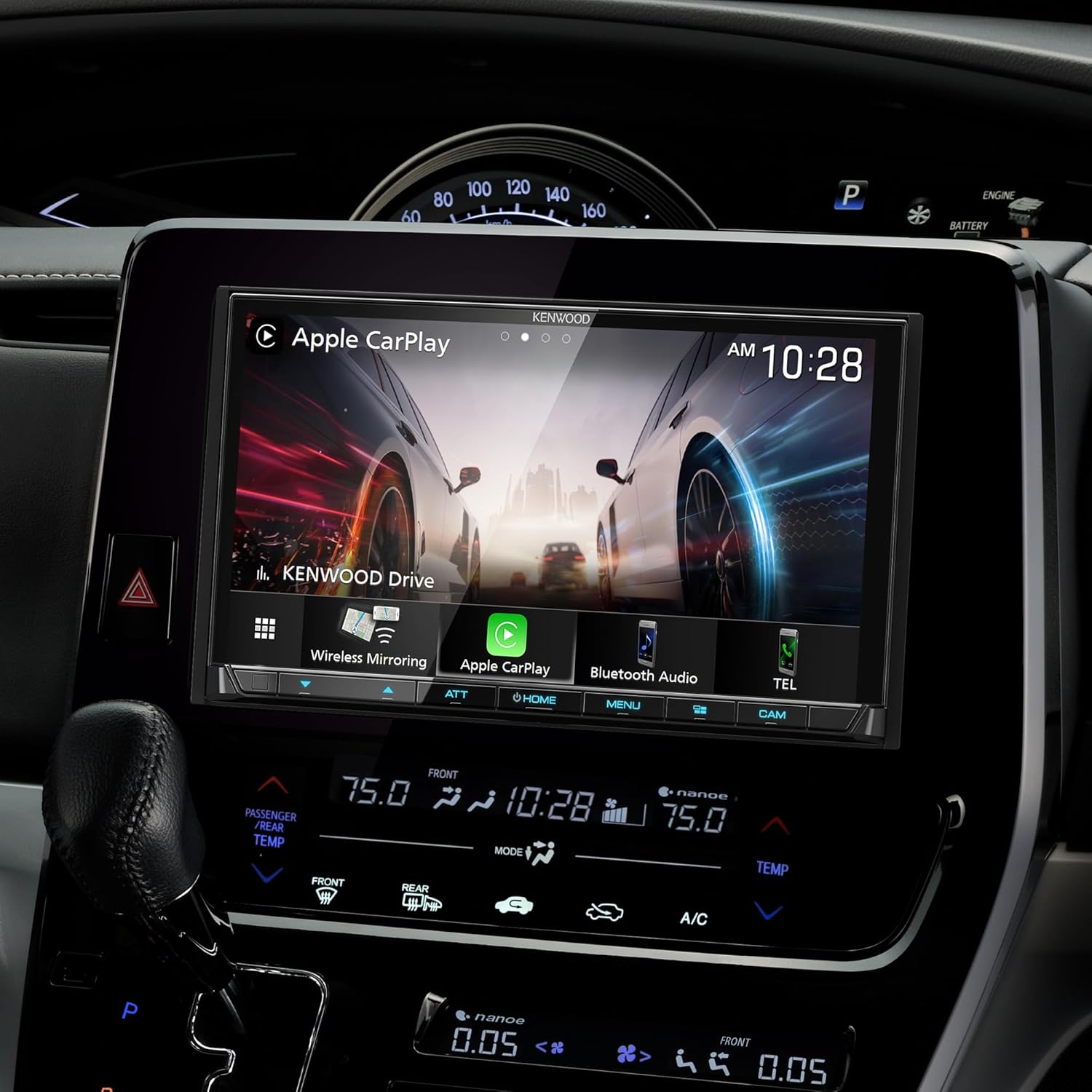

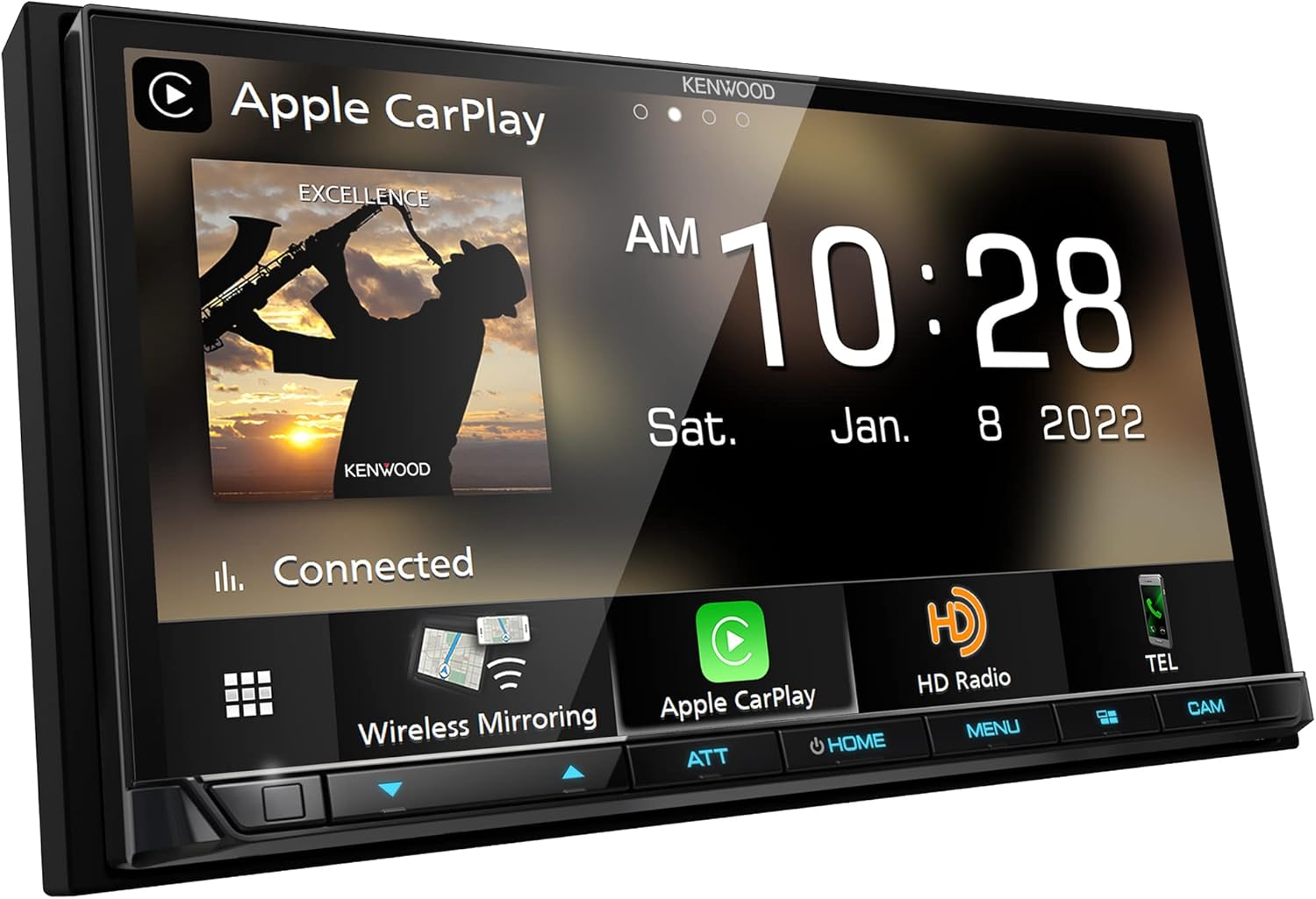

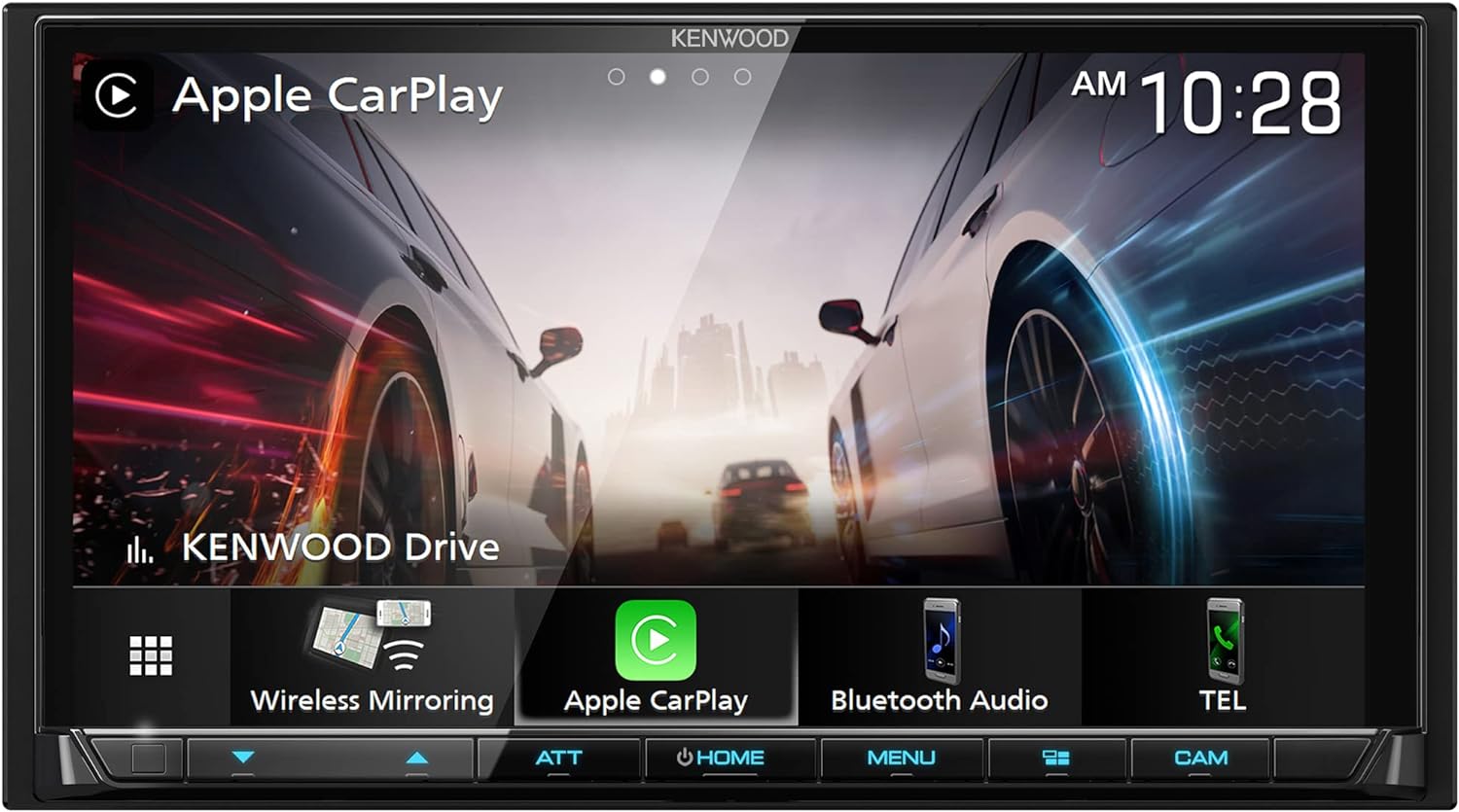

Kenwood Excelon DMX908S Digital Multimedia Receiver

Kenwood Excelon DMX908S Digital Multimedia Receiver

The CMOS-320 multi-view camera is equipped with an advanced image processor that is capable of altering viewing angles and increasing the number of viewing options including corner views and adding graphic guidelines to the camera image. The camera also has the ability to mirror its image, enabling it to be used as a front or rear view camera. Easily switch between the many viewing options using the touch screen from a compatible KENWOOD receiver, or using the included multi-function switch when not connected to a compatible KENWOOD receiver.

Product Highlights:

General features:

• Digital multimedia player with AM/FM tuner
• Plays media loaded with MP3, WMA, and AAC music files (plus high-res WAV and FLAC)

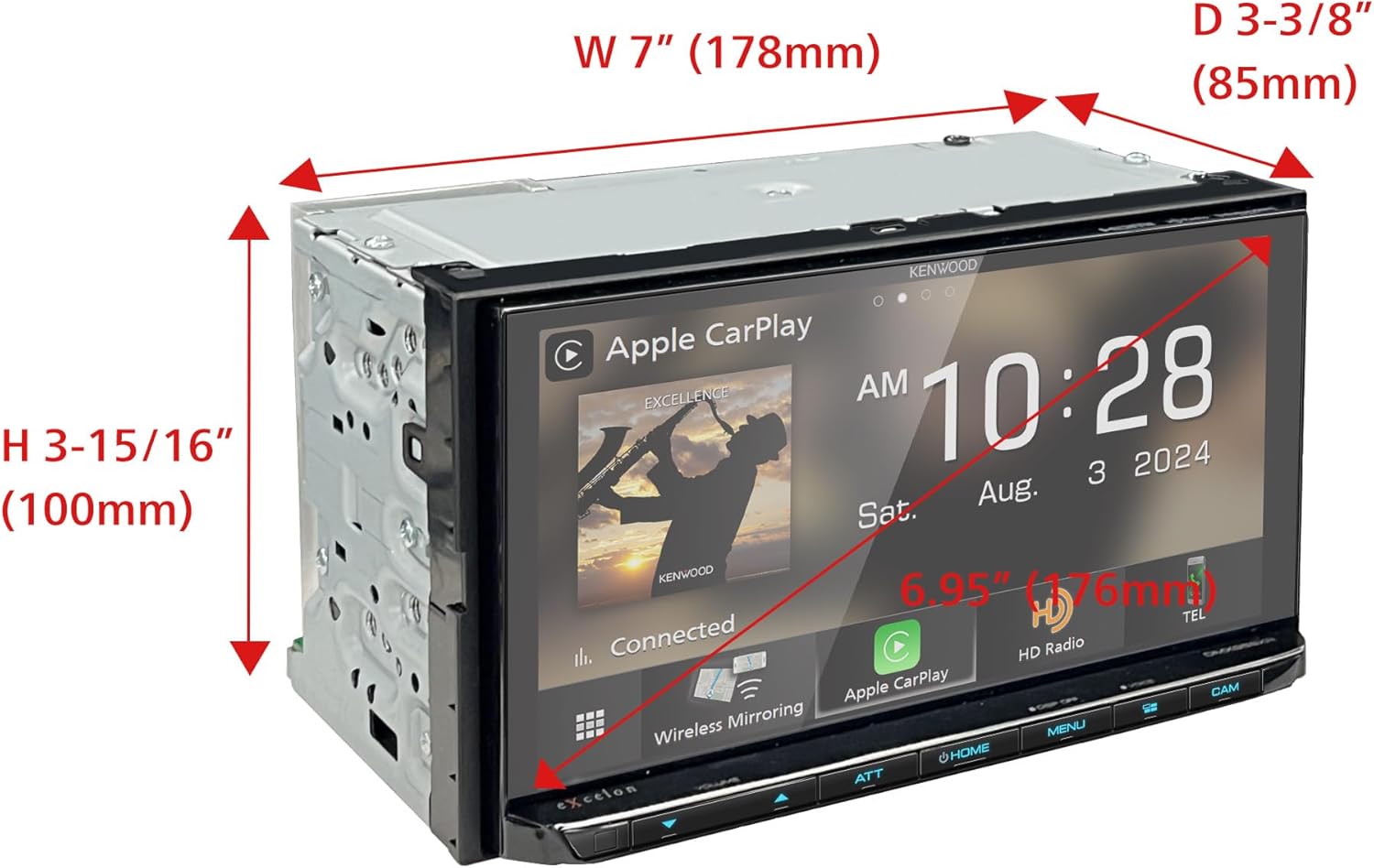

• 6.95" capacitive touchscreen display
• HD Radio tuner built-in
• Electronic viewing angle display adjustment (display does not physically move)
• Fits double-DIN (4" tall) dash openings

Smartphone features:

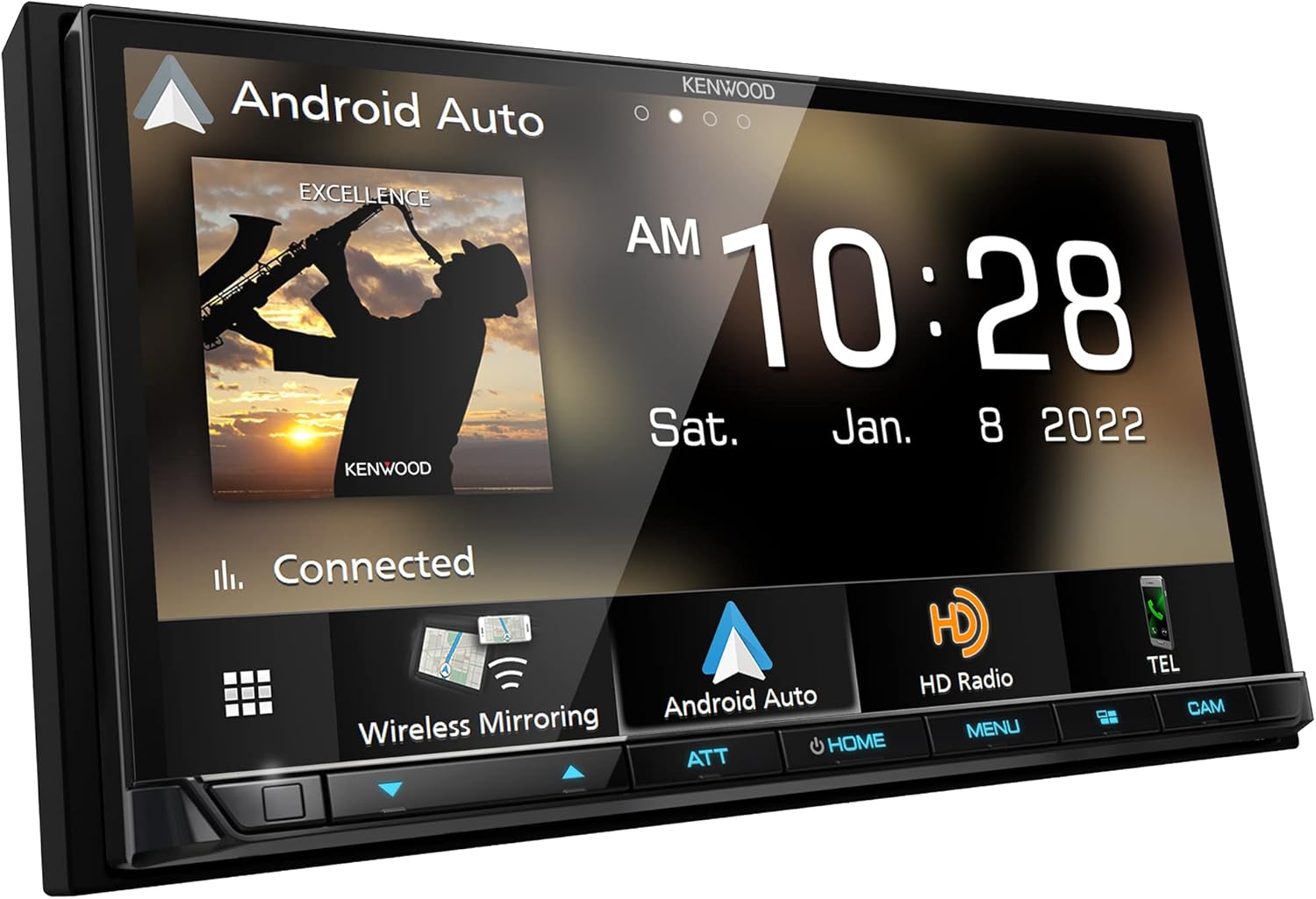

• Wired and wireless Android Auto compatible
  • Compatible with Google Assistant voice control when using Android Auto
• Wired and wireless Apple CarPlay compatible
  • Siri voice control for select iPhones
• Wired mirroring for iPhone and select Android devices via HDMI (adapters sold separately)
• Wireless mirroring for select Android devices
• Built-in Bluetooth with dual phone connection for hands-free calling and music streaming
• Rapid Android charging via USB port

Audio/visual features:

• 13-band graphic EQ
• Time alignment
• Drive EQ and digital signal processing
• 3-way crossover

Expandability:

• Compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)

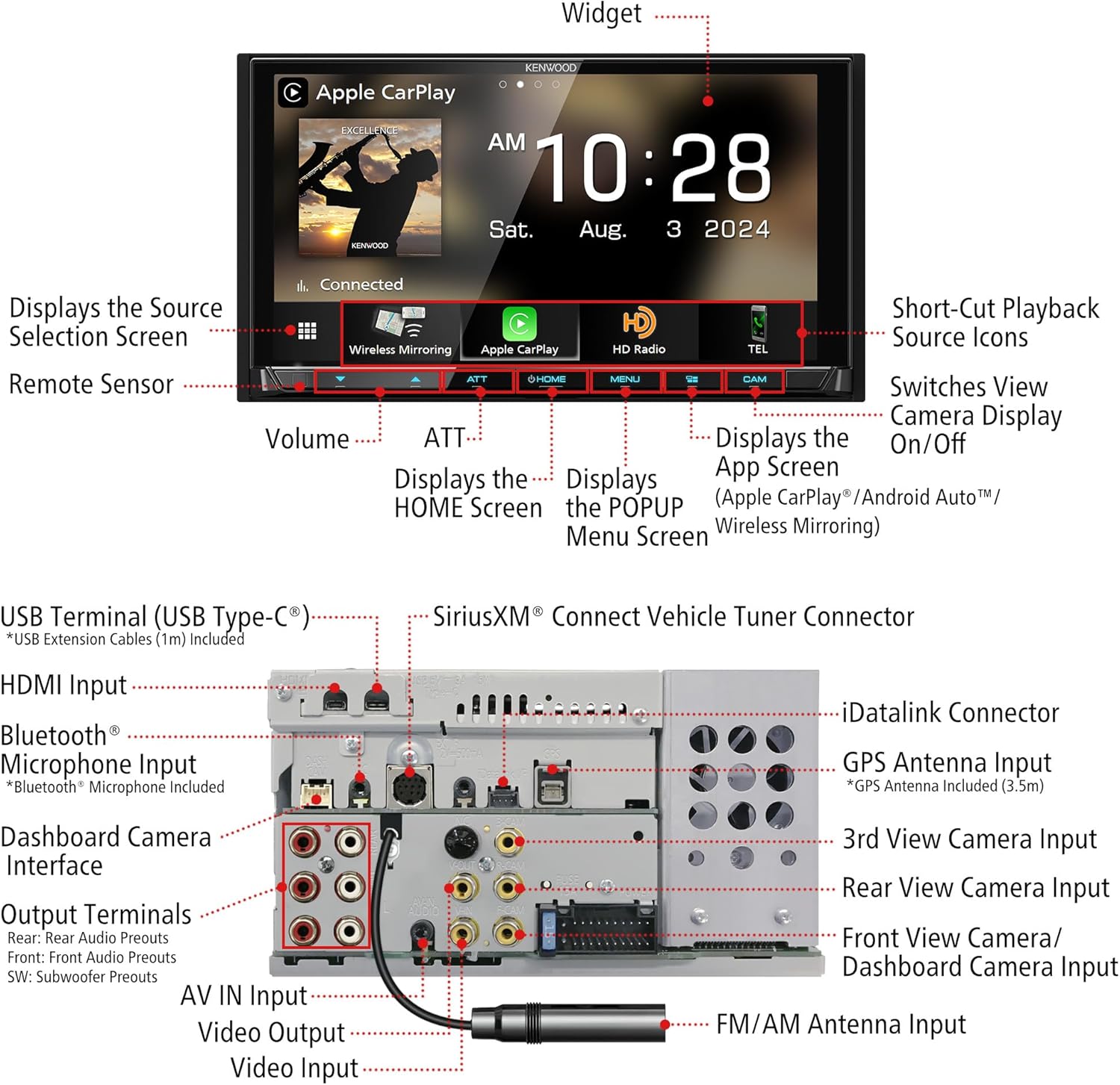

• Inputs: rear USB-C input (USB-C to USB-A adapter included), four camera inputs, rear analog A/V input (can be converted to 5th cam input), Control input for the Kenwood DRV-N520 dash cam
• Outputs: rear video output (RCA), 6-channel preamp outputs (5-volt front, rear, sub)

Other information:

• Wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
• Built-in amplifier (22 watts RMS/50 peak x 4 channels)
• Works with iDatalink Maestro RR or RR2 modules
  • Retains factory features in a wide selection of vehicles
  • Displays engine performance data on touchscreen
• Warranty: 2 years
• Our 30-day money back guarantee
• MFR # DMX908S

What's In The Box:

• Kenwood Excelon DMX908S owner's manual

• Digital multimedia receiver w/ integrated 6.95" monitor (15A fuse)
• Wiring harness
• Mounting sleeve (pre-installed)
• Trim-ring
• USB-C to USB-A adapter
• 40" USB-C extension cable
• GPS antenna (attached 11.5' cable terminated by a proprietaery connector)
• Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
• Self-adhesive pad
• 6 Pan-head ISO-mount screws (M5x8mm)
• 6 Flat-head ISO-mount screws (M5x8mm)
• USB/HDMI connector bracket (pre-installed)
• 2 Removal tools
• Quick Start Guide
• Warranty Information
