Kenwood Excelon DAX1050XR Direct Replacement Digital Multimedia Receiver with 10.1" Floating Touchscreen Display

Kenwood Excelon DAX1050XR Direct Replacement Digital Multimedia Receiver with 10.1" Floating Touchscreen Display

The Kenwood DAX1050XR is a 10.1-inch display monitor, offering wireless CarPlay and Android Auto as a direct replacement. It boasts 4K resolution and seamless integration, along with voice control and intelligent brightness adjustment for enhanced user experience.

Product Highlights:

General features:

• Direct Replacement digital multimedia receiver
  • Works with iDatalink Maestro APX kits for select vehicles
  • Requires the iDatalink Maestro RR or RR2 interface module
  • Requires direct plug-in wiring harness (receiver includes no wiring for power, ground, and signal)
• Plays media loaded with MP3, WMA, and AAC music files (plus high-res WAV and FLAC)

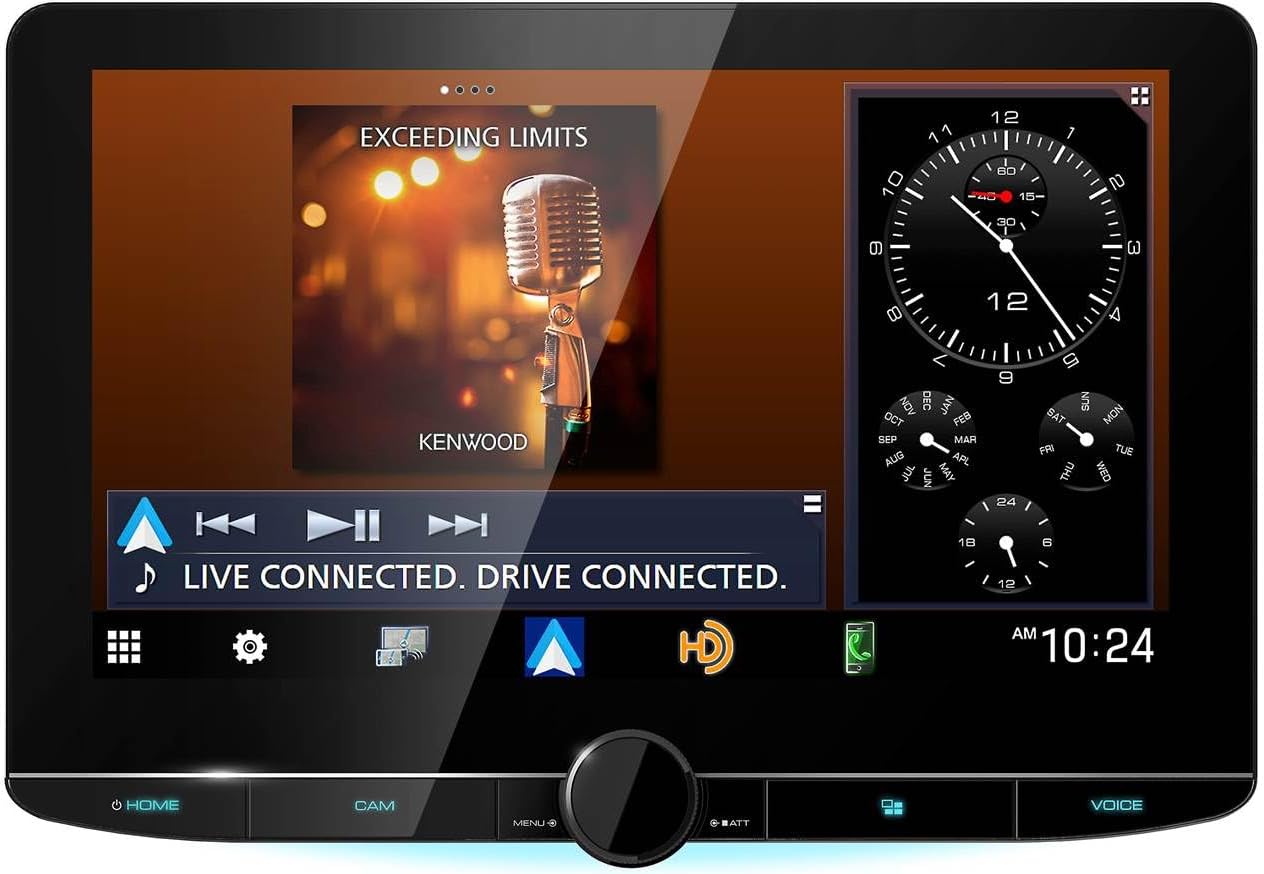

• 10.1" capacitive "floating" touchscreen HD display
• HD Radio tuner built-in
• Waze-ready with Apple CarPlay or Android Auto
• Modular chassis design

Smartphone features:

• Wired and wireless Android Auto compatible
  • Compatible with Google Assistant voice control when using Android Auto
• Wired and wireless Apple CarPlay compatible
  • Siri voice control for select iPhones
• Wireless mirroring for select Android devices
• Built-in Bluetooth with dual phone connection for hands-free calling and music streaming
  • Supports smartphones with LDAC codec for wireless high-res audio streaming
• Rapid Android charging via USB port

Audio features:

• 13-band graphic EQ
• Time alignment
• Drive EQ and digital signal processing
• 2- or 3-way crossover network capability

Expandability:

• Compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
  • works with SiriusXM with 360L for satellite and streaming content using receiver's WiFi (streaming not available if Apple CarPlay or Android Auto are in use)
• Compatible with Kenwood CMOS-740HD HD backup camera

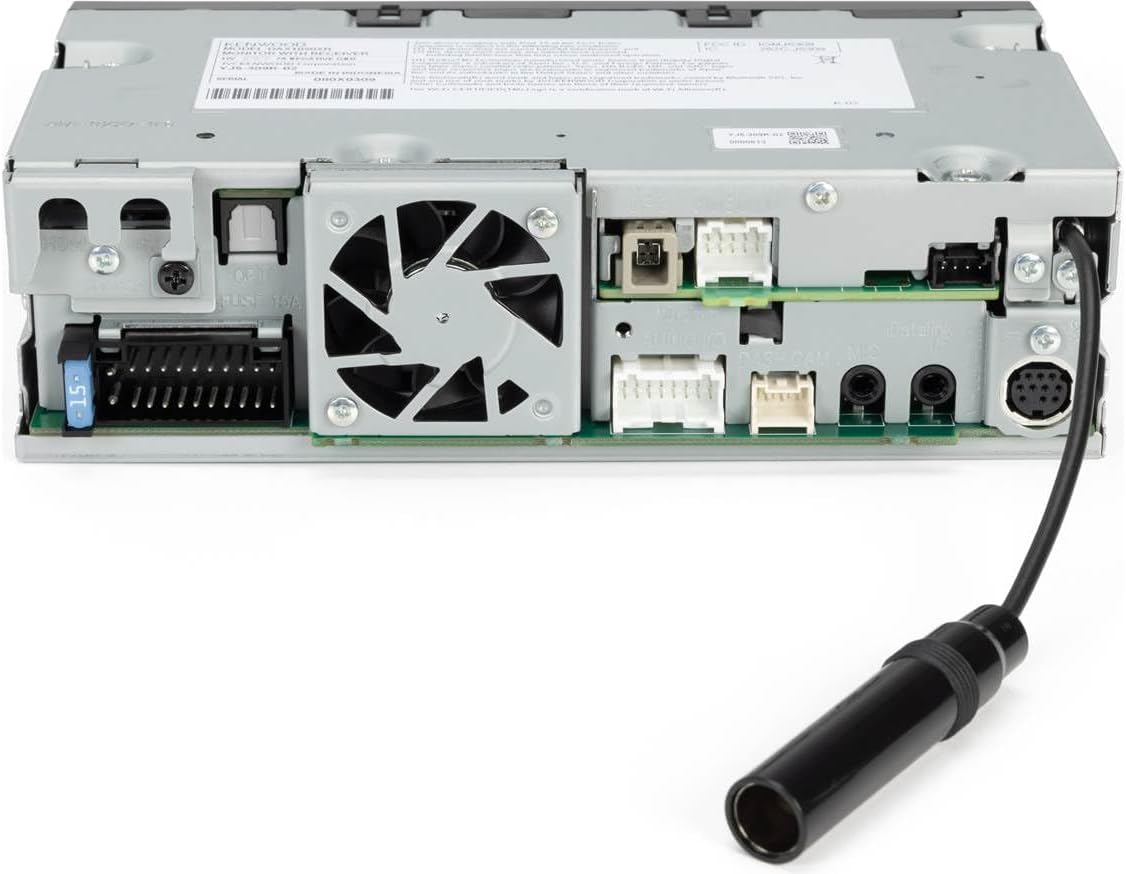

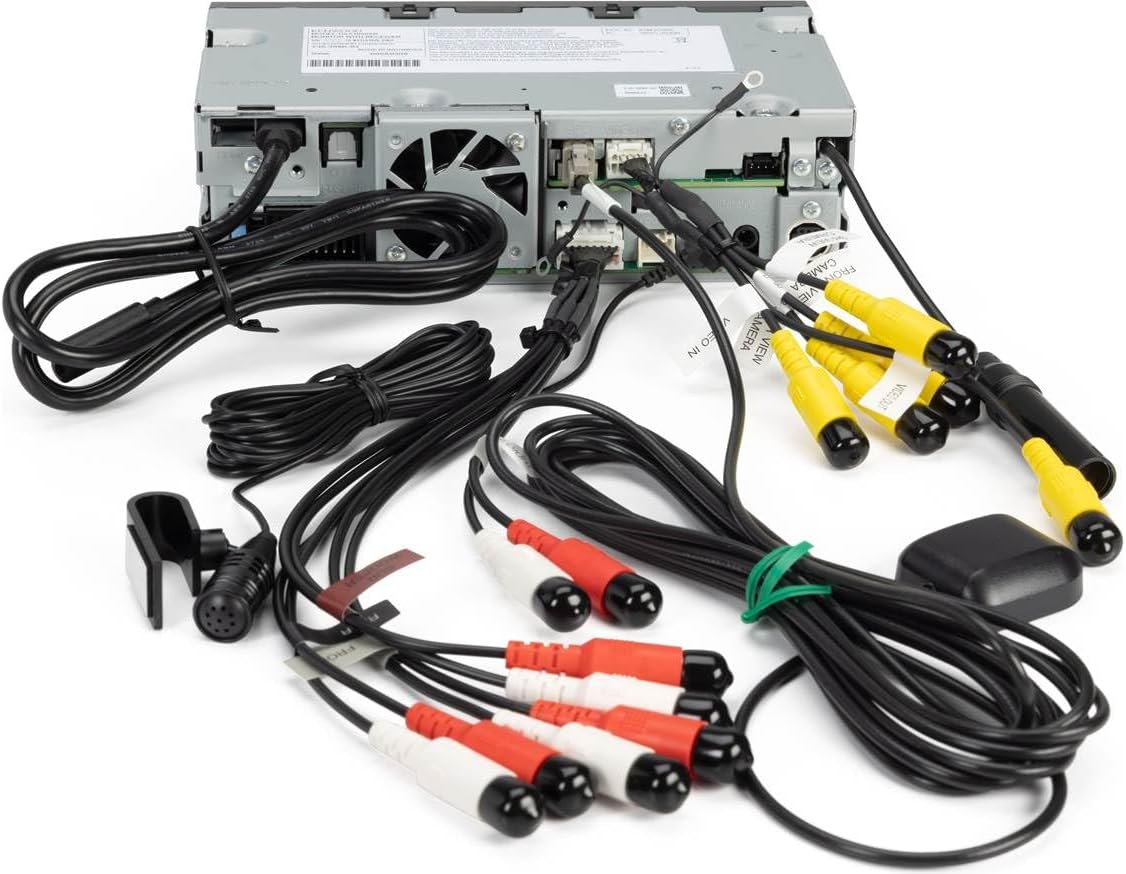

• Inputs (chassis): USB-C input, three camera inputs, rear A/V input (RCA audio and video) can be converted to 4th camera input, microHDMI input
• Outputs: 6-channel preamp outputs (5-volt front, rear, sub), composite (RCA) video out, digital optical output to connect select digital signal processors

Other information:

• Built-in amplifier (22 watts RMS/50 peak x 4 channels)
• Works with iDatalink Maestro RR or RR2 modules
  • Works with iDatalink ADS-MIC1 interface to retain factory microphone
  • Retains factory features in a wide selection of vehicles

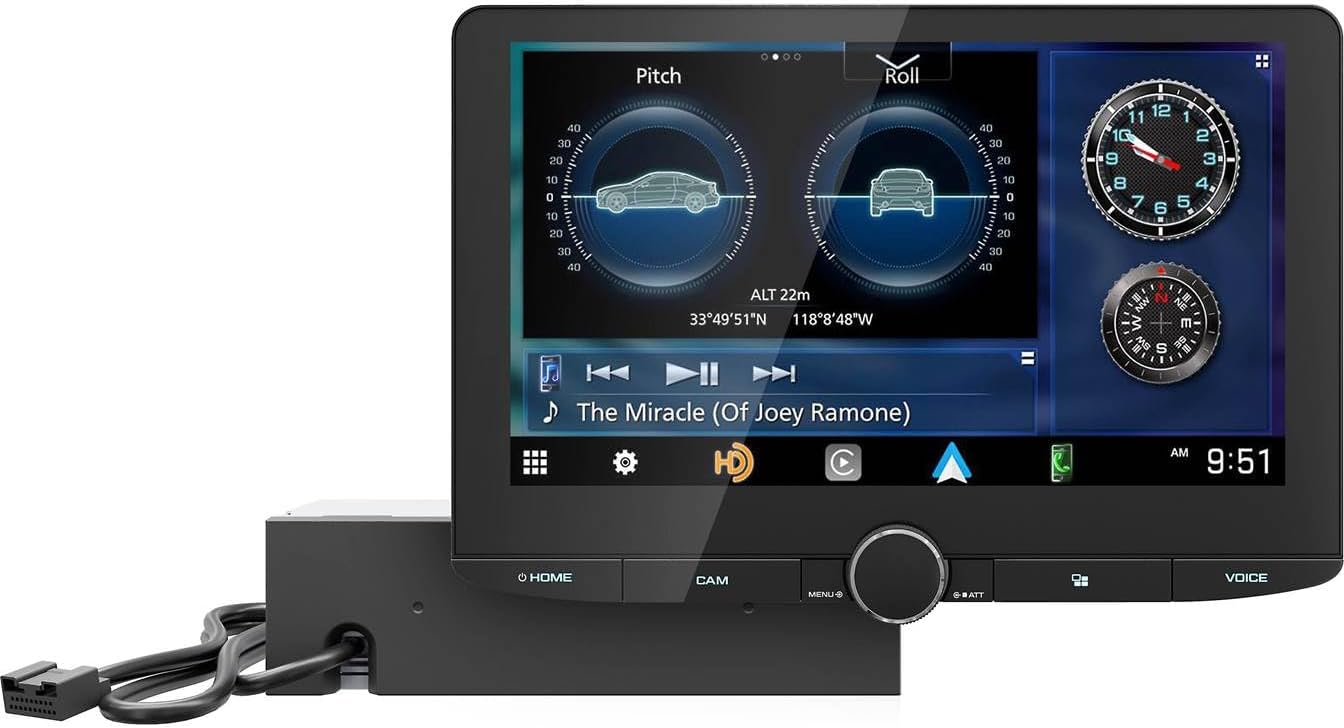

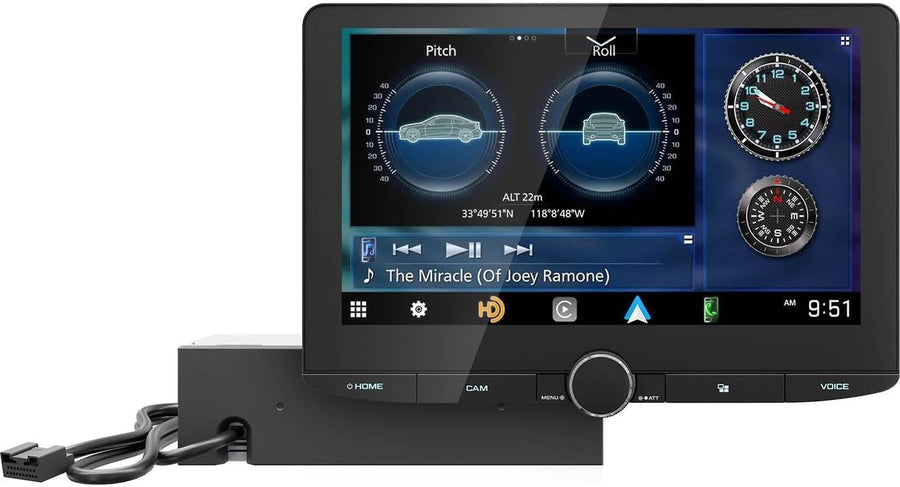

  • Displays engine performance and pitch-and-roll data on display
• Warranty: 2 years
• Our 30-day money back guarantee
• MFR # DAX1050XR

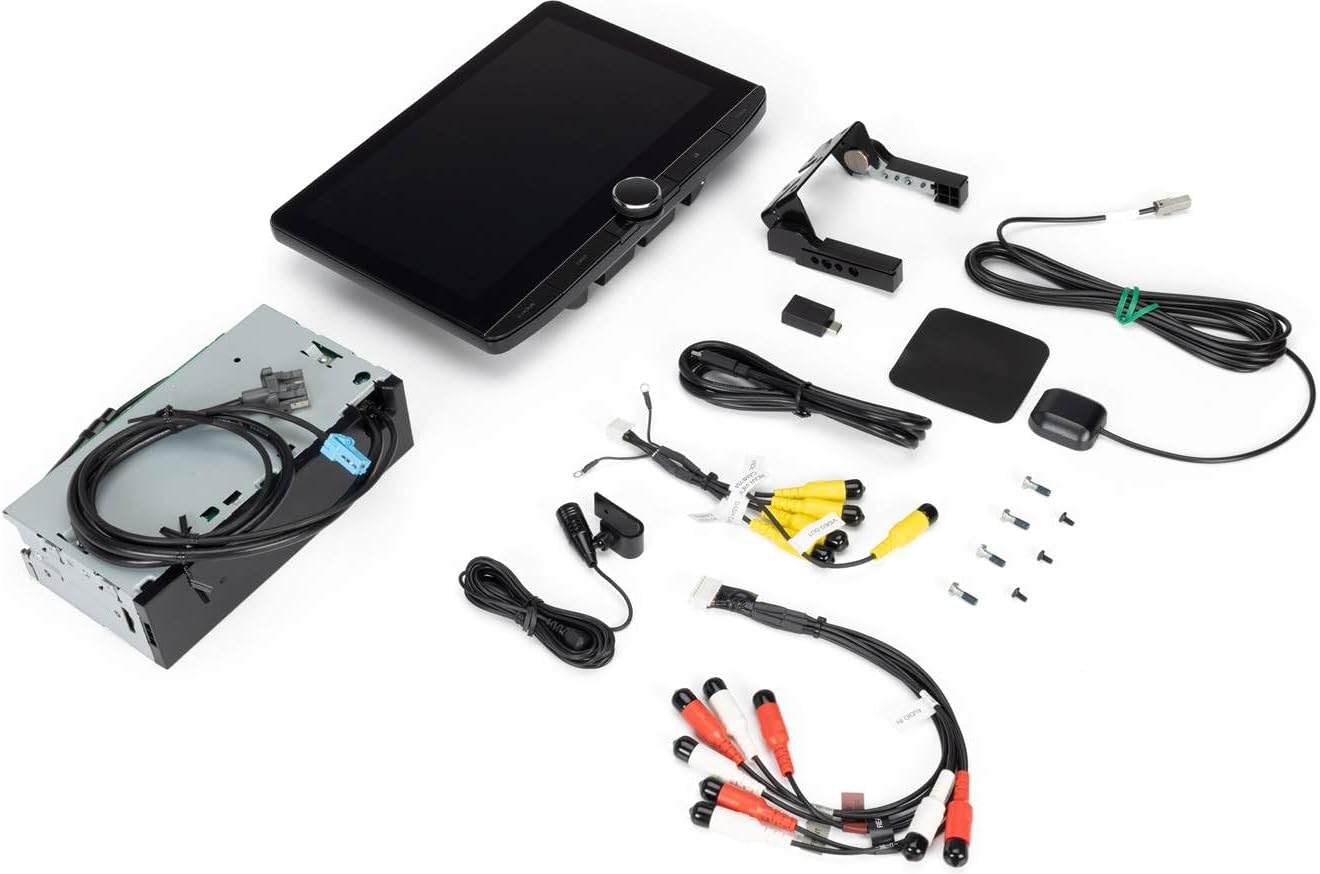

What's In The Box:

• 10.1" Touchscreen monitor
• Source unit
• Monitor bracket
• Preout/Aux harness
• Vide/Camera harness
• USB-C to USB-A adapter
• 40" USB-C extension cable
• GPS antenna (attached 11.5' cable terminated by a proprietaery connector)
• Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
• Self-adhesive pad
• 4 Large screws
• 4 Small screws
• Quick Start Guide
• Warranty Information
