Kenwood DAX800XR EXcelon Reference Direct Replacement 8" Monitor with Wireless CarPlay & Android Auto

Kenwood DAX800XR EXcelon Reference Direct Replacement 8" Monitor with Wireless CarPlay & Android Auto

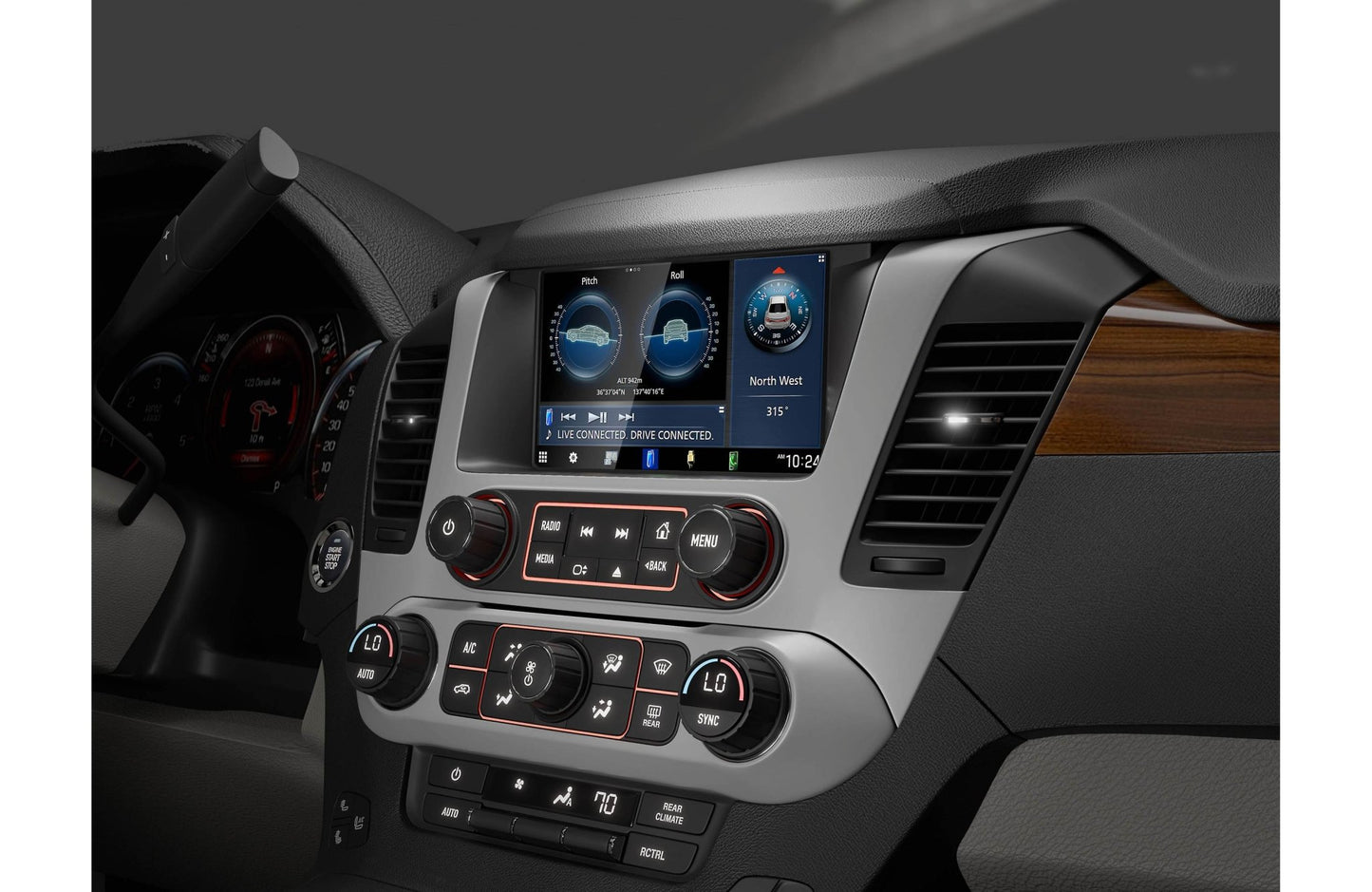

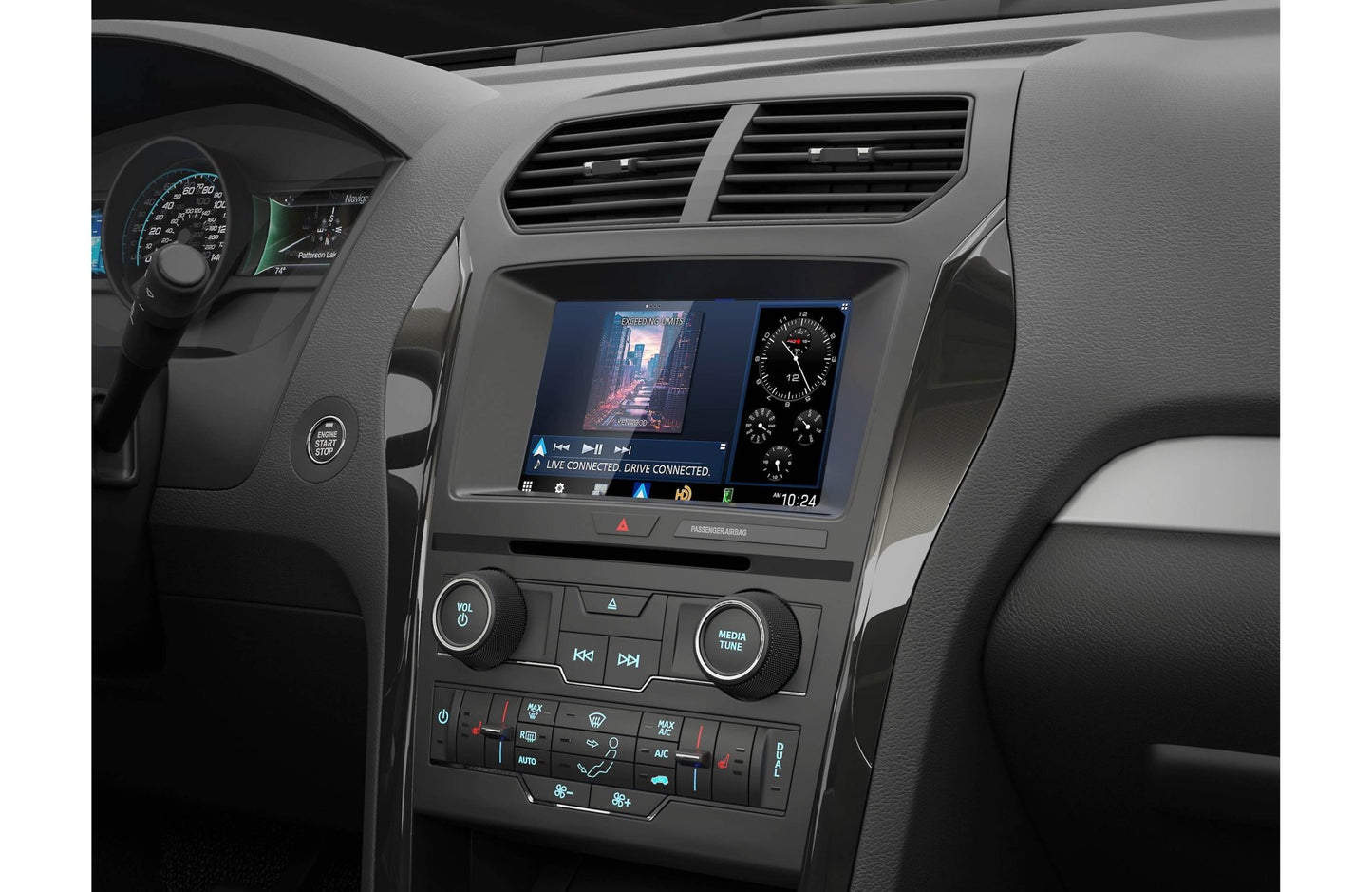

With the introduction of Direct Replacement Category and the adaptation of Maestro APX Parts the Receiver is Designed to fit seamlessly into OEM dashboards with retaining OEM receiver controls and features. The display and chassis are separated and the chassis can be placed either vertically or horizontally allowing for flexible installation in a variety of vehicles.

Product Highlights:

General features:

• Direct Replacement digital multimedia receiver
  • Works with iDatalink Maestro APX kits for select vehicles
  • Requires the iDatalink Maestro RR or RR2 interface module
  • Requires direct plug-in wiring harness (receiver includes no wiring for power, ground, and signal)
• Plays media loaded with MP3, WMA, and AAC music files (plus high-res WAV and FLAC)
• 8" electrostatic capacitive touchscreen HD display
• HD Radio tuner built-in
• Waze-ready with Apple CarPlay or Android Auto

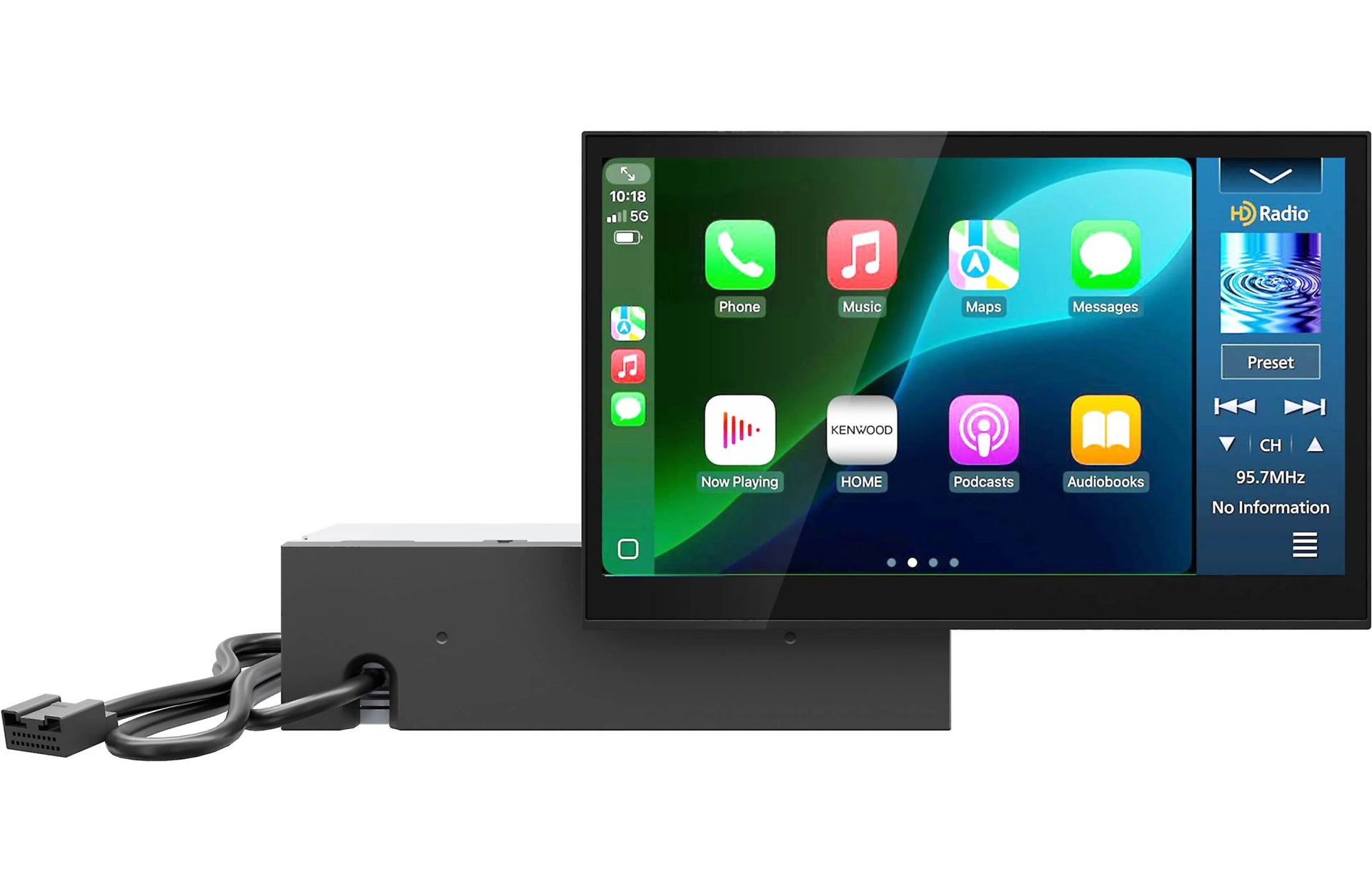

• Modular chassis design

Smartphone features:

• Wired and wireless Android Auto compatible
  • Compatible with Google Assistant voice control when using Android Auto

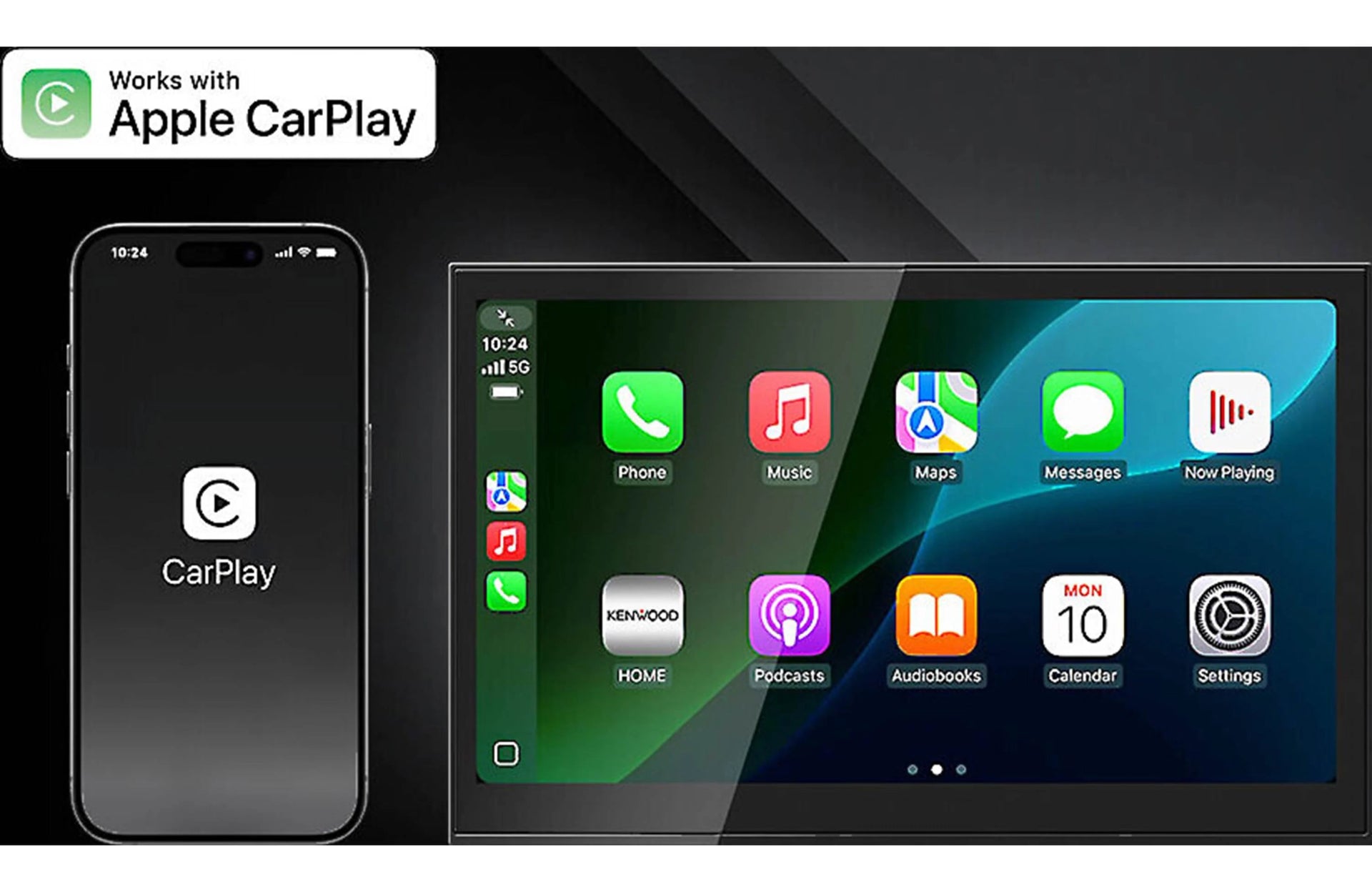

• Wired and wireless Apple CarPlay compatible
  • Siri voice control for select iPhones
• Wireless mirroring for select Android devices
• Built-in Bluetooth with dual phone connection for hands-free calling and music streaming
  • Supports smartphones with LDAC codec for wireless high-res audio streaming
• Rapid Android charging via USB port

Audio features:

• 13-band graphic EQ, 14-point parametric EQ
• Digital time alignment
• Digital signal processing
  • Drive EQ boosts frequencies in your music to help overcome road noise
  • Stage EQ virtually raises the sound from speakers mounted in low door locations for better staging
  • Sound Restoration restores more natural sound from compressed music
• 2- or 3-way crossover

Expandability:

• Compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
  • Works with SiriusXM with 360L for satellite and streaming content using receiver's WiFi (streaming not available if Apple CarPlay or Android Auto are in use)
• Compatible with Kenwood CMOS-740HD HD backup camera

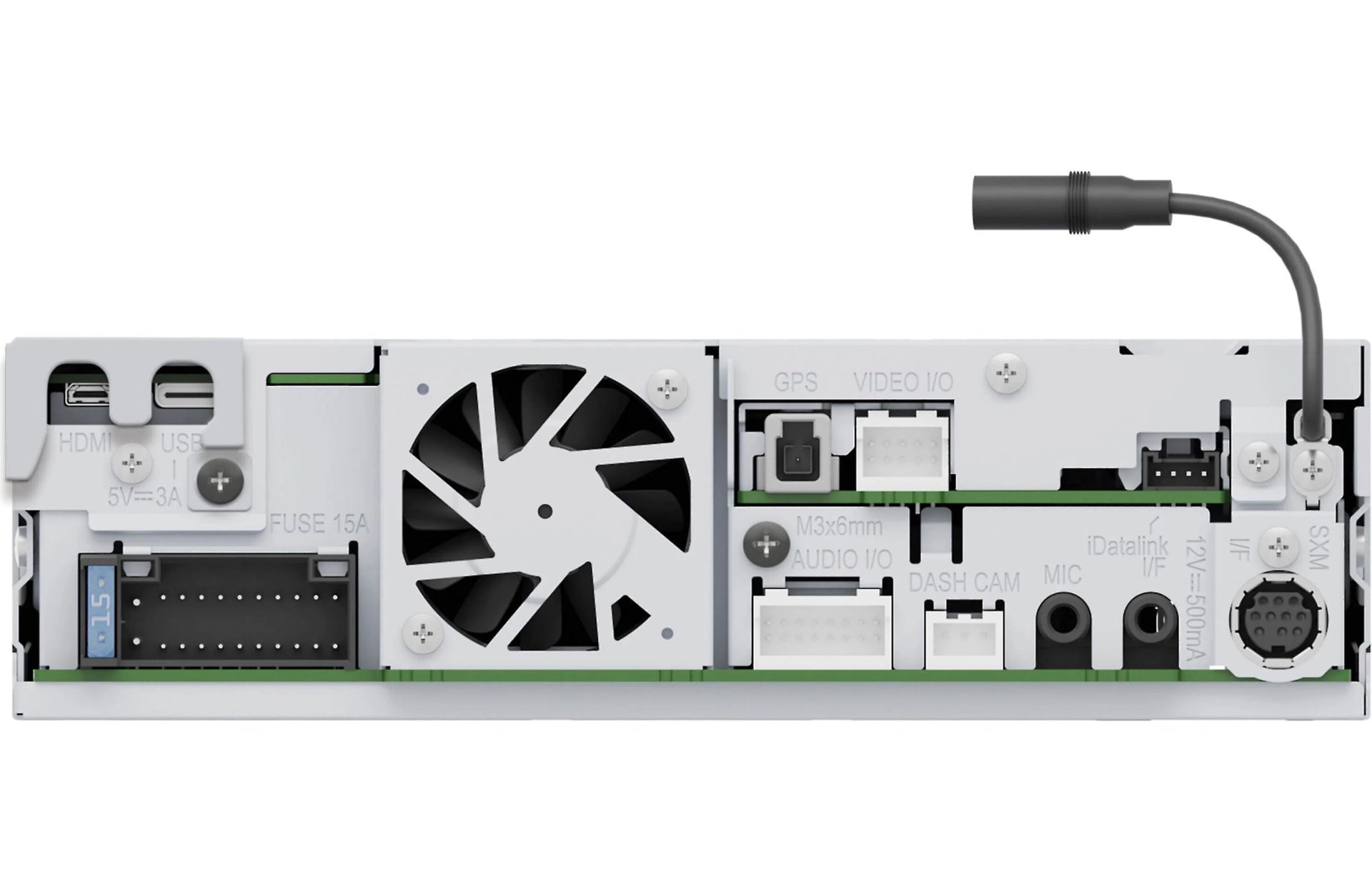

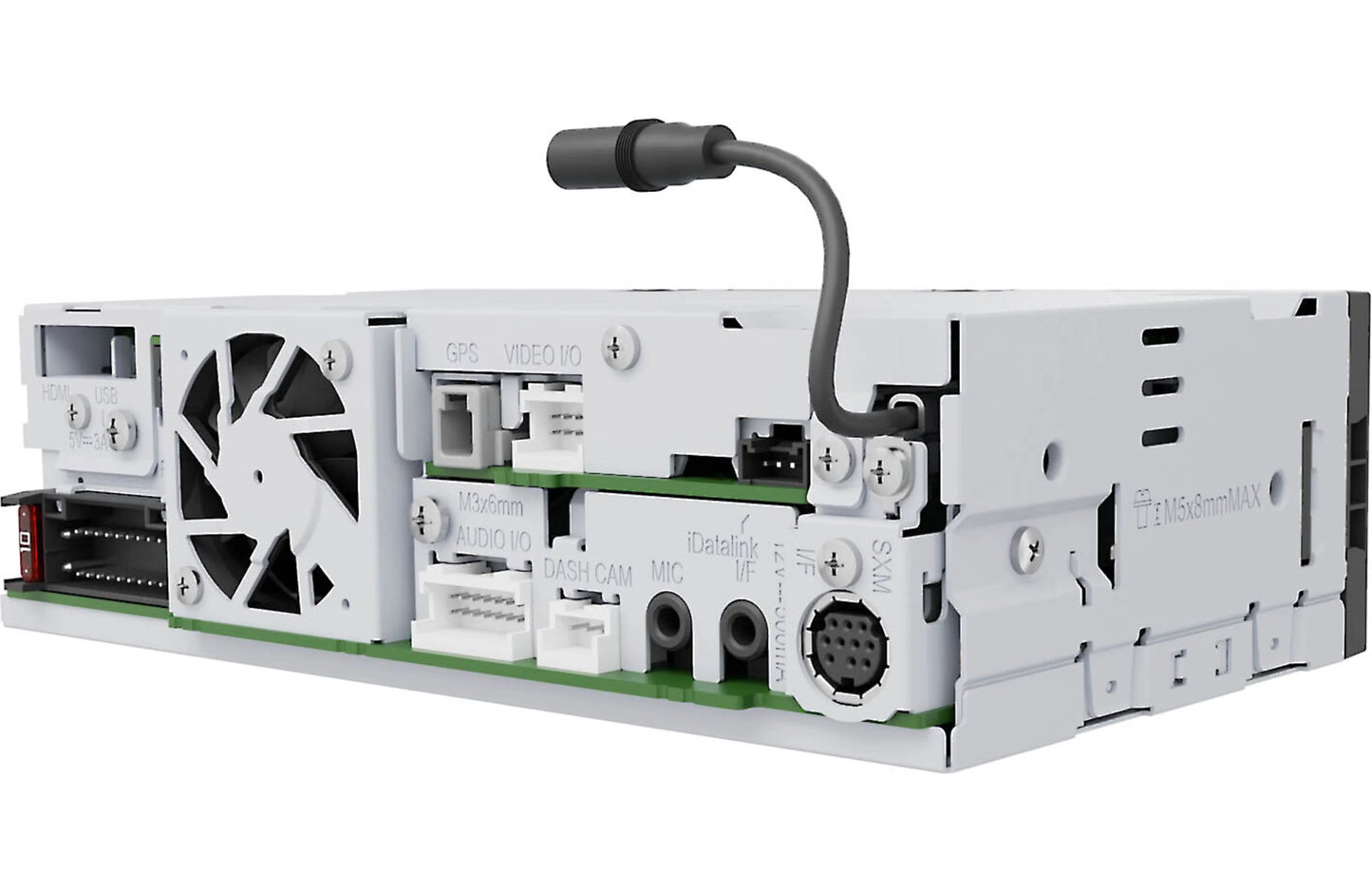

• Inputs (chassis): USB-C input, four camera inputs (HD front or rear), HDMI Type-D input
• Outputs: 6-channel preamp outputs (5-volt front, rear, sub), digital optical output to connect select digital signal processors

Other information:

• Built-in amplifier (22 watts RMS/50 peak x 4 channels)
• Works with iDatalink Maestro RR or RR2 modules
  • Works with iDatalink ADS-MIC1 interface to retain factory microphone
  • Retains factory features in a wide selection of vehicles
  • Displays engine performance and pitch-and-roll data on display
• Warranty: 2 years
• Our 30-day money back guarantee
• MFR # DAX800XR

What's In The Box:

Kenwood Excelon DAX800XR owner's manual

• 8" Touchscreen monitor
• Source unit
• Remote control (RC-DV240)
• CR2025 3V battery (pre-installed in remote)
• Preout/Aux harness
• Vide/Camera harness
• USB-C to USB-A adapter
• 40" USB-C extension cable
• GPS antenna (attached 11.5' cable terminated by a proprietaery connector)
• Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
• 57" IR receiver cable
• Self-adhesive pad
• Two-side tape
• Screw
• Startup Guide
• Warranty Information
• Support Card
